14

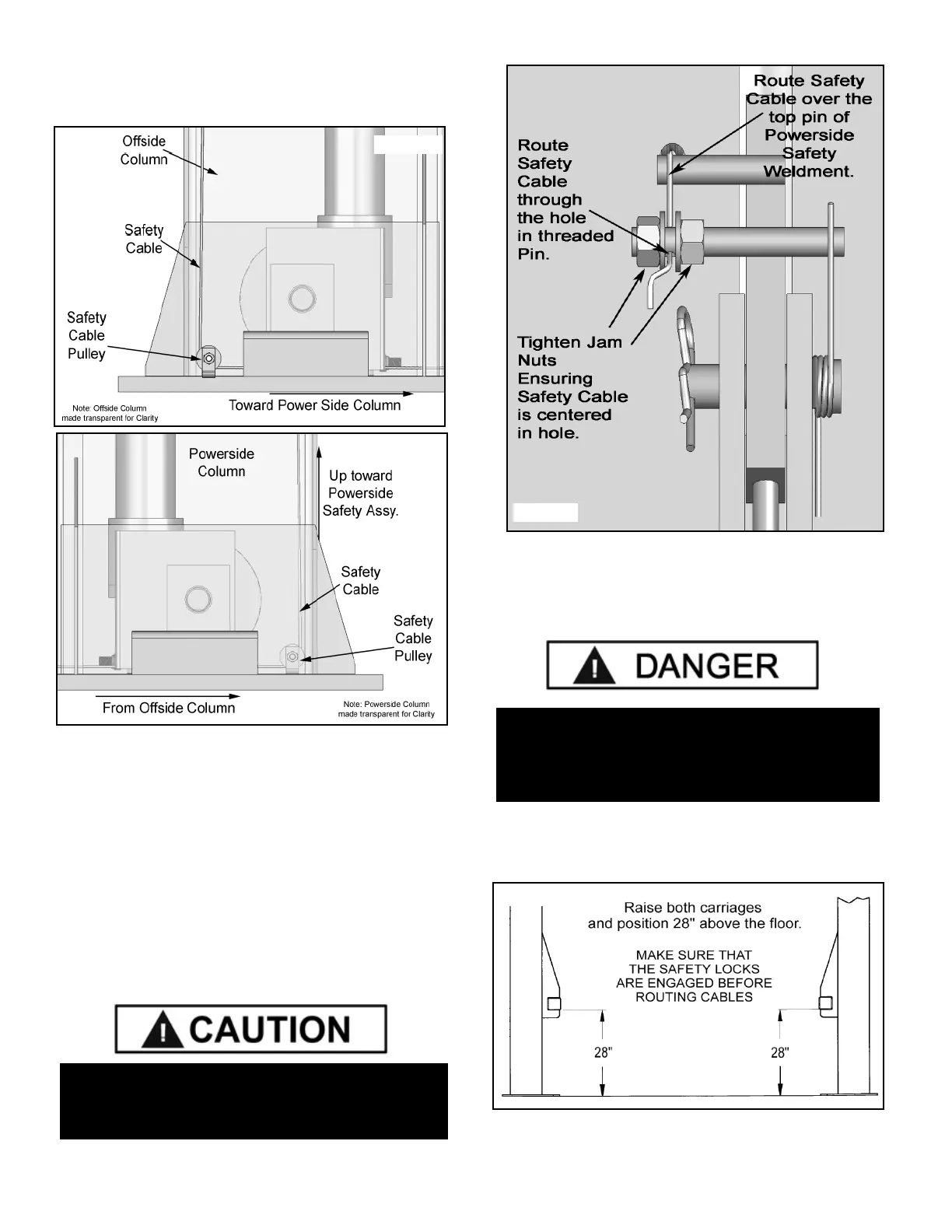

4. Route the Safety Cable through the Base Plate Safety
Cable Pulley(s) and across the floor towards the Powerside
Columns. (See Figs 8.5 & 8.6)
5. Route the Safety Cable up the Power Side Post
going towards the Power Side Safety Cable Pulley.
6. Route the Safety Cable over the Power Side Safety
Cable Pulley, through the hole in the Column and over the
top pin on the Safety Handle. Insert the Cable end through
the hole on the threaded Pin. (See Fig 8.7)
7. Pull the slack out the Safety Cable and hold tension
as the Cable is being tightened.. Tighten Jam Nuts on
either side of the Cable to secure it into place.
(See Fig 8.7)
8. Operate the Power Side Safety handle, check for
Proper Operation of both Safety Assemblies and adjust
Cable tension as required.
9. Raise and lock each carriage approximately 28” above
the ground. (See Fig. 8.8)
CAUTION!
Make sure to tighten both nuts equally so as to
keep the safety cable centered
DANGER !
ENSURE THAT BOTH THE
POWERSIDE & OFFSIDE SAFETIES ENGAGE
PROPERLY PRIOR TO LIFT OPERATION.
Fig 8.6.
Fig 8.7
Fig 8.5
Fig. 8.8
