Benford 2000 - 2, 3, 4, 5 and 6 Tonne Dumpers - Swing Skip

June 2004 - 9507EI/5
1-3
2 to 9 Tonne Dumper Instruction Manual

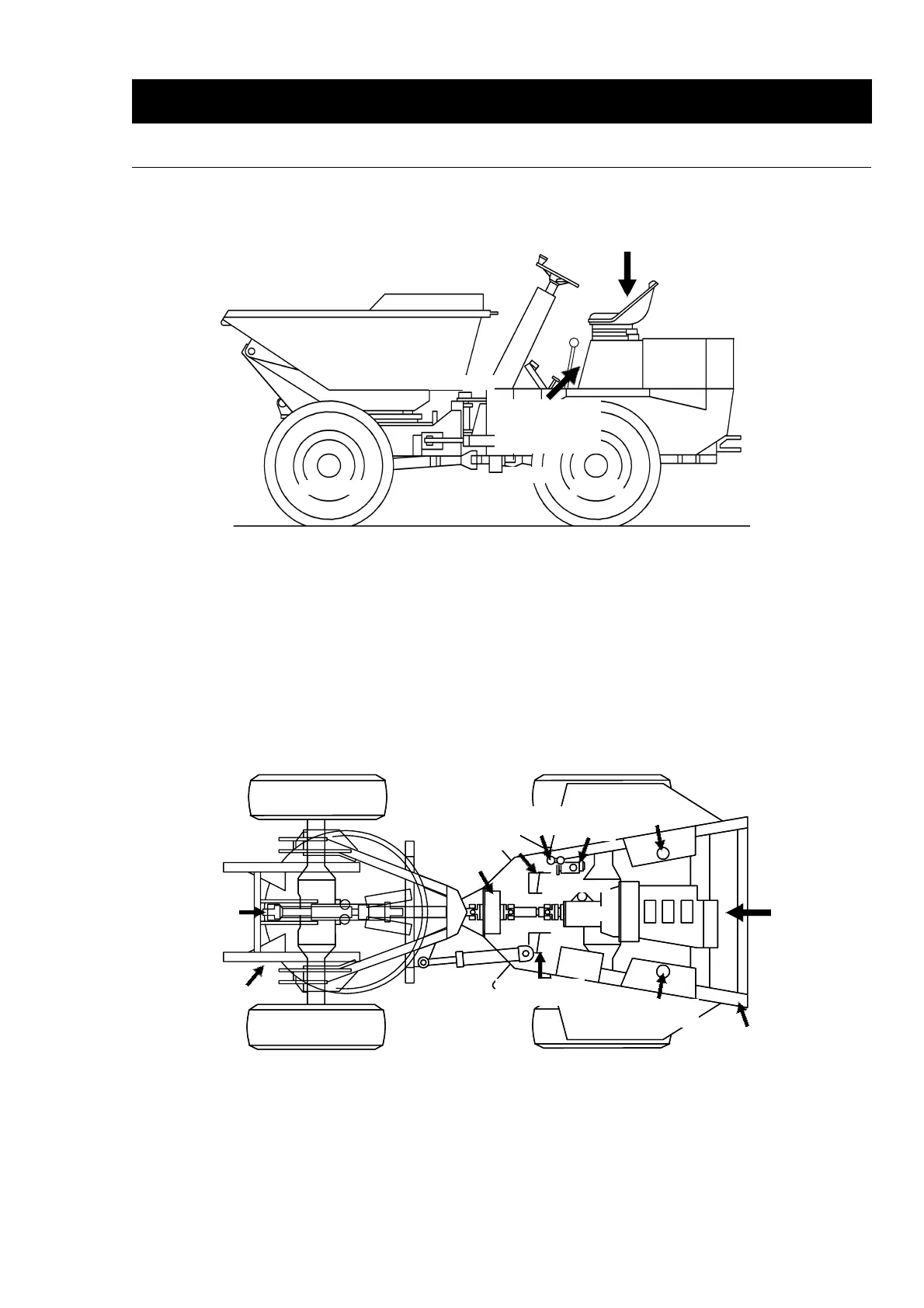

Machine Data
2, 3, 4, 5 and 6 Tonne Dumpers - Swing Skip
Battery
Steer Ram
Slew Ram
Skip Ram
Skip Pivot
Slew Ring
Engine
Front Chassis
Transfer
Box
Accelerator
Pedal
Brake
Pedal
Brake
Master
Cylinder
Fuel Tank
Filler
Filler /
Dipstick
Skip Pivot
Slew Ram
Clutch Pedal
(2 & 3 Tonne Only)
Gearbox
Rear Chassis
Hydraulic
Tank Filler
Front Axle Filler
& Drain Plug
Rear Axle
Filler &
Drain Plugs
Engine
Canopy
Gear
Lever
Steering
Wheel
Seat
Handbrake & Skip
Control Lever
Seat
Support
Tow
Bracket
Skip
Instruction
Manual Holder
Centre
Pivot
Engine Stop
2-3 Tonne Lister
5-6 Tonne Deutz
Front Axle
Propshaft
Propshaft
Rear Axle
