June 2004 - 9507EI/5
1-26
2 to 9 Tonne Dumper Instruction Manual
2000 to 7000 ROP's and FOP's
The ROP's on the 9000 dumper is pivoted at seat level to allow
the ROP's to be lowered to reduce the transportation height - not
the working height. This is also an option on the 2000 to 7000
dumpers.
On the 9000 model, a gas strut is fitted to the ROP's to assist the
Operator when lifting the ROP's into its working position or
lowering it into its travelling position.
9000 machines fitted with with a FOP's have TWO gas struts,
one either side.
Only Lower ROP's when Transporting Dumper on a Lorry / Trailer
Work Position
z Remove the two 'R' clips from the locking pins, one either
side, and remove the pins.
z Lift the ROP's into the vertical, working position and secure
by fitting the pins as shown.
z Secure the pins in position using the 'R' clips.
ROPS - Round Section 2000 to 9000
Travelling Position
z Remove the two 'R' clips from the locking pins, one either
side, and remove the pins.
z Lower the ROP's into the travelling position and secure by
fitting the pins as shown.
z Secure the pins in position using the 'R' clips.
Maintenance
z Check the securing pins are free from damage and are
serviceable.
z Regularly grease the pins to ensure ease of fitting and
removal.
See Safety Section at the Front of this Manual

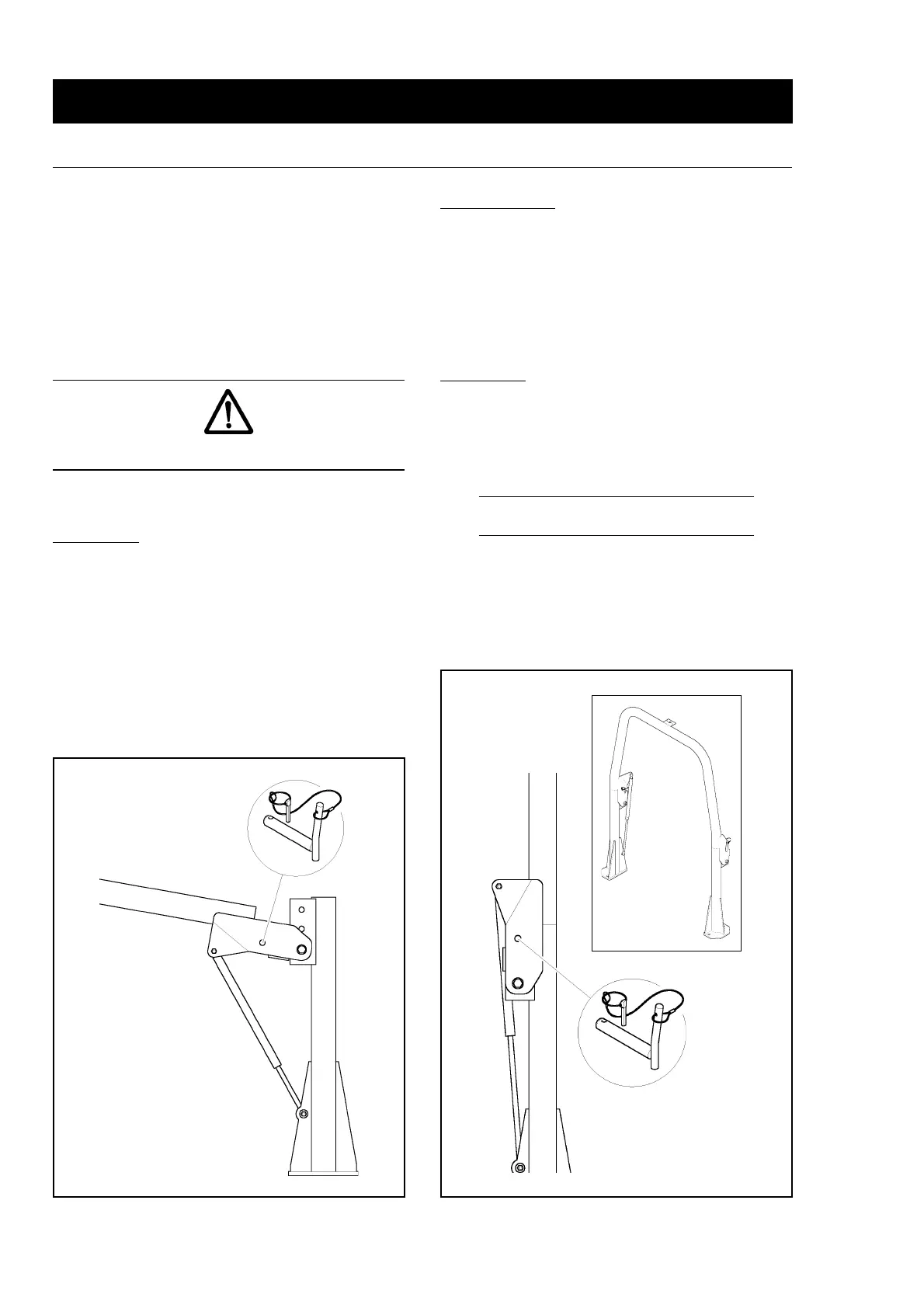

Pin and 'R' Clip with
ROPS in Work Position
Pin and 'R' Clip
with ROPS in
Travelling Position
