Benford 2000 - Skip Prop Instructions

June 2004 9507EM/5
2-6
2 to 9 Tonne Dumper Instruction Manual
Maintenance

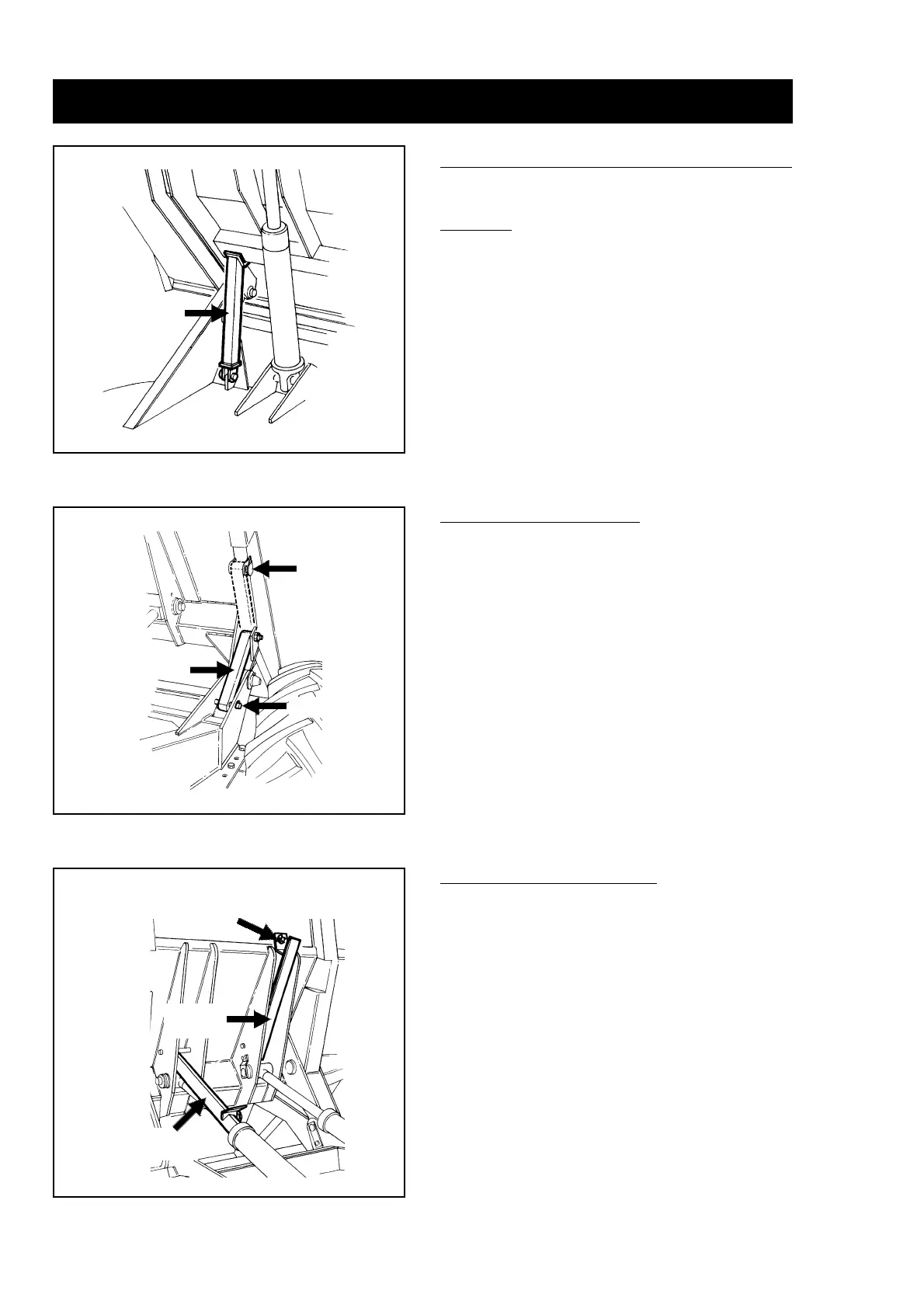

Skip Prop Instructions
Swing Skip
z Elevate the skip fully and lift the skip prop into its upright
position
z Lower the skip until the skip prop supports the skip
2, 3 and 4 Tonne Straight Skip
z Elevate the skip fully and remove the grip clip from the pin
securing the prop in its storage position
z Remove the pin and lower the prop until the hole in the prop
and chassis are aligned
z Push the pin through the holes and secure with the grip pin
z Lower the skip until the skip prop supports the skip
z When replacing the prop in its storage position ensure the
pin is fitted from the outside to prevent it fouling on the
front chassis
5, 6, 7 and 9 Tonne Straight Skip
z Elevate skip fully and remove the linch pins securing the
props in their storage position
z Lower both props gently onto the extended rams
z Lower skip until skip props support the skip
Pin
Skip Prop
Pin
Linch Pin
Skip Prop
Stored
Skip Prop in
Prop Position
Skip Prop
