June 2004 - 9507EI/5
1-25
2 to 9 Tonne Dumper Instruction Manual
9000 ROP's and FOP's

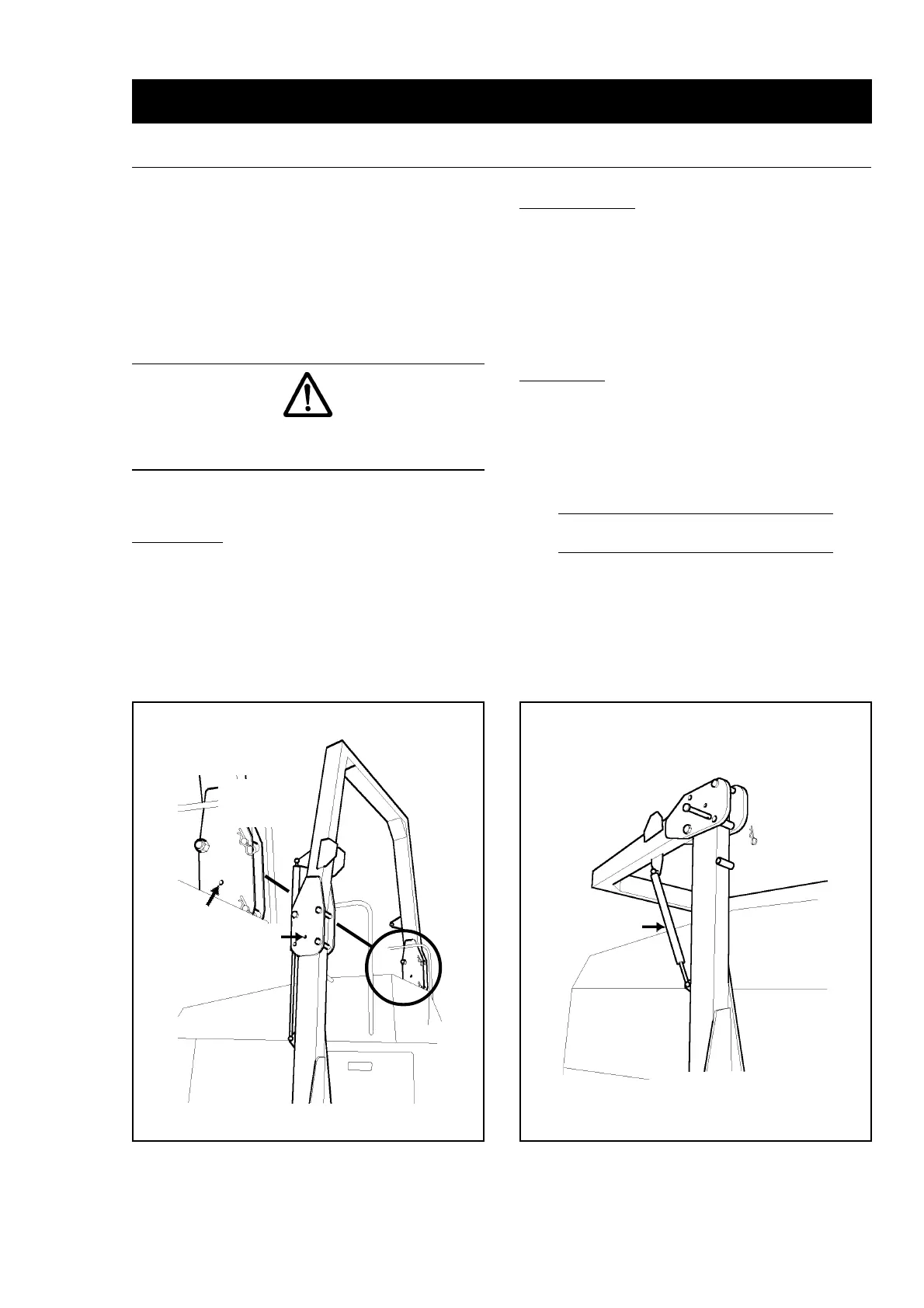

The ROP's on the 9000 dumper is pivoted at seat level to allow
the ROP's to be lowered to reduce the transportation height - not
the working height.
A gas strut is fitted to the ROP's to assist the Operator when
lifting the ROP's into its working position or lowering it into its
travelling position.
Machine fitted with with a FOP's have TWO gas struts fitted,
one either side.
Only Lower the ROP's / FOP's when
Transporting Dumper on a Lorry / Trailer
Work Position
z Remove the four 'R' clips from the locking pins, two either
side, and remove the pins.
z Lift the ROP's into the vertical, working position and secure
by fitting the four pins as shown.
z Secure the pins in position using the 'R' clips.
Outer
Grease
Nipple
Inner
Grease
Nipple
Pins Shown
in Work
Position
Travelling Position
z Remove the four 'R' clips from the locking pins, two either
side, and remove the pins.
z Lower the ROP's into the travelling position and secure by
fitting the four pins as shown.
z Secure the pins in position using the 'R' clips.
Maintenance
z Check the securing pins are free from damage and are
serviceable.
z Regularly grease the four mating, pivoting surfaces of the
ROP's using the four grease nipples provided in the upper
frames pivot plates.
See Safety Section at the Front of this Manual
ROPS - Rectangular Section 9000 Only
Pins In Travel Position
'R' Clip
Gas Strut
Pin
