June 2004 9507EM/5
2-29
2 to 9 Tonne Dumper Instruction Manual

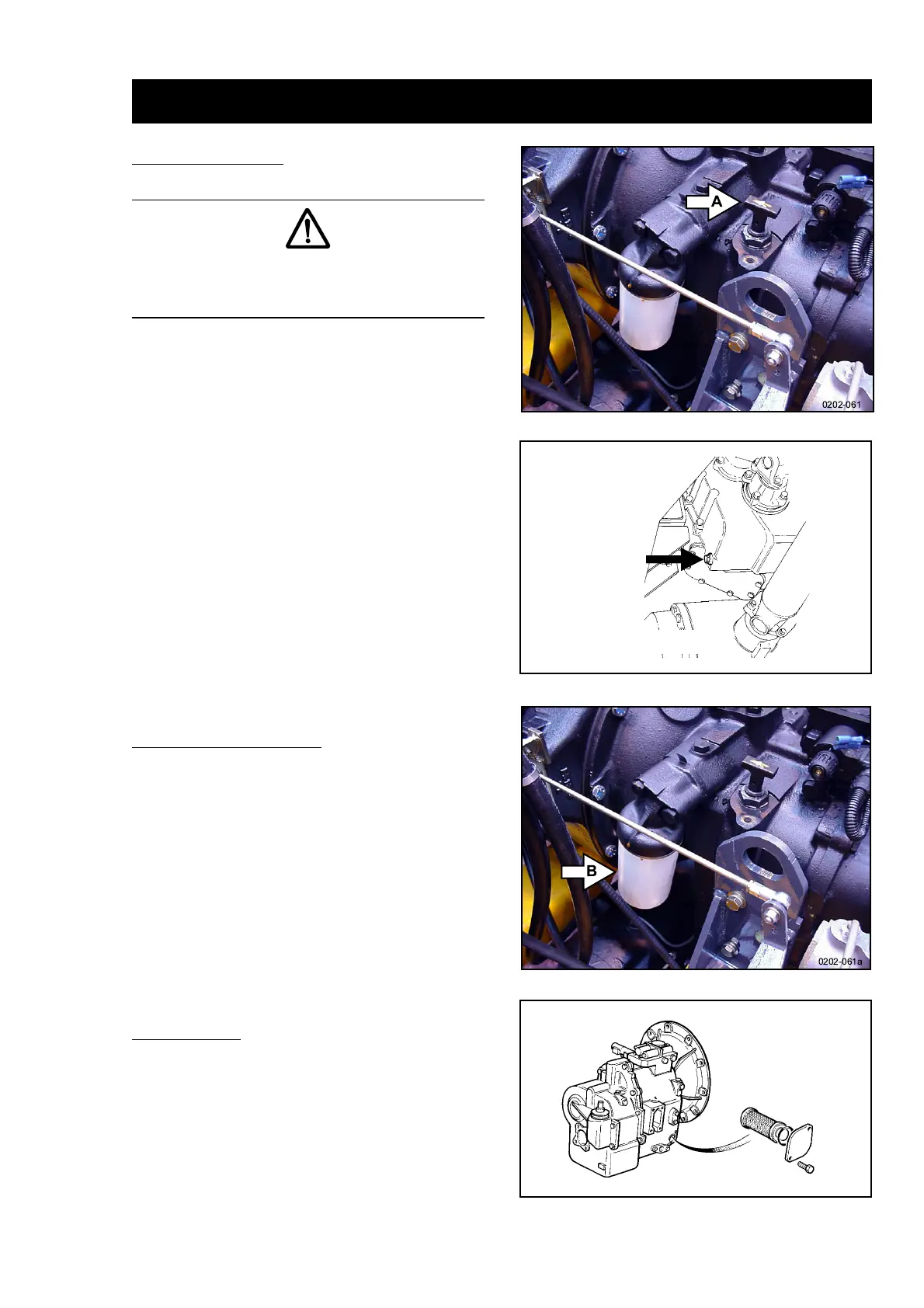

Turner Shuttle Gearbox
If Towed, Disconnect Top Drive Propshaft to Prevent
Gearbox Oil Starvation Failure to Observe this
Instruction May Cause Extensive Gearbox Damage
The only routine maintenance required is weekly checking of
gearbox oil level using the screw in dipstick (A) accessed
through the removable cover plate to left of gearlever, and
changing oil at the specified intervals, as detailed in the
Maintenance section.
When draining gearbox oil the oil should be warm but not hot!.
Ensure container used to drain the oil into is of sufficient
capacity to hold the oil.
The oil should initially be changed between the first 25 and 100
hours running time, also the filter should be changed and the
suction strainer cleaned. Thereafter, regular oil and filter changes
are recommended at 750 hour intervals.
Renewing Gearbox Oil Filter
z Thoroughly clean the area around the filter (B). Unscrew
the filter bowl (B) from the filter body and clean the contact
face of the filter body
z Smear rubber sealing ring on new filter with clean oil or
grease and screw the new filter (B) to the filter body. After
refilling the gearbox, drive the dumper and check for oil
leaks.
Use Hand Pressure to Tighten Filter
- Do Not Use ANY Mechanical Pressure
Suction Strainer
z Remove the two fixing bolts and withdraw the strainer.
z Wash the strainer, dry thoroughly.
z Refit to the gearbox using new seals.
Suction Strainer
Gearbox
Drain Plug
Rear Axle
Maintenance
0202-061
A
0202-061a
B
