2 to 9 Tonne Dumper Instruction Manual
Maintenance
ITL PowerShift Gearbox
0202-086a
A
B

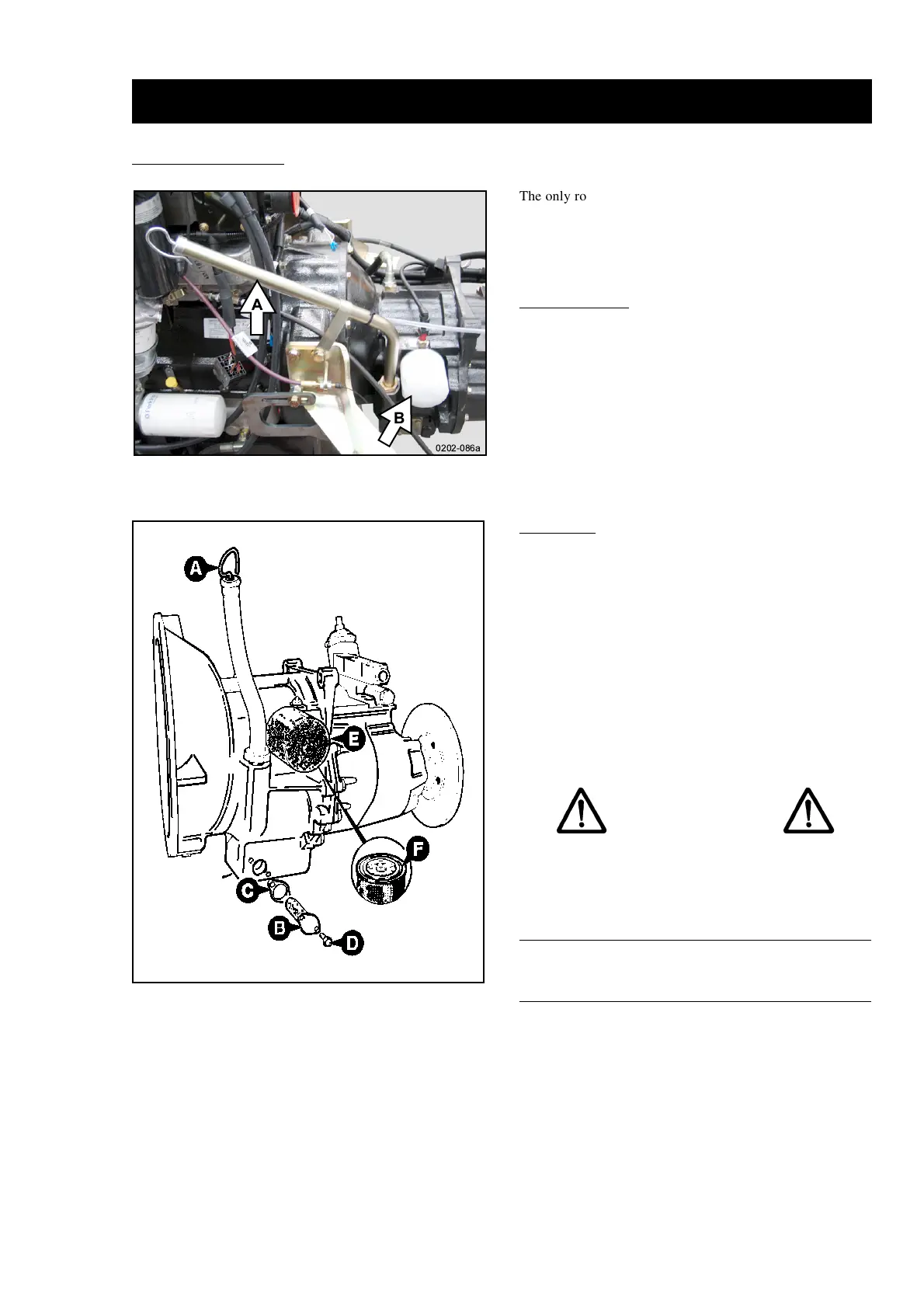

The only routine maintenance required is weekly checking of
gearbox oil level using the dipstick (A) accessed through the
right hand engine cover, and changing oil and filter (B) at the
specified intervals, as detailed in the Maintenance section.
Checking Oil Level
Drive the machine for approximately one minute. Stop the
engine and check the gearbox oil level, within one minute of
stopping the engine, using the dipstick.
Changing Oil
When draining gearbox oil the oil should be warm but not hot!.
Ensure container used to drain the oil into is of sufficient
capacity to hold the oil.
Drain oil by removing the strainer 'B'. Clean strainer 'B' using a
suitable solvent.
When refitting strainer 'B', renew gasket 'C' and apply Loctite
242 to bolts 'D'.
Before fitting a new filter 'E', smear seal 'F' with transmission
oil. Screw the new filter onto the gearbox and tighten using
hands only.
TOWING
The machine may be towed for a maximum distance of 1 mile
at speeds of less than 25kph (15mph).
For distances greater than 1 mile, the machine should be
placed on a trailer or lorry.
DO NOT REMOVE THE PROPSHAFTS -
THE HANDBRAKE WILL BE DISABLED
