BenQ MX813ST - Projector Exterior View

Introduction
9

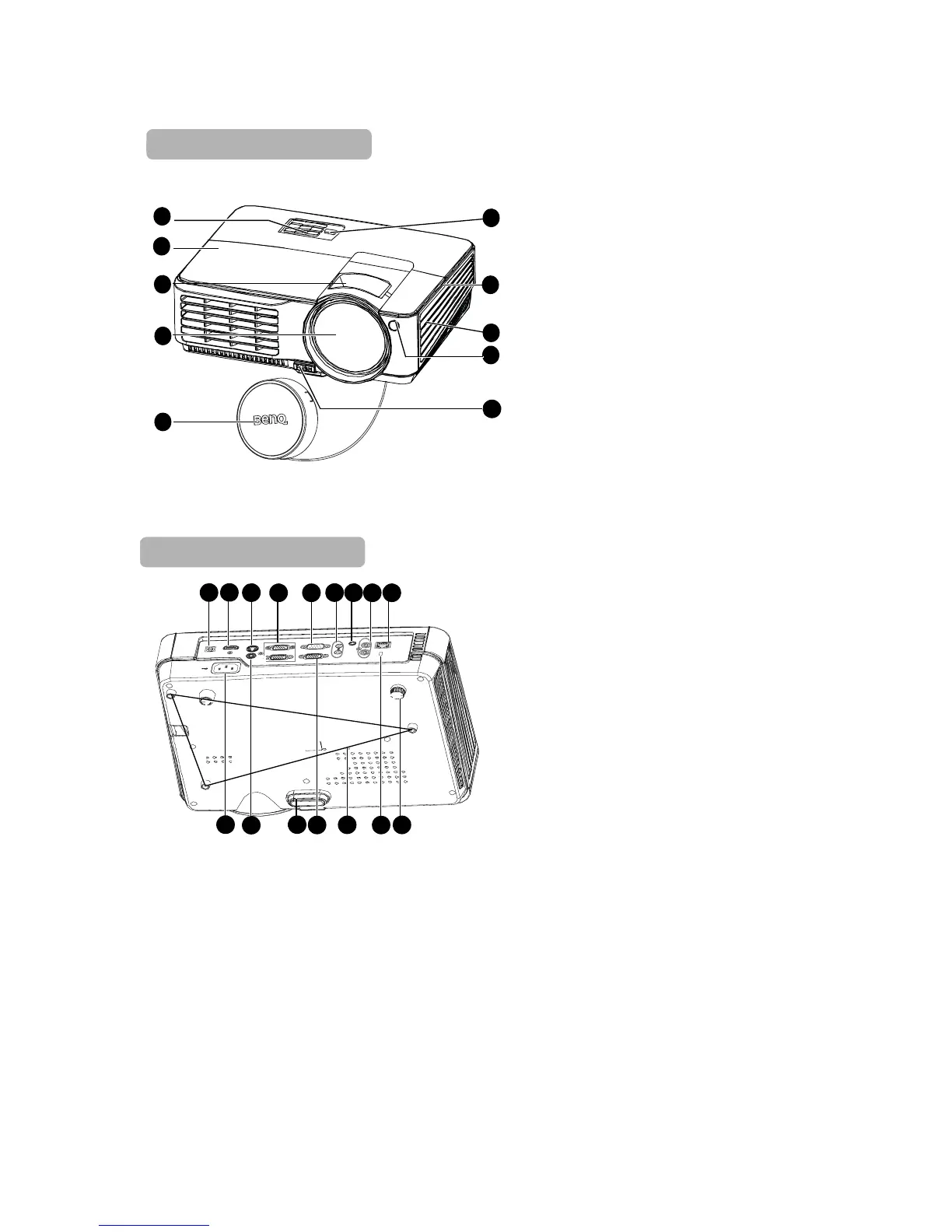

Projector exterior view
1. External control panel
(See "Projector" on page 10 for
details.)
2. Lamp cover
3. Focus ring
4. Projection lens
5. Lens cover
6. Top IR remote sensor
7. Vent (heated air exhaust)
8. Speaker
9. Front IR remote sensor
10. Quick-release button
11. USB B type jack
12. HDMI input jack
13. S-Video input jack
14. RGB (PC)/Component video
(YPbPr/ YCbCr) signal input jack
15. RS-232 control port
16. Audio input jack
17. Audio output jack
18. Audio (L/R) input jack
19. RJ45 LAN input jack
20. Rear adjuster foot
21. Kensington anti-theft lock slot
22. Ceiling mount holes
23. RGB signal output jack
24. Video input jack
25. AC power cord inlet
Front/upper side
1
2
3
4
5
6
7
8
9
10
Rear/lower side
12
1514
13 17
19
22
10
1611
18
21 2023
24
25
