Q7T3(AUO Panel) LCD Monitor Service Guide

Circuit Operation Theory

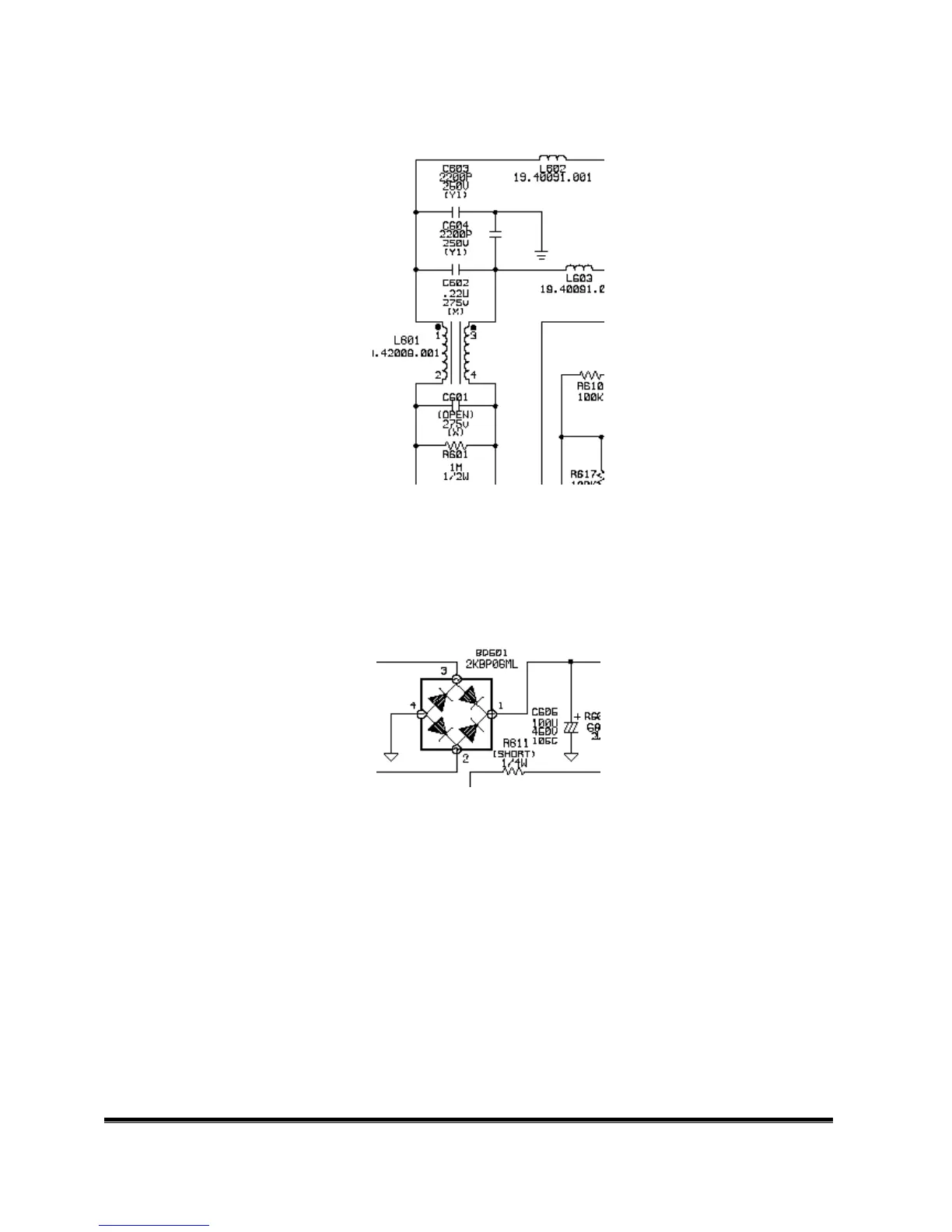

Fig. 2

#2 Rectifier and filter

AC Voltage (90-264V) is rectified and filtered by BD601, C605 (See Fig 3) and the DC Output

voltage is 1.4*(AC input). (See Fig.3)

Fig. 3
