Connecting audio/video signals
Pay attention to the following notes when you connect cables:
• Please turn off all devices.
• Familiarize yourself with the audio/video ports on the display and the devices you want
to use. Be aware that incorrect connections may adversely affect picture quality.
• Do not remove cables from the ports by pulling the cable itself. Always grasp and pull
the connectors at the end of the cable.
• Ensure that all cables are fully inserted and firmly seated.
Connecting the VGA input

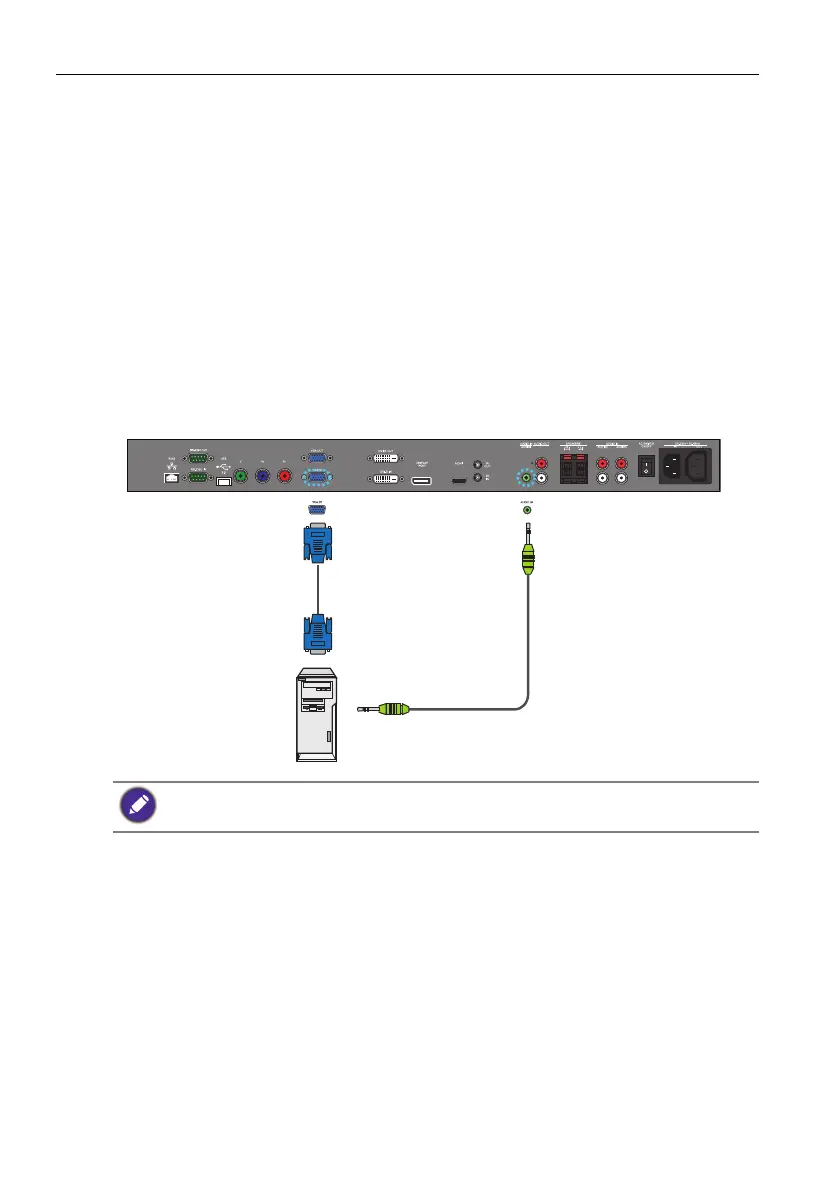

1. Connect the VGA IN jack on the display to the VGA output jack on a computer using
a D-Sub (15-pin) cable.
2. Connect the computer’s audio output jack to the
AUDIO IN (AUDIO1) jack on the
display using a suitable audio cable.
3. To view images from this input, press the VGA button on the remote control.
The audio cable is not supplied and should be purchased separately.
D-Sub (15-pin) cable
Audio cable
Computer
