Setting up the display20

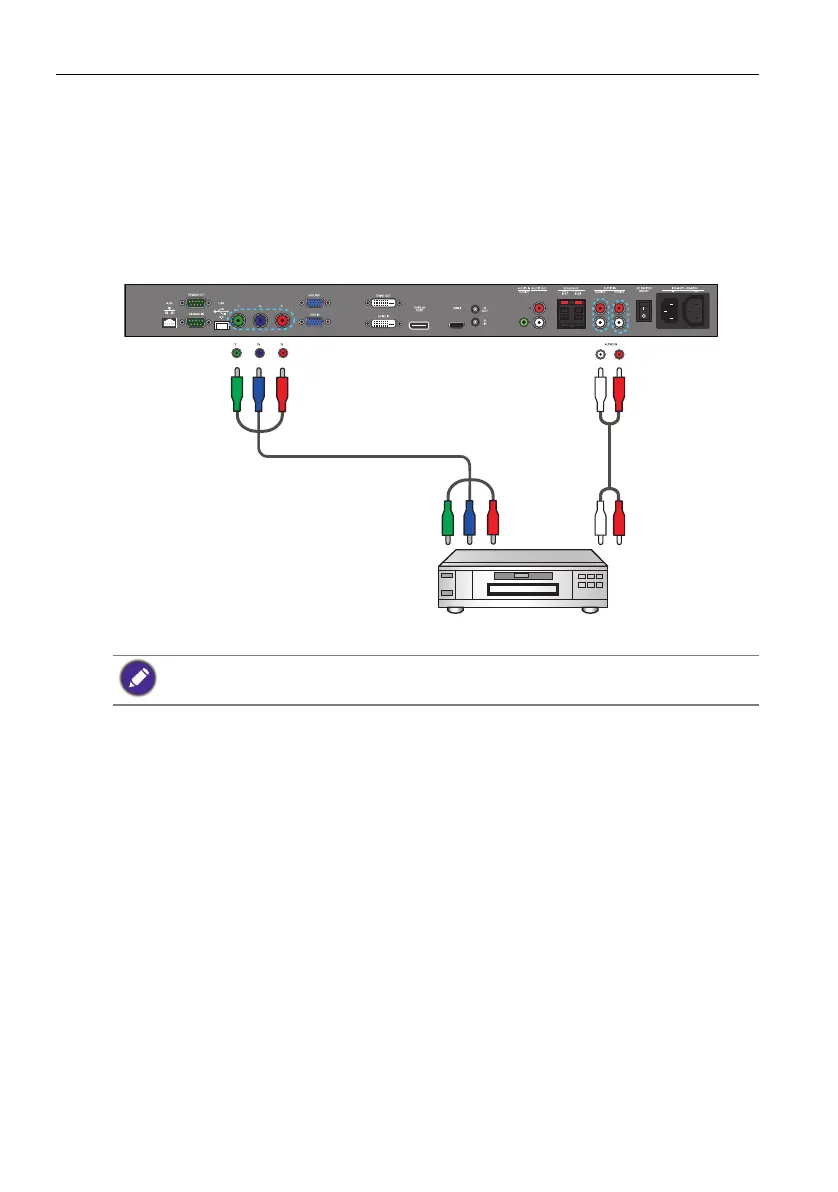

Connecting the YPbPr component video input
1. Connect the VIDEO IN (COMPONENT) jacks on the display to the component
output jacks on an A/V device (such as a VCR or DVD player) using a component
video cable.
2. Connect the DVD player’s audio output jacks to the AUDIO IN (AUDIO2 or
AUDIO3) jacks on the display using a suitable audio cable.
3. To view video image from this input, press the YPbPr button on the remote
control.
The cables are not supplied and should be purchased separately.
Audio cable
DVD player / VCR
Component video cable
