Positioning your projector 16
Adjusting the projected image
Adjusting the projection
angle

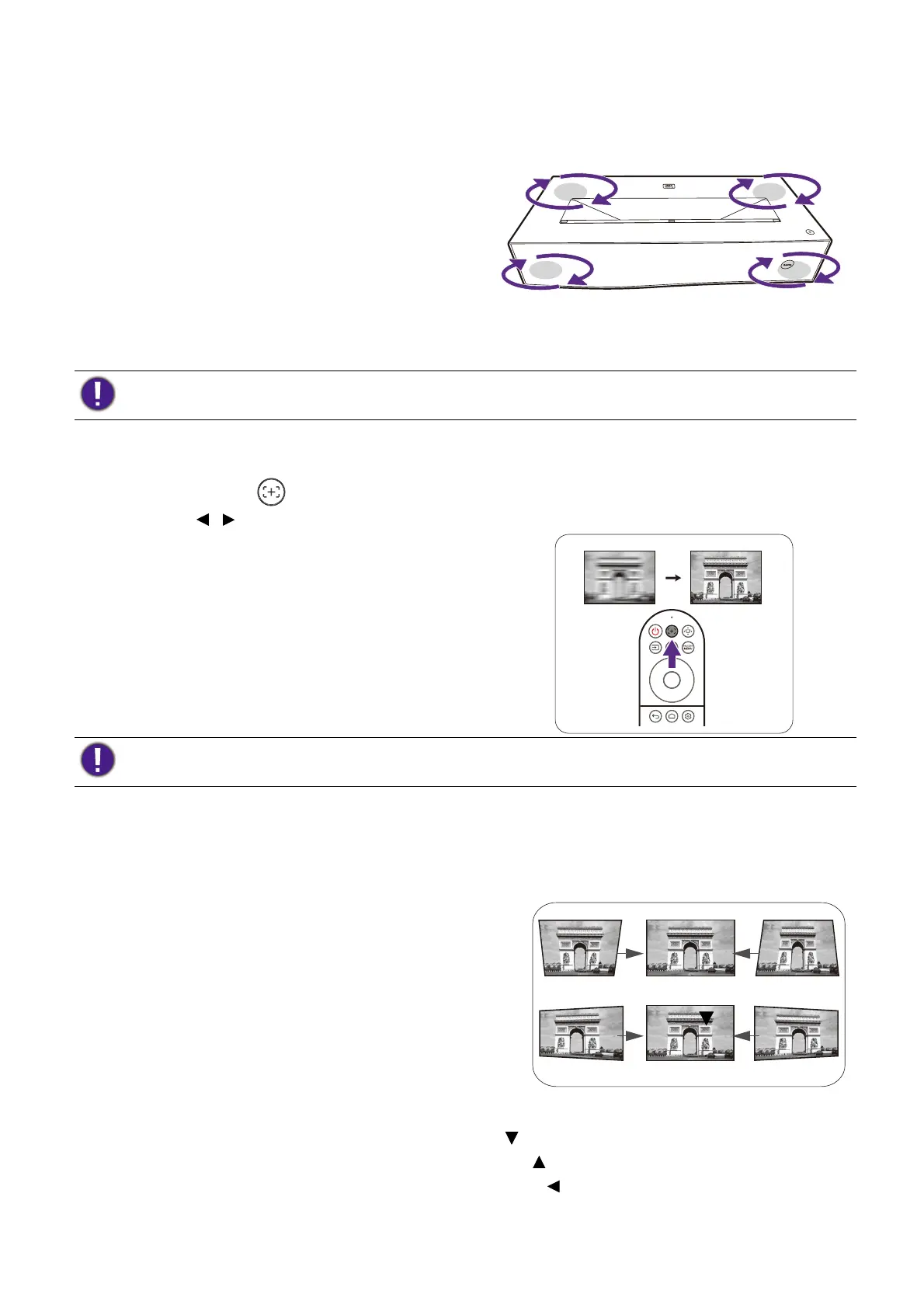

If the projector is not placed on a flat
surface or the screen and the projector are
not perpendicular to each other, the
projected image becomes trapezoidal. You
can rotate the adjuster feet to fine-tune the
image.
To retract the feet, rotate the adjuster feet in a reverse direction.
Fine-tuning the image clarity
Press the focus button on the remote control to open the Manual Focus menu and
then use / to adjust the focus settings.
Correcting keystone
Keystoning refers to the situation where the projected image becomes a trapezoid due to
angled projection.
To correct the distorted image:
1. Display the 2D Keystone correction sub-menu
from the following menus.
• The setup wizard during the projector initial setup
• The Screen Adjustment menu in the Basic settings
menu
• The Installation > Screen Adjustment menu in the
Advanced settings menu.
2. After the 2D Keystone correction page
appears:
• To correct keystoning at the top of the image, use .
• To correct keystoning at the bottom of the image, use .
• To correct keystoning at the right side of the image, use .
Do not look into the lens while the light source is on. The strong light from the light source may cause
damage to your eyes.
You can also access the Manual Focus menu from the Installation > Screen Adjustment menu in the
Advanced settings menu.
