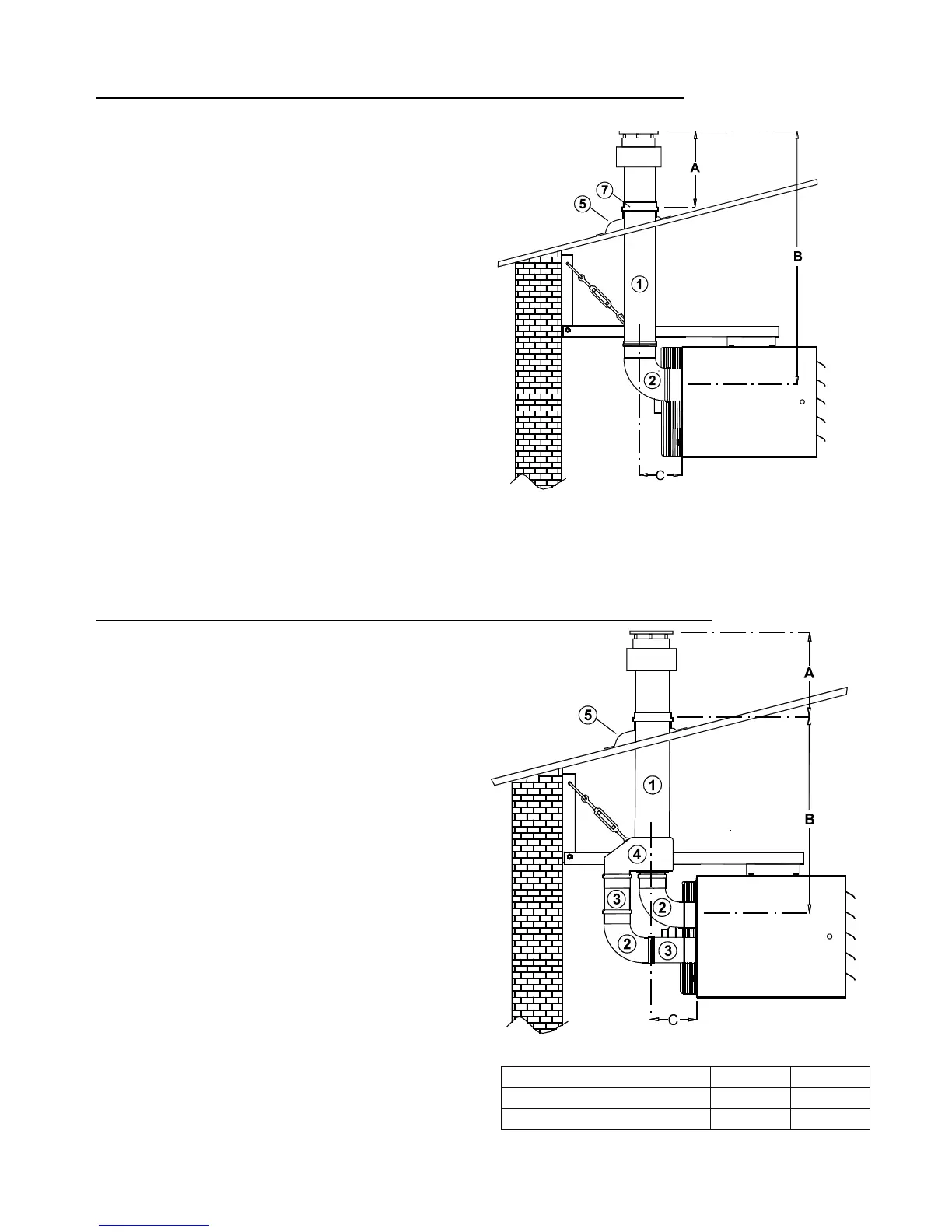

Example of a vertical concentric flue kit through
the roof .
Flue (ø 80/125) comprises of a terminal pipe (1)
and a 90° concentric elbow (2).
The roof seal (5) and a roof cravat (7) which slides
over the seal The minimum length the terminal
should extend through the roof is 250mm (A). The
length of the terminal connected to the heater is
1195mm (B) the center line for the flue the rear of
the heater (C) is 125 mm.
It is possible to shorten or lengthen the flue
terminal with the range of accessories shown on
page 15
6-3 Recommended vertical flue connections C32 - for VRA065/090/110
WARNING
The flue pipe must be properly supported and all joints sealed and made air tight, the maximum length for a
horizontal flue must not exceed 8 meters overall length a 45 or 90 deg bend is equivalent to 1 meter of flue
within the 8 meters
Example of a vertical concentric flue kit through the
roof .
Flue(ø 100/100 ) for VRA140
-1 Concentric terminal (1)
-3 Bend 90° 100 mm diameter (2)
-1 Pipe 250 mm x 100 mm diameter (3)
Kit ø 130/130) for VRA170/220/285
-1 Concentric terminal (1)
-2 Bend 90° 130 mm diameter (2)
-1 Bend 45° 130 mm diameter (not shown)
-1 pipe 250 mm x 130 mm diameter (3)
-1 concentric adaptor piece (4)
When longer flues are required a range of accessories
are available see page 15.
WARNING
The flue pipe must be properly supported and all joints
sealed and made air tight, the maximum length for a
horizontal flue must not exceed 8 meters overall length a
45 or 90 deg bend is equivalent to 1 meter of flue within
the 8 meters
6-4 Recommended vertical flue connections C32 for VRA 140/170/220/285
Dim A 545 mm 955 mm
Dim B 930 mm 1060 mm
Dim C 190 mm 205 mm
