BENSON VRA 065 - 5-1 Electrical Diagram VRA; 5 Wiring Diagrams

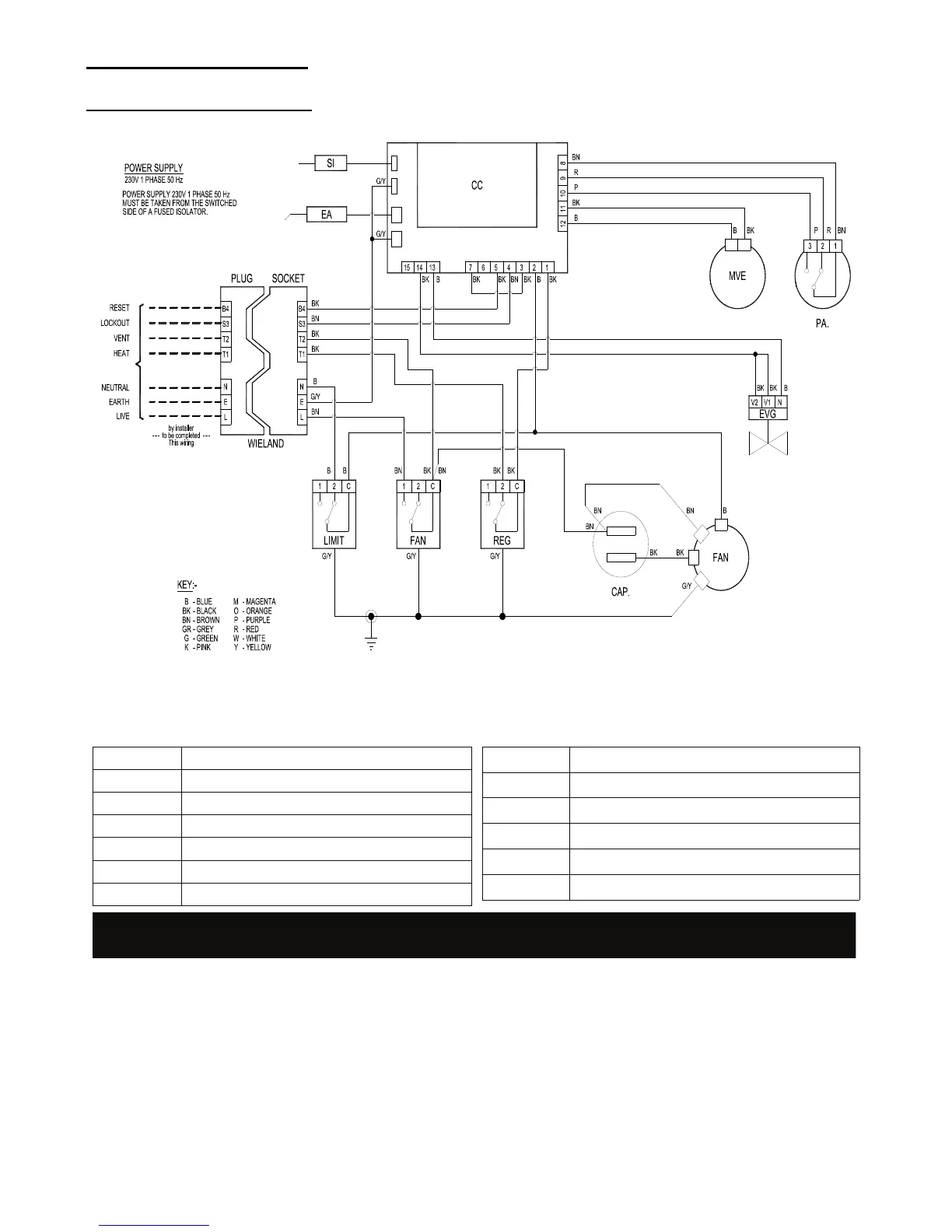

5-1 Electrical Diagram VRA
5– WIRING DIAGRAMS
WARNING EXTERNAL WIRING TO THE HEATERS MUST BE IN ACCORDANCE WITH ANY LOCAL NATIONAL
AND EUROPEAN REGULATIONS AND MEET THE REQUIREMENTS OF .IEE. REGULATIONS
FAN Fan
RFP Panel
Limit Limit stat manual reset
Fan Fan stat
Reg Control stat
CC Control Box
MVE Flue venter
PA Air pressure switch
SI Ionisation probe
EA Ignition electrode
EVG Gas valve
