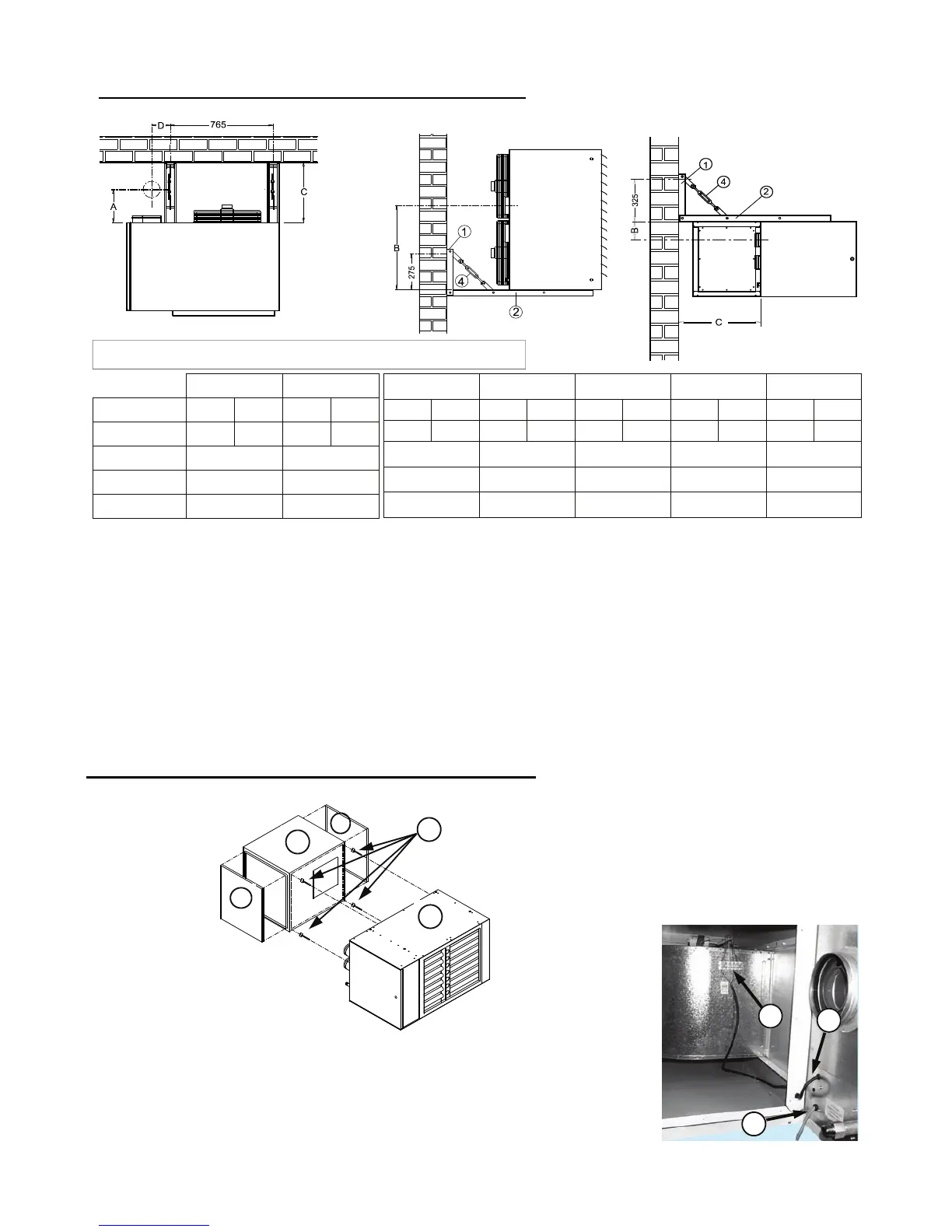

BENSON VRA 065 - Wall Mounting Dimensions VRA 220 - 285; 4 Assembly Instructions for Vrc Range

3-3 Installation for VRA 220 / 285 and VRC 140/ 170
1– Mount plate (1) with suitable masonry bolts to the wall at the required height.
2- Fit plate (2) to plate (1)
3- 3- Connect the two turnbuckles (4) to plate (1) and adjust until level.
4- Fit plate (3) to top of heater
5- Lift heater in place and secure plate (3) to plate (2) adjust to required position.
4– ASSEMBLY OF VRC RANGE FAN HOUSING
Electrical connection :
Pass the cable 5 through the grommet and wire
in to the fan connector strip 4.
Reconnect the side panels (1) and (2) to the
heater.
A – Fan Housing
B - Heater Case
Pre assembly :
- Remove the
panels (1 and
2 ) from the fan
housing
Assembly A and B :
- Assemble the fan housing A to
heater B, with the 4 screws M8 (3) supplied
Attention fit cable grommet , for the fan cable
(5), as per photograph.
A
1
2
B
3
4
5
6
Flue
VRA220 VRA 285
Connection B22 C32 B22 C32
A (mm) 135 205 135 205
B (mm) 460 645
C (mm) 460 460
D (mm) 120 135
4– VRA220/285 5– VRC 140/170
Warning Ensure support is adequate for heater
VRC 065
VRC090 VRC 110 VRC 140 VRC 170
B22 C32 B22 C32 B22 C32 B22 C32 B22 C32
115 125 115 125 115 125 125 190 135 205
160
160 185
200
250
585
585 585
585
585
105
105 105 105 105
