3– INSTALLATION OF HEATERS

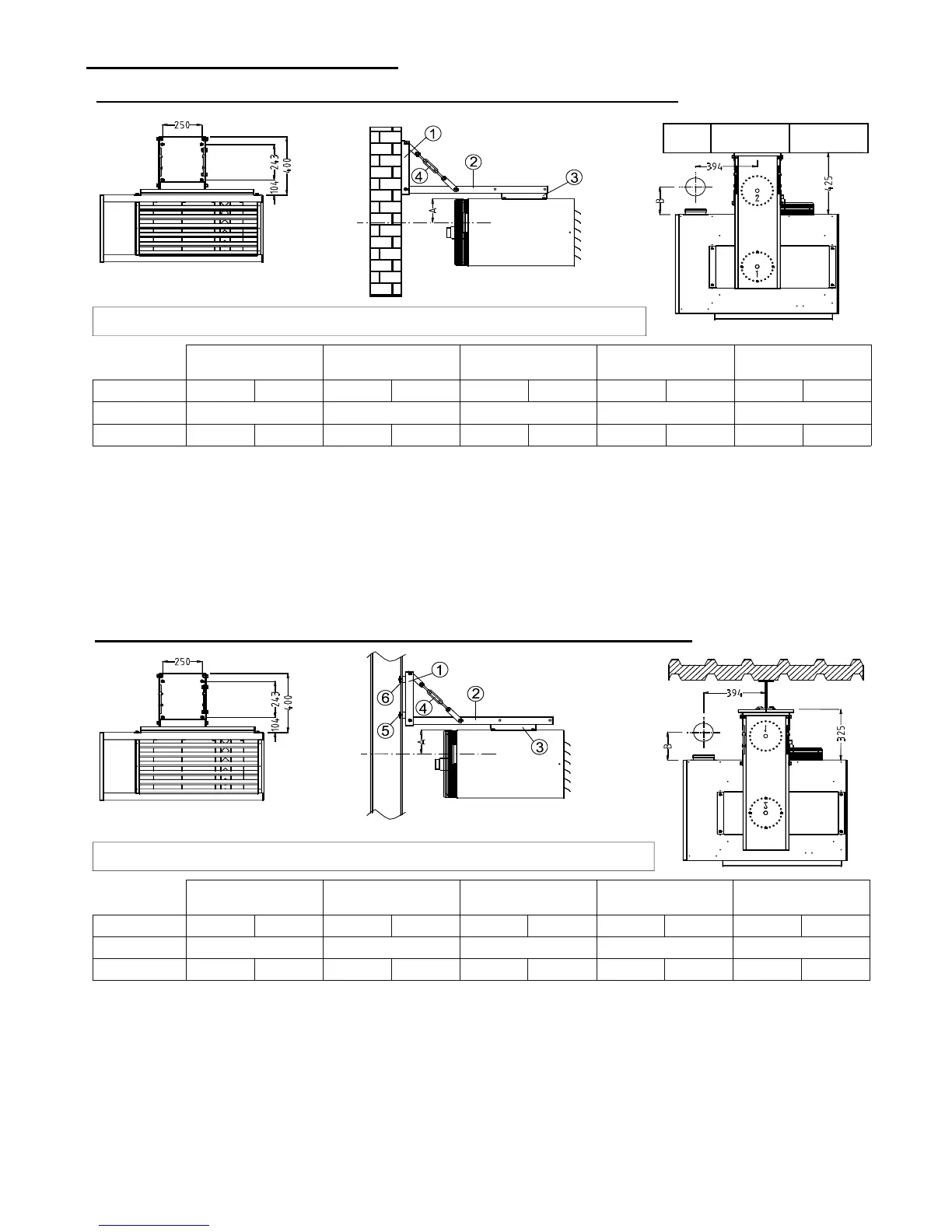

3-1 Wall mounting installation for VRA 065 to 285 and VRC 065 to 110
3-2 Girder mounting installation for VRA 065 to 285 and VRC 065 to 110
1- Mount plate (1) with suitable masonry bolts to the wall at the required height and level.
2- Fit plate (2) to plate (1) ensuring the plate is the correct way round see drawing below
NOTE there is one fitting for walls and one for girder support .
3- Connect the two turnbuckles (4) to plate (1) and adjust until level.
4- Fit plate (3) to top of heater
5- Lift heater in place and secure plate (3) to plate (2) adjust to required position
1- Fix the plate (1) to the girder using the adaptors (6) and bolts (5).
2- Fit plate (2) to plate (1) ensuring that it is the correct way round see drawing.
3- Connect the two turnbuckles (4) to plate (1) and (2) and adjust until level.
4- Fit plate (3) to top of heater
5- Lift heater in place and secure plate (3) to plate (2) adjust to required position
Warning ensure the girder is suitable to support heater weight
Warning ensure the wall is suitable to support heater weight
Flue
Connection
VRA VRC 065 VRA VRC 090 VRA VRC 110 VRA 140 VRA 170
Dimensions B22 C32 B22 C32 B22 C32 B22 C32 B22 C32
A (mm) 160 160 185 200
B (mm) 115 125 115 125 115 125 125 190 135 205
250
Flue
Connection
VRA VRC 065 VRAVRC 090 VRA VRC 110 VRA 140 VRA 170
Dimensions B22 C32 B22 C32 B22 C32 B22 C32 B22 C32
A (mm) 160 160 185 200
B (mm) 115 125 115 125 115 125 125 190 135 205
250
