7. Instructions Pump
7.1 SUNTEC AT2 45C, AT2 55C
Technical data
One or two-pipe system.
Viscosity range:: 2-12 mm
2
/s
Pressure range:: 8-25 bar
Rated voltage of coil: 220/240V 50/60 Hz
Oil temperature:: max 60°C

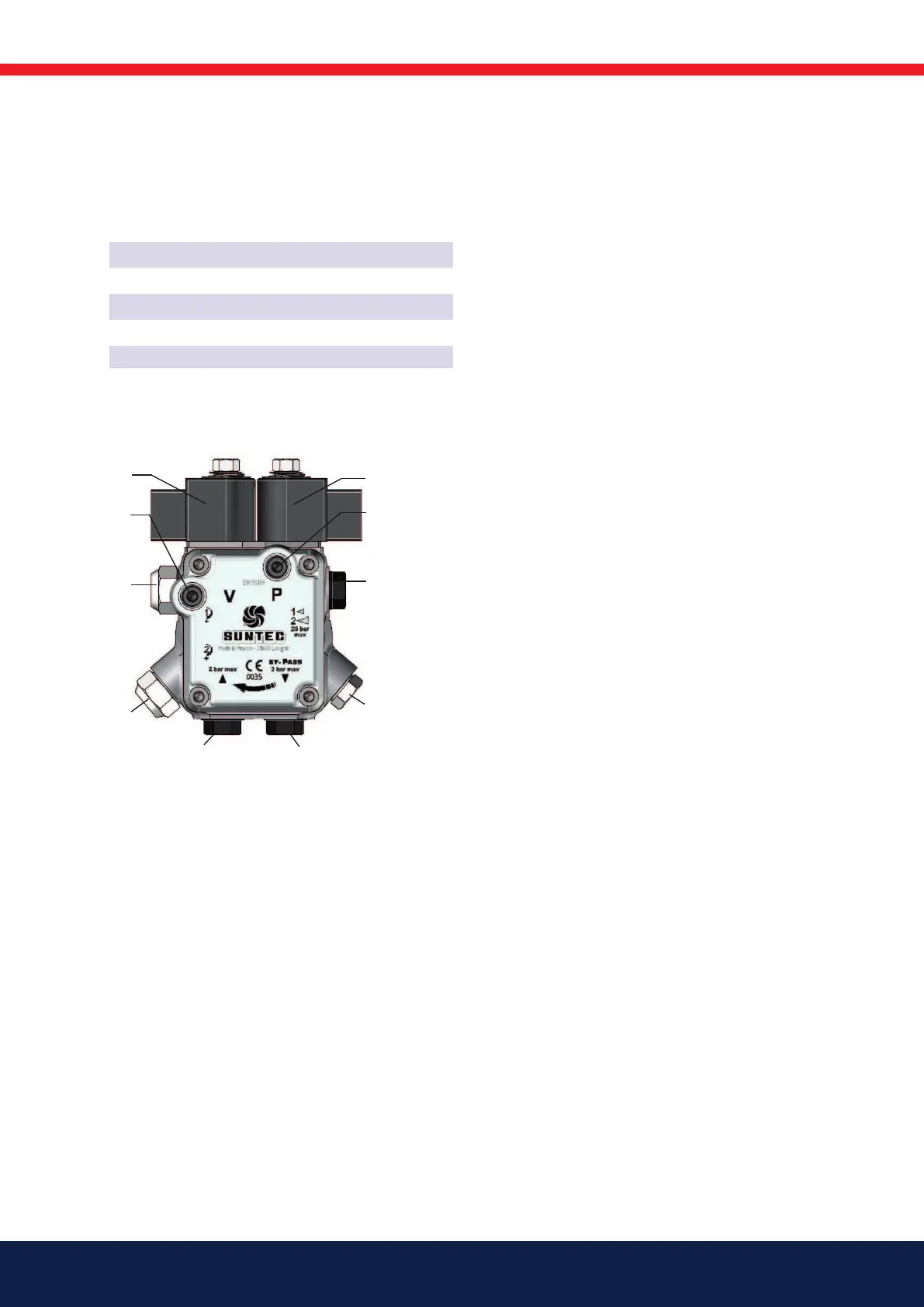

Components
1. Suction line G 1/4”
2. Return plug
3. Nozzle outlet G 1/8” Stage 2 and
stage 1
4. Pressure gauge port G 1/8”
5. Vacuum gauge port G 1/8”
6. Pressure adjustment Stage 1
7. Pressure adjustment Stage 2
8. Pressure adjustment
9. Solenoid valve 1
10. Solenoid valve 2
