9 Bentone
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure 10 bar (8-25 bar)
2.6 Burner installation
2.6.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
Combustion device d
1
d
2
d
3
B 30 ø 110 M10 ø 160-200
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specific distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
d
1
d
2
d
3

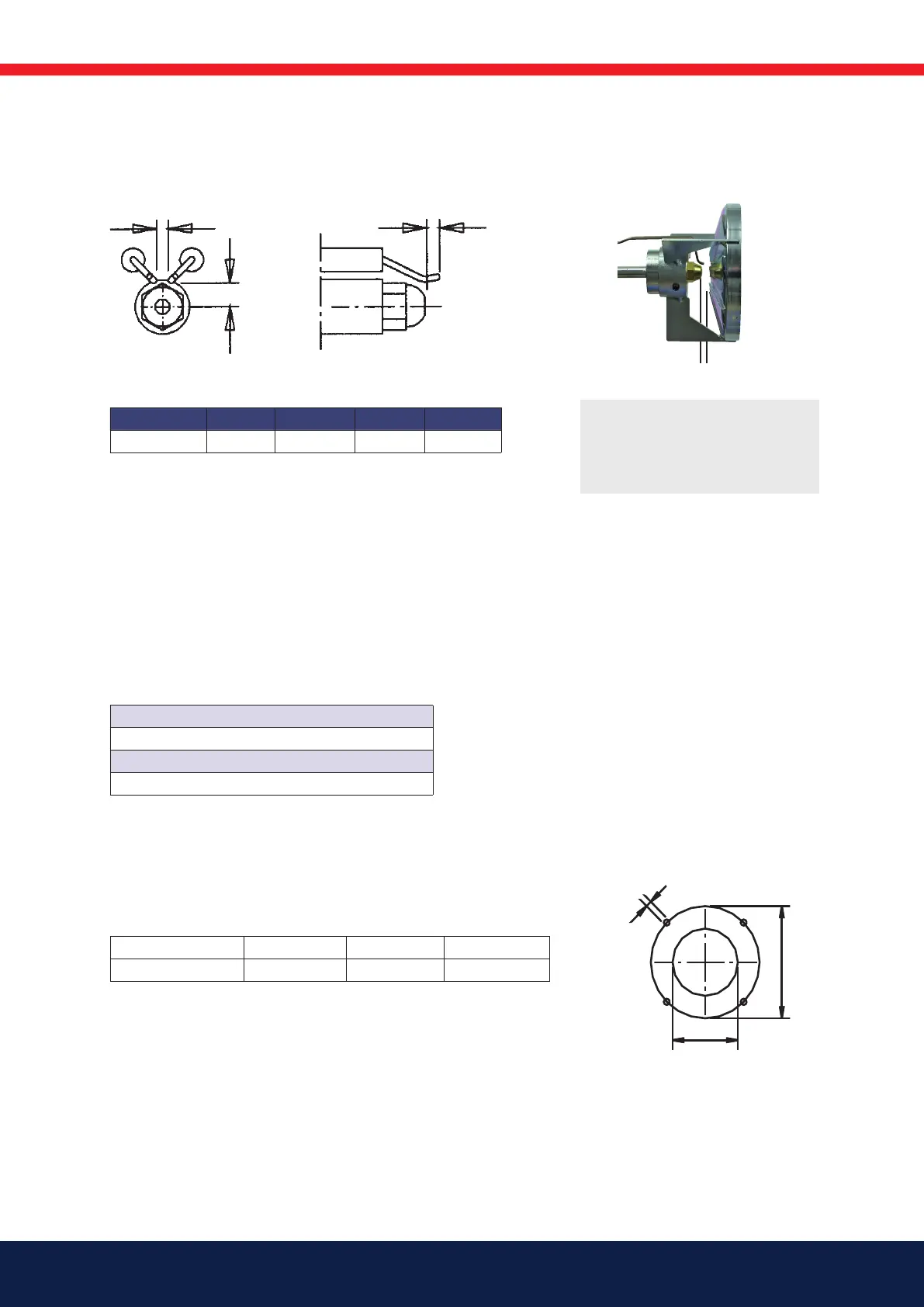

2.4 Setting of brake plate and air flow
2.5 Recommended nozzle and
pressure
!
*NB It is important
that the spark does
not strike against the
brake plate or nozzle.
a b c d
B 30 2.5-3.5 7,0-9,0 1.0-2.0 5.0-6.0
a
b
c
d
