Berchtold CHROMOPHARE E 778 - Light Combination, Flat Cardanic (N.C.); Handle Assembly

LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Design and function
34
4.1.4 Light combination, flat cardanic (N.C.)

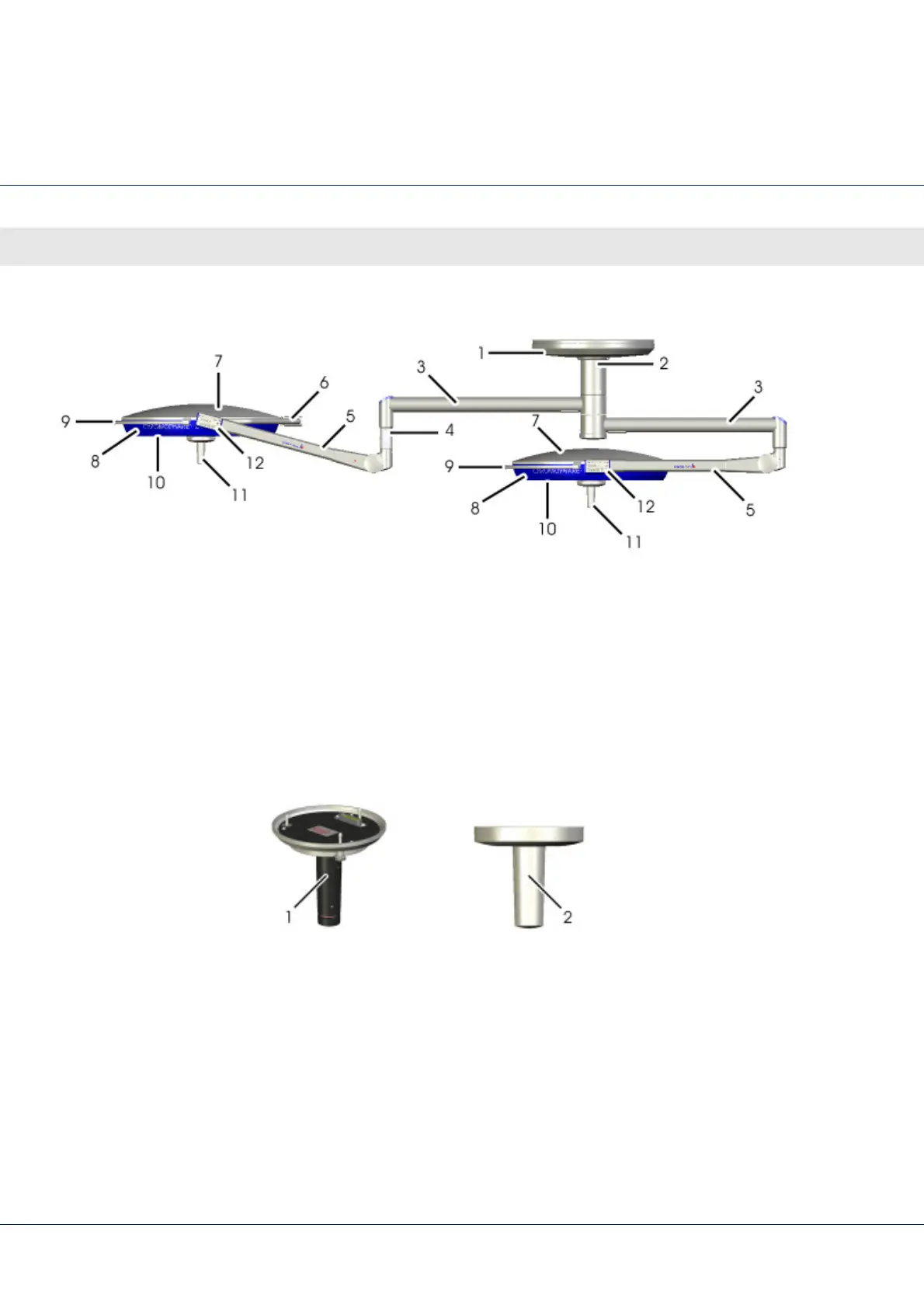

Fig. 5 CHROMOPHARE

E 778 with E 778 light combination components, flat cardanic
1 Soffit
2 Ceiling tube ∅ 125 mm
3 Swivel arm
4 Height adjustment tube
5 Spring arm
6 Horizontal gimbal joint
7 Lamp housing hood
8 Light frame
9 Rail
10 Light emission lens (facing)
11 Handle assembly
12 Control panel
4.1.5 Handle assembly
Fig. 6 Overview of handle assembly
1 Focus 2 Handle sleeve
