LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
72
11.3 Connecting the camera distribution board
11.3.1 ChromoVision



camera system HD and 1 C

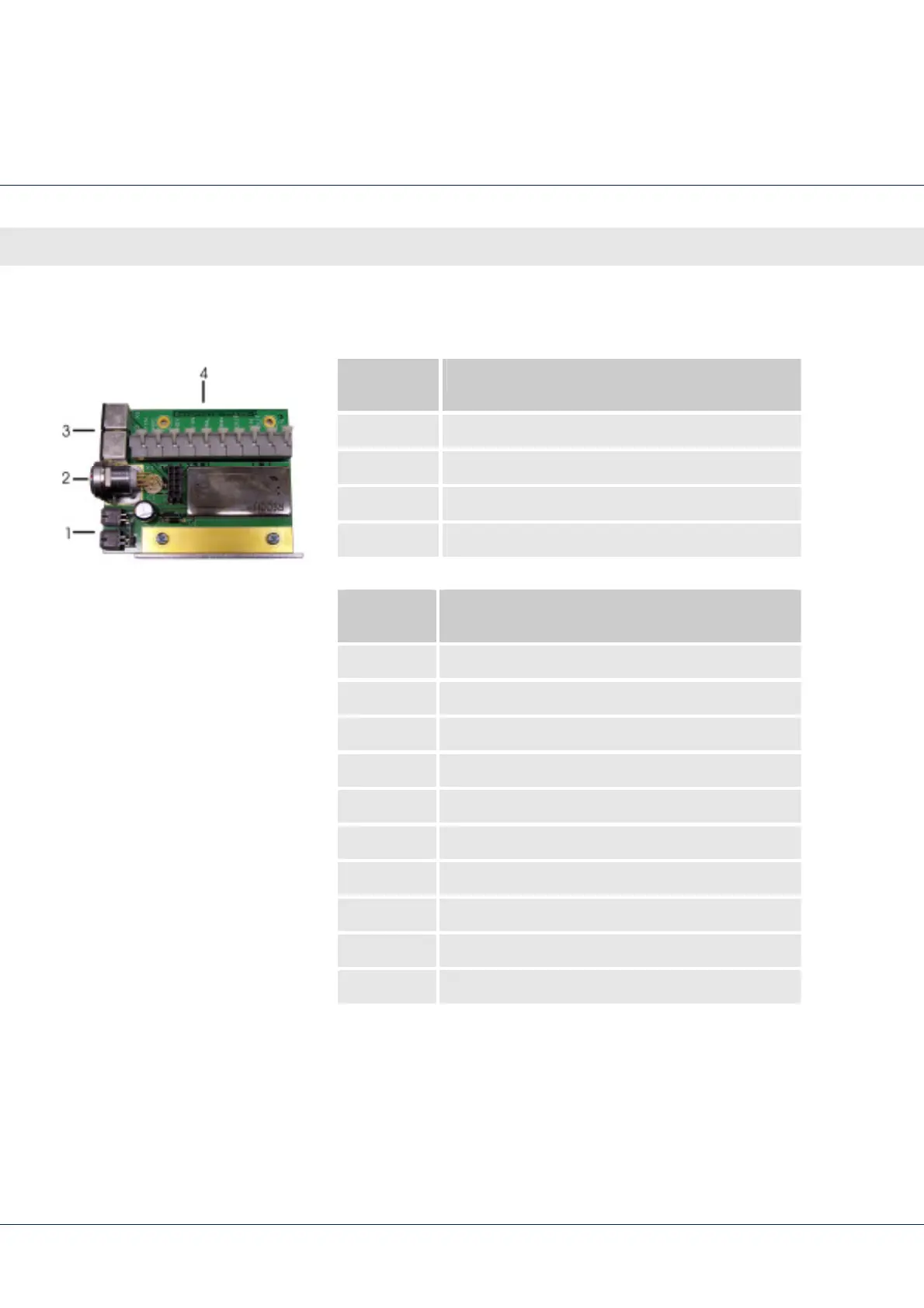

Fig. 39 Camera distribution board
Connection/
Position
Connection
1 CAN BUS
2 12-pin connection (for camera cable)
3 2x Y/C video connection
4 Terminal strip (see table for connections)
Terminal
strip
Function
C/IN Video Signal C input
GNDC Ground Video Signal C input
GNDY Ground Video Signal Y input
Y/IN Video Signal Y input
CANL CAN BUS LOW Signal
CANH CAN BUS HIGH Signal
+OUT +Ub to light head
+IN +Ub from supply
−OUT −Ub to light head
−N −Ub from supply
