12 Mechanical adjustments
12.1 Diagrams

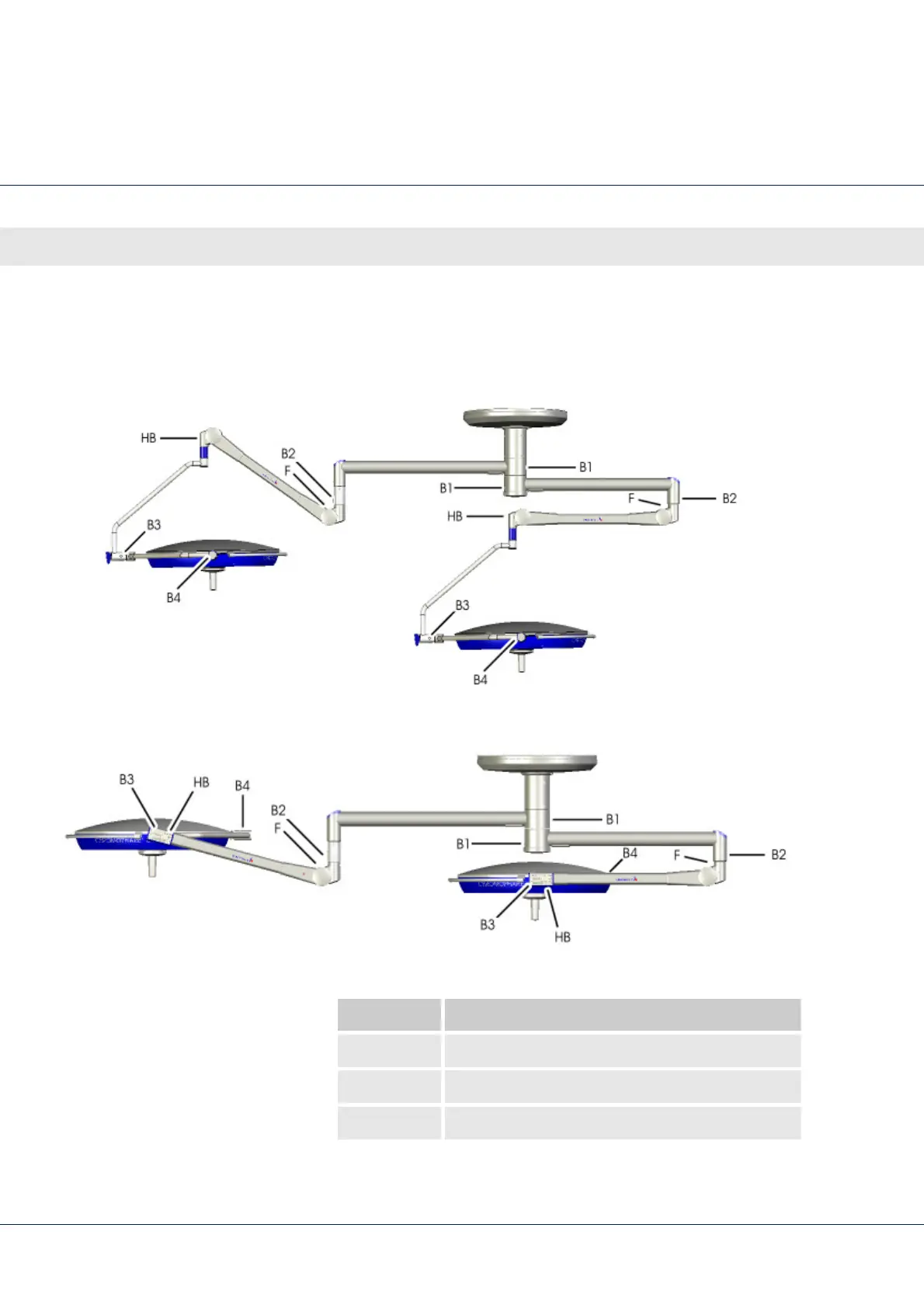

Fig. 41 Adjustment points, classic cardanic
Fig. 42 Adjustment points, flat cardanic
Abbreviation Adjustment element
B Brake screw
F Spring tension adjustment
HB Height limit
