LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
64
11.1 Electrical connection on the ceiling tube
DC power supply
Use only when emergency power relays are available on site.
+ 24 V DC - 24 V DC

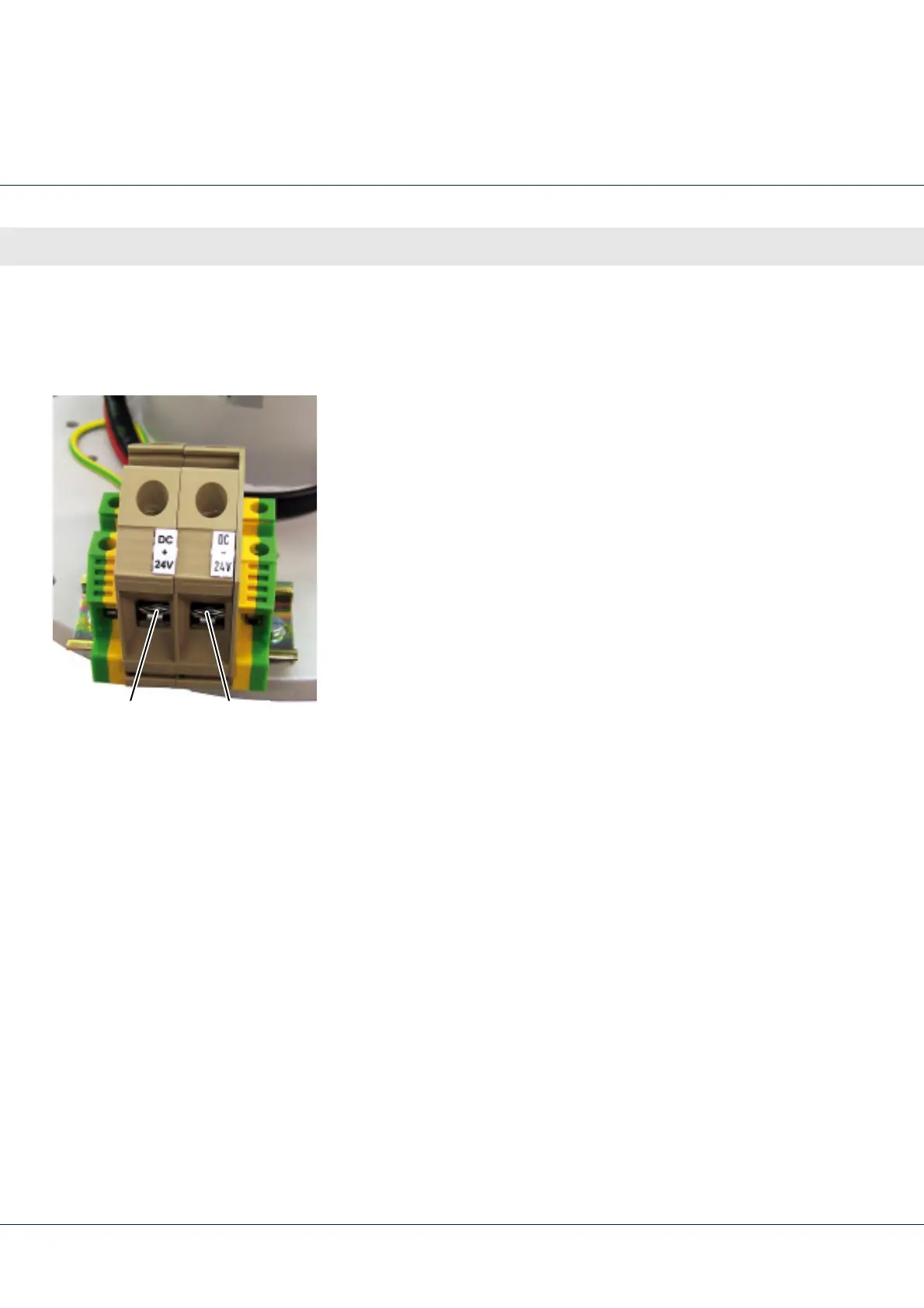

Fig. 31 DC terminals
DC terminals (up to 36 mm
2
cable cross-section)
Equipotential bonding terminals (up to 10 mm
2
cable cross-
section)
Transformer and emergency power relays are installed separately
from the ceiling tube.
Combination lights have additional terminal pairs. Connect them
as well.
