LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
70
11.2.2 Electrical connections for ChromoVision
ECO camera system
Connections on ceiling flange
Use only when emergency power relays are available on site.

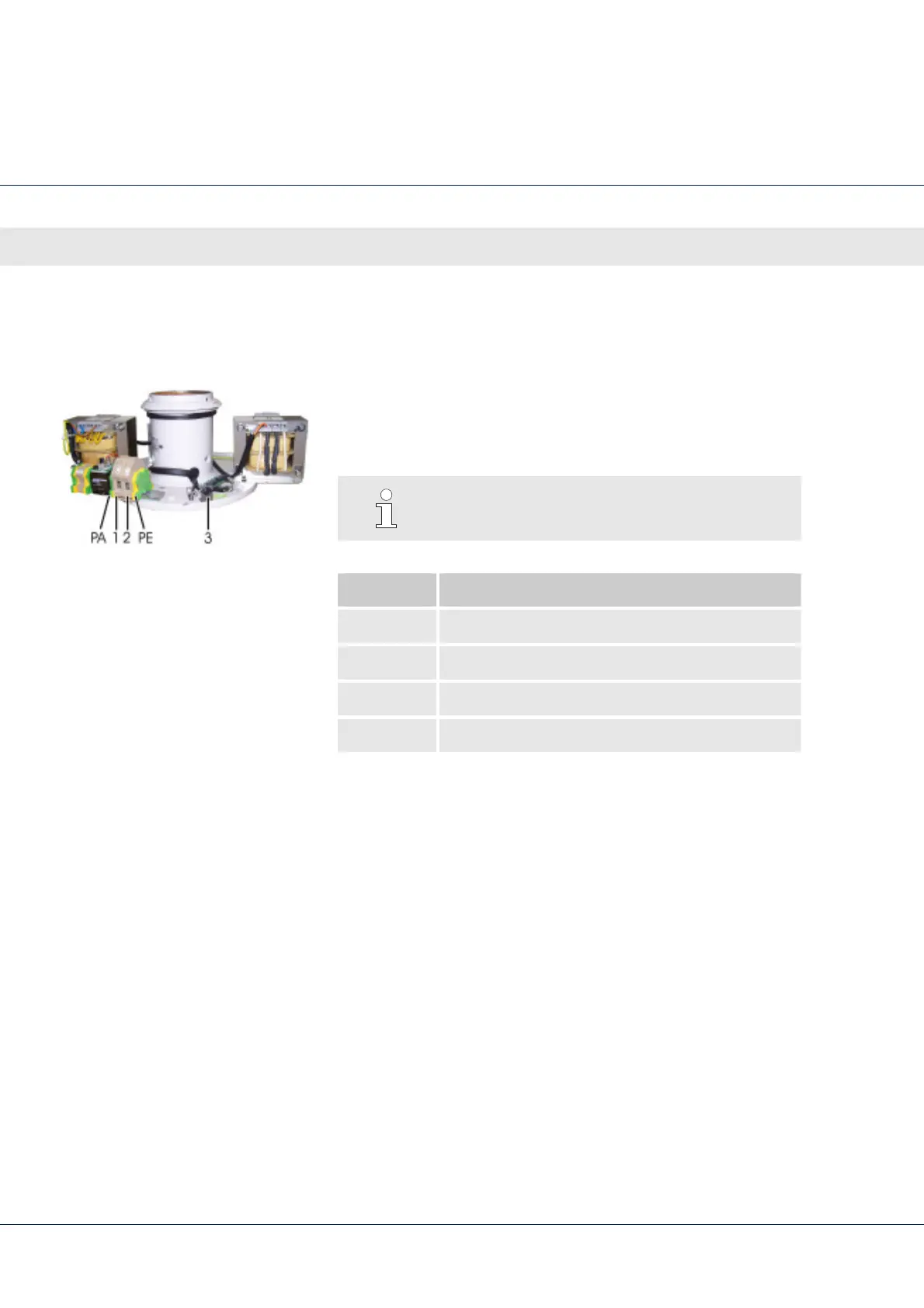

Fig. 37: Ceiling flange connections
See circuit diagram (request a copy from technical service,
inside back cover).
NOTE!
Do not shorten the 15 m camera cable!
Terminal Connection
1 Input 24 V DC
2 Input 24 V DC
3 Y/C socket, video
PE/PA Ground
