LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Mechanical adjustments
75
12.2 Adjusting the brakes
NOTE!
The following steps apply to spring arms mounted
to a height adjustment tube as well as spring arms
mounted directly to the swivel arm.
Adjust the braking action of the individual joints so that the light
head stays in any given position. If the suspension arm of the
surgical light drifts, tighten or replace the appropriate brake screw.
CAUTION!
Risk of injury if braking action of joints fail!
If the brake screws are lubricated or residual
lubrication is left on them, they lose their braking
action and the articulated joints will not stop as
desired when moved.
Therefore:
– You must ensure that the brake screws are
completely free of lubricant!
– Residual lubricant on the brake screws must be
removed immediately, e.g. with petroleum
ether solvent!
Swivel arm brakes

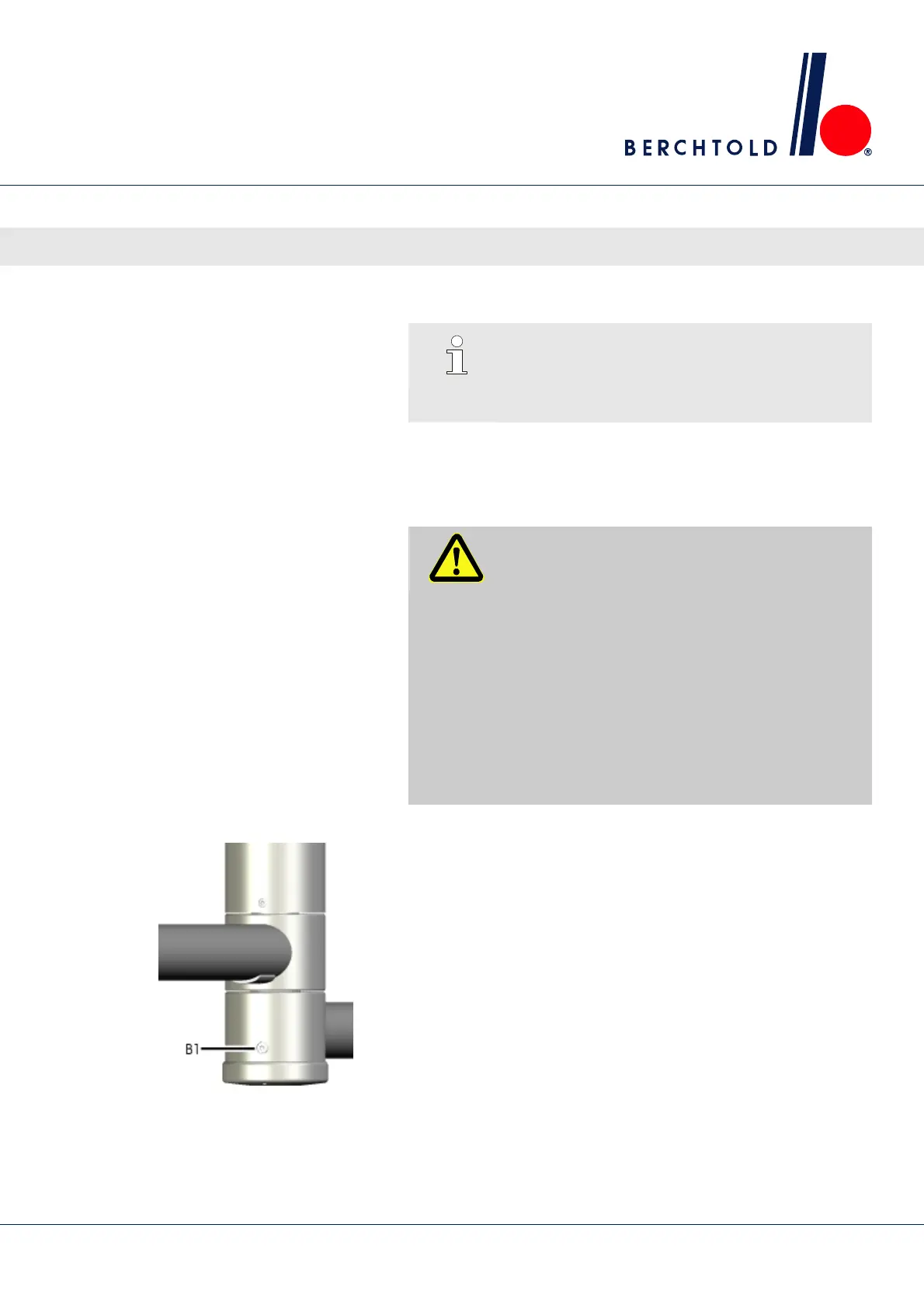

Fig. 43 Brake screw, B1
Use the brake screw (B1) to adjust the braking action to the
rotation of the swivel arm.
Turn counterclockwise to decrease the braking action.
Turn counterclockwise to reduce the braking action.
