LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
69
11.2.1 Electrical connections for ChromoVision
camera system HD and 1 C
Connections on ceiling flange
Use only when emergency power relays are available on site.

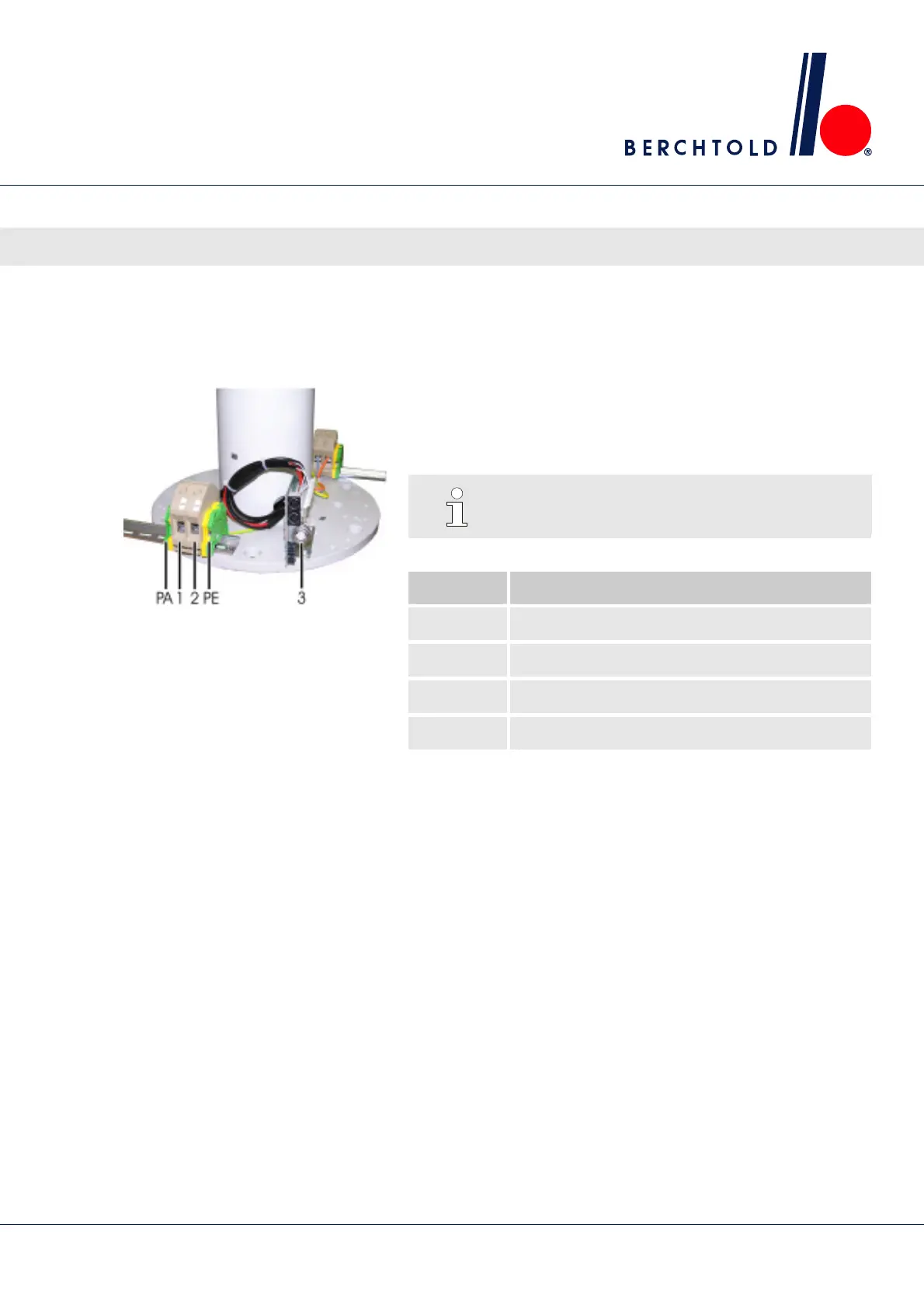

Fig. 36 Ceiling flange connections
See circuit diagram (request a copy from technical service,
inside of back cover).
NOTE!
Do not shorten the 15 m camera cable!
Terminal Connection
1 Input 24 V DC
2 Input 24 V DC
3 Camera cable connector port
PE/PA Ground
