LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Mechanical adjustments
77
Cardan joint brakes (flat cardanic)
B3

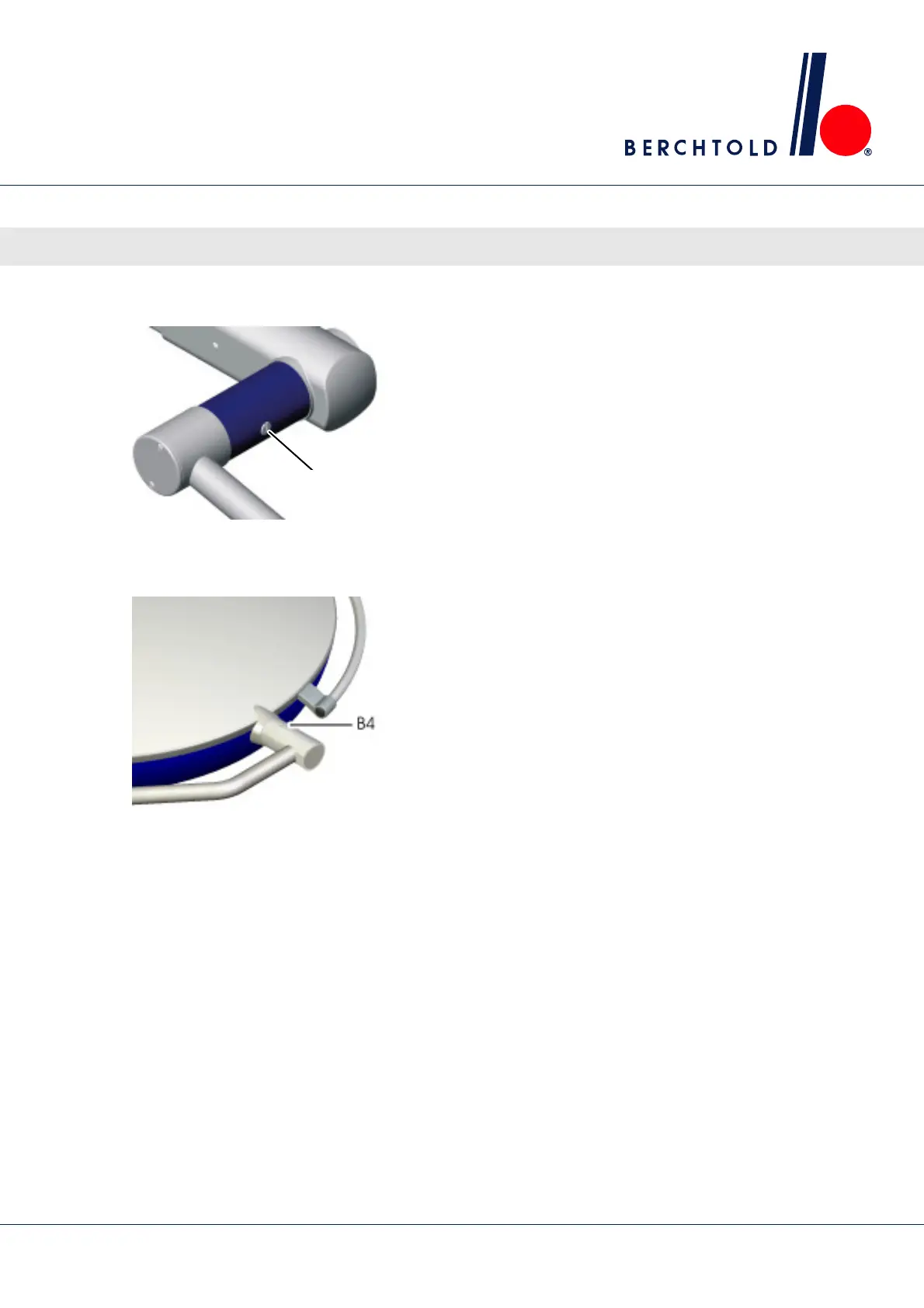

Fig. 46 Brake screw, B3 (N.C.)
Use the brake screw (B3) to adjust the braking action of the
cardan joint:
Turn counterclockwise to decrease the braking action.
Turn counterclockwise to reduce the braking action.
Light head brakes
Fig. 47 Brake screw, B4
Use the brake screw (B4) to adjust the braking action to the
rotation of the light head.
Turn counterclockwise to decrease the braking action.
Turn counterclockwise to reduce the braking action.
