15. Programming ACM-D2

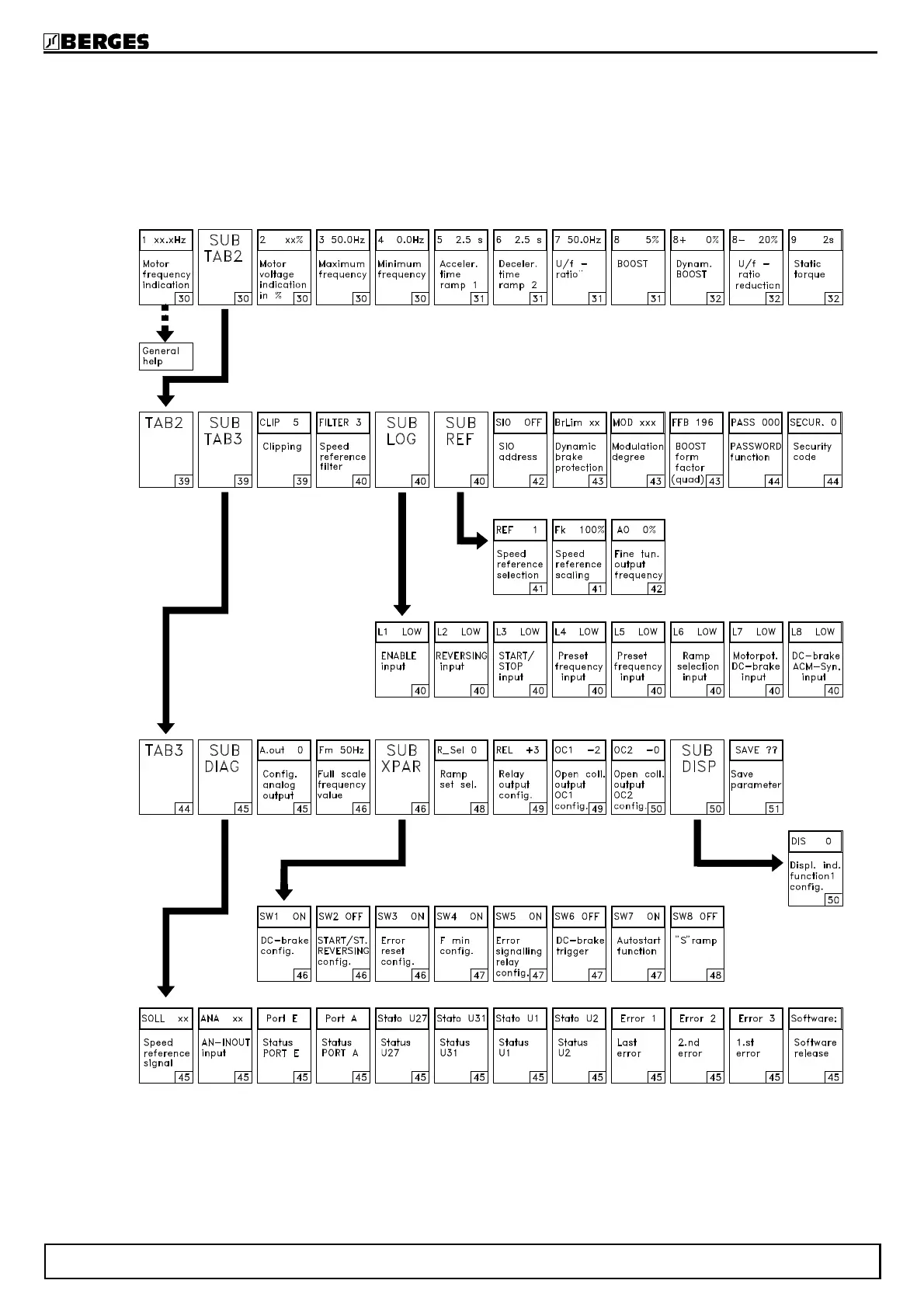

15.1. Program structure

BERGES electronic

28 Operating manual ACM-D2 29.05.98

Table of Contents

Default Chapter3
- Table of Contents3
1 Safety Notes5
- Explanation of Symbols and Notes5
- General Safety Notes5
2 Use of the Inverter in Accordance with Its Intended Purpose7
3 Introduction7
4 Technical Data (Input Voltage 1 X 2208
5 Technical Data (Input Voltage 3 X 3809
6 Technical Data (Input Voltage 3 X 38010
7 Power-Derating in Function of the Switching Frequency11
8 Dimensional Data ACM-D2 0.37 Kw - 5.5 Kw12
9 Dimensional Data ACM-D2 7.5 Kw - 22.0 Kw13
10 Dimensional Data ACM-D2 30.0 Kw - 37.0 Kw14
11 Installation Examples15
- Exemple 1: ACM-D2 0.37 Kw - 2.2 Kw (1 X 230V)15
- Exemple 2: ACM-D2 0.75 Kw - 37.0 Kw (3 X 400V)16
12 Installation17
- Mains Power Connection17
- Motor Connection18
- Interference Suppression Measures/Emc (Electromagnetic Compatibility)19
- Mains Back-Up Fuses20
- Series Autotransformer21
- Ventilation21
- Control Terminals22
- Power Terminals23
13 Commissioning and Settings24
- General Information24
- Adaption to Operation24
14 Operating Functions25
- General25
- Control Panel25
- Display26
- Help - Function and Language - Select26
- Inverter Status26
- Warnings27
- Operating Error Messages27
- Hardware Error Messages28
- Input Circuit29
15 Programming ACM-D230
- Program Structure30
- Program Level TAB132
- Program Level TAB241
- Program Level TAB346
16 Braking Chopper ACM - D254
- Braking Chopper 0.37 Kw - 1.1 Kw (1 X 230V)54
- Braking Chopper 0.75 Kw - 37.0 Kw (3 X 400V)54
  - Minimum Values for Braking Resistors (Accessory)54
  - Assembling the Braking Resistor54
17 Accessories55
- Programming Key55
- Software KEYSOFT56
- Telecomander RC56
- DVM - Plus Mp56
- ACM - Synchronizer56
18 Faults and Remedies57
19 Functions of ACM-D258
20 Notes61
