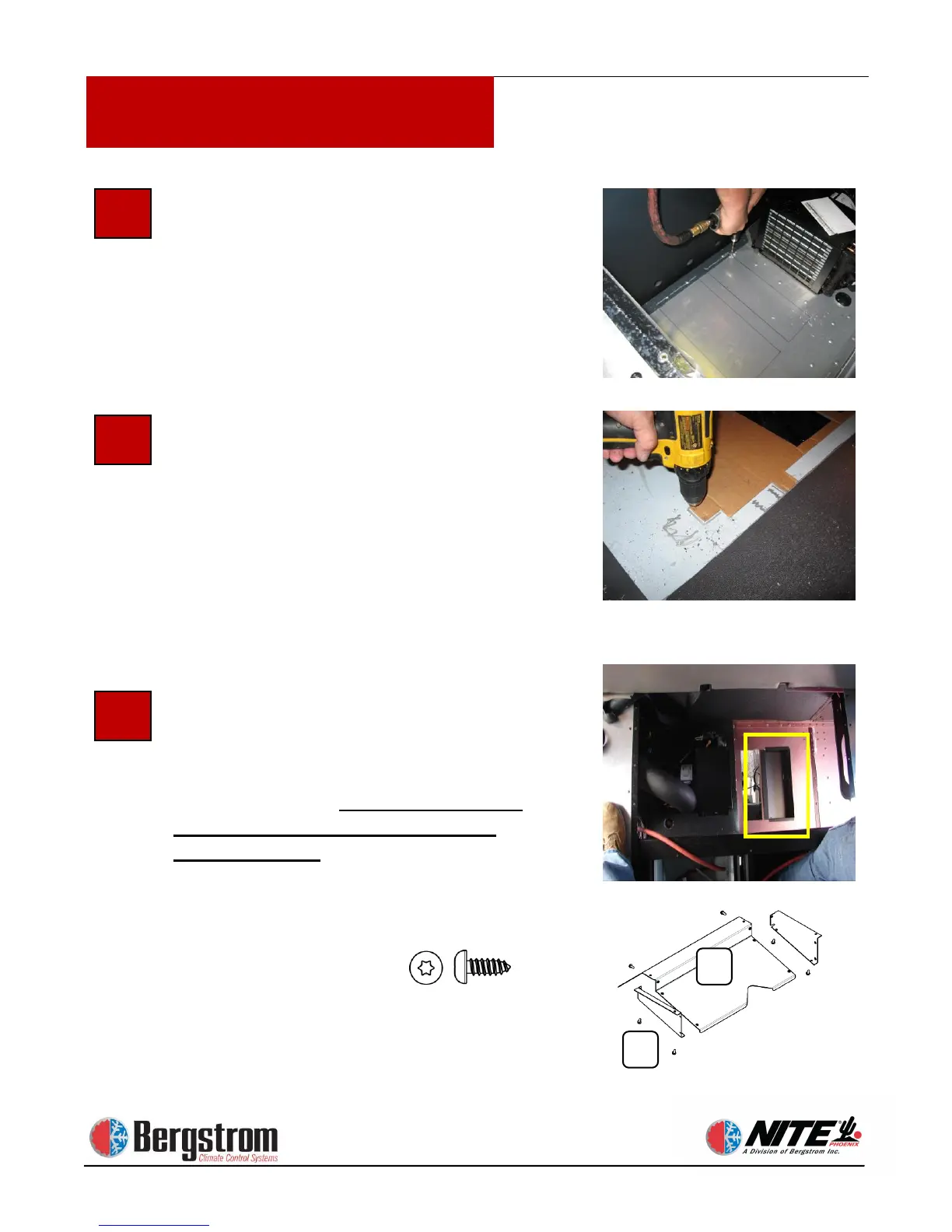

Mark and Cut Holes in Truck Floor
Mark the two rectangular openings in
the template. Drill starter holes in all
four corners of the two areas marked for
cutting. Note location of cross members
prior to drilling holes. Use air
saw/jigsaw to cut through truck floor.
Position the NITE Phoenix mounting
template, as shown, with the condenser
openings over the holes cut in the truck
floor. Mark and drill pilot holes for 4
mounting feet. The unit has 8 possible
locations but you will only use 4. Use
equal spacing to provide adequate
stability of the Phoenix unit.
Pre-assemble the air intake using
#10 X 1/2″ T20 screws (see below).
Place assembled unit in the condenser
hole. Fasten with 1″ screw with 5/16
head self-drilling. Modification of this
assembly may be required to allow
proper air flow. In some applications
the side pieces (A) are not used and (B)
may need to be trimmed to allow proper
air flow.
To Next Page
