Follow steps 24 thru 36 ONLY if your sleeper does not have a
window. If your sleeper has a window, refer back to step 10.

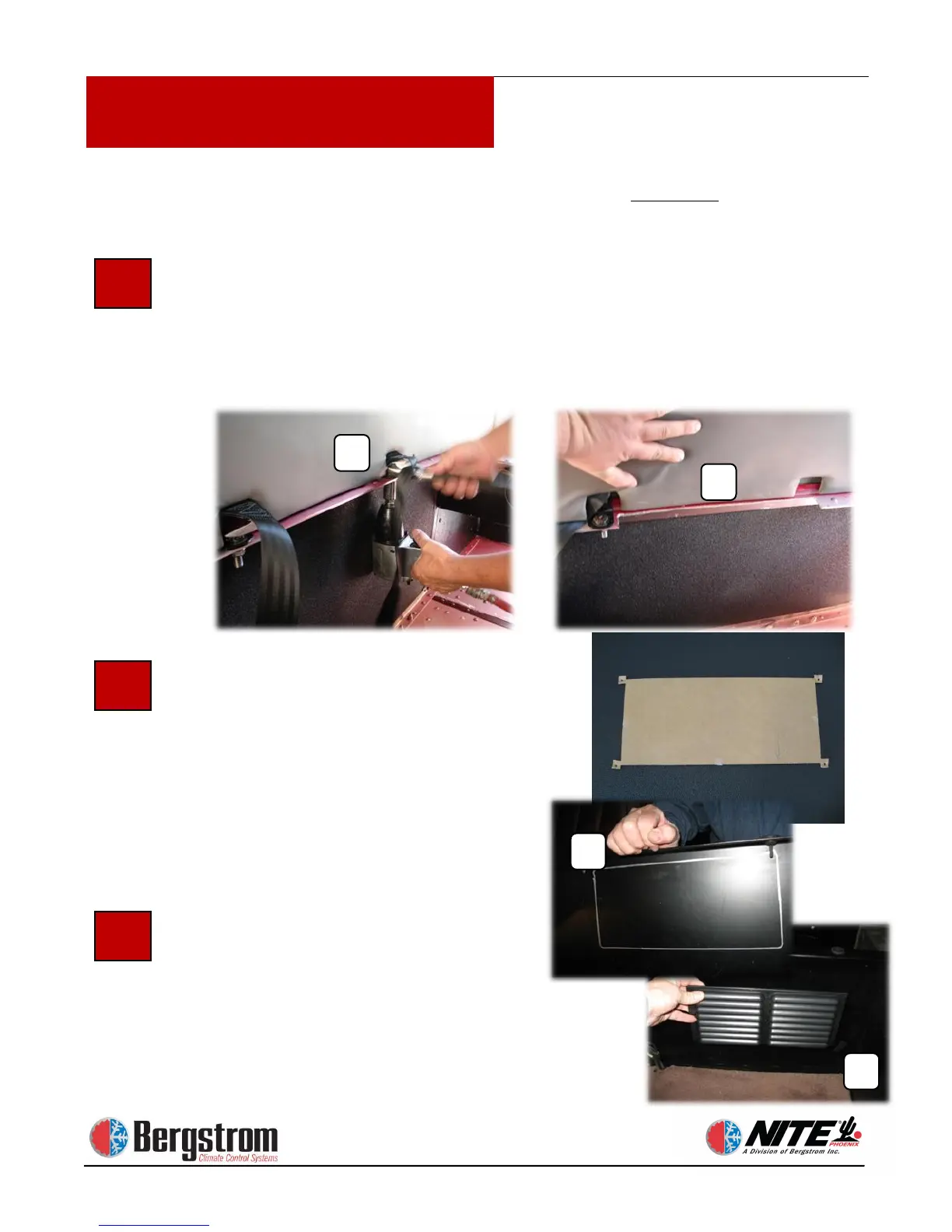

Relocate Seat Belt - Trim Flange to Allow for NITE Phoenix Duct
A clearance cut needs to be made in the aluminum flange on the back wall.
This will allow clearance for the NITE Phoenix duct to be mounted flush on
the back wall. Remove the driver side seat belt (A) and relocate and reattach
it. Trim the aluminum flange between the two seat belt straps a minimum of
13-1/2″ flush against back wall (B).
Determine Location for Recirculation
Grill Install the grill in the center
support wall (see photo showing outline
for cutout marked on center support
wall)The opening should be positioned
in front of where the NITE Phoenix
unit will be positioned. The size should
be 11-1/2″ x 4-5/8″. Use provided
template for marking.
Cut Opening for Recirculation Grill
Cut an opening (C) with a metal-cutting
air saw or jigsaw for the recirculation
grill in the support wall. Attach grill (D)
to the center wall using black Phillips
head screws.
NOTE: Take precautions not to damage
carpet or upholstery.
