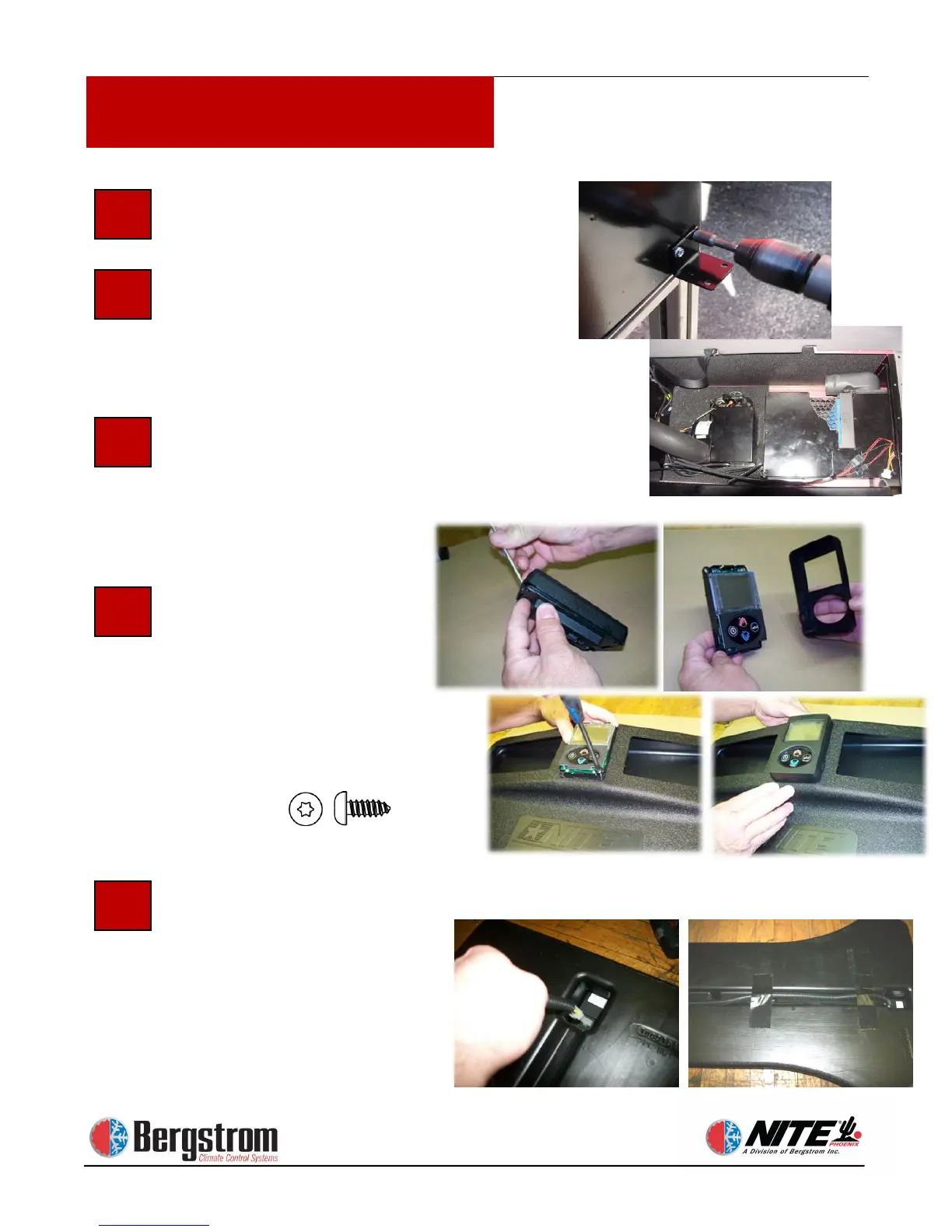

Preassemble Elbow (see page 1-15)
Install mounting feet. See page 1-16
step 20. Test Fit the NITE Phoenix
Unit, Elbow Duct and Flange. Set the
NITE Phoenix unit in place as shown.
Install unit. Now secure the unit using
eight 1″ X 5/16 head self-drilling
screws in the pre-drilled holes drilled in
step 8 page 1-11.
Attach Control Panel to
NITE Duct. Carefully
depress the lock and
remove the controller cover.
Install the controller to the duct
using #10 x 1/2″ T 20 torque head
screws (PN 600129). Do not over
tighten.
Run Wiring behind NITE Duct.
Loom the control harness.
Connect it to the back of the
controller. Place the wiring
harness along the channel on
the back of the duct. Secure
wiring in channel with tape.
To Next Page
