Threading

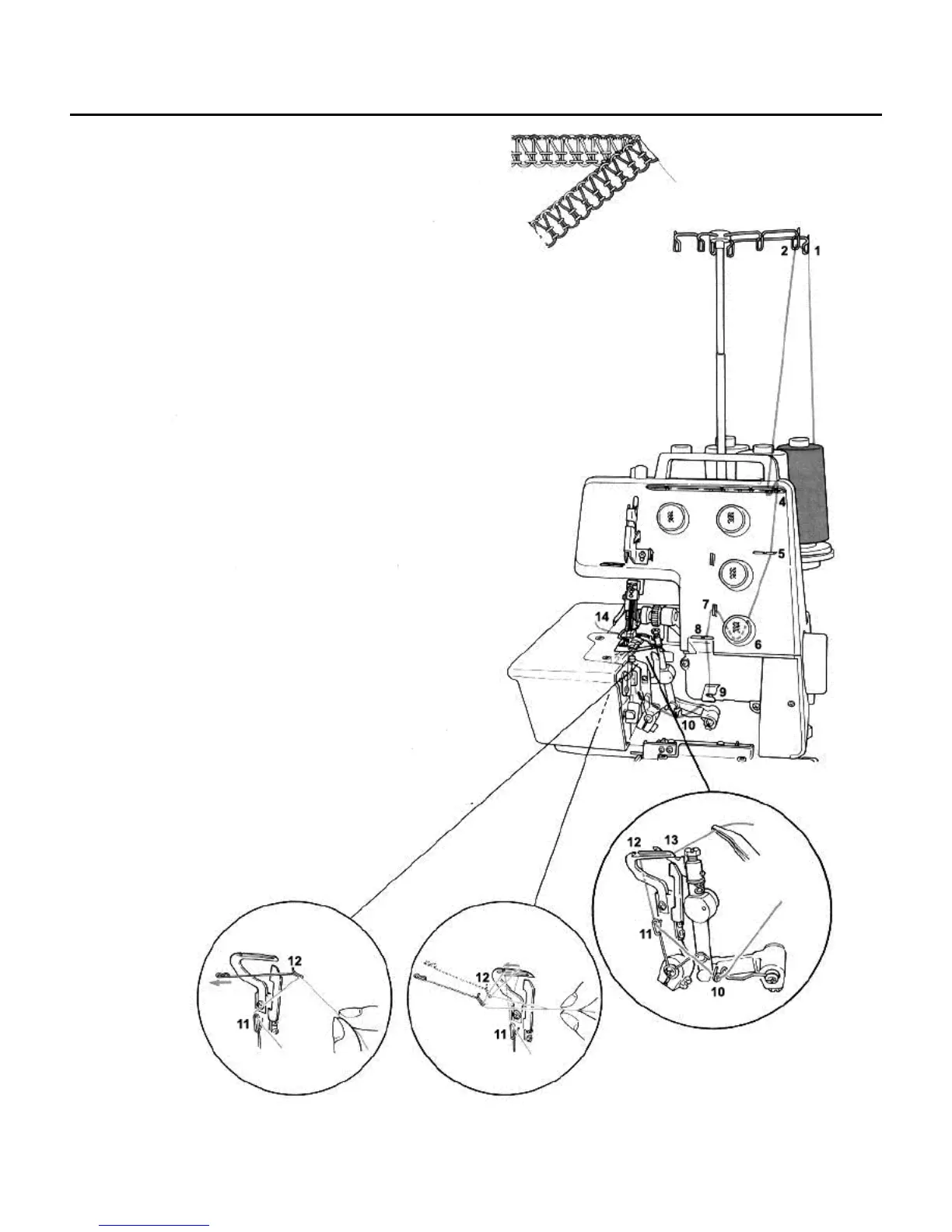

1. Lower looper thread, red markings
Place the spool on the spool holder pin underneath the red
marking on the thread guide.
(1,2) Bring thread up from spool and take it through the red
guide.
(3,4) Make S-loop around thread guide bar.
(5) Thread guide.
(6) Thread tension dial.
(7,8,9,10,11) Thread guides
(12) Using the looper threader, pass the thread from the right
hand side through to the left hand-side of the machine. Turn
the handwheel towards you until the lower looper is in the
left-most position. Insert the thread into the slit on the lower
looper.
(13) Using the looper threader, pull the thread through to the
right side again. Turn the handwheel towards you until the
lower looper is in the right-most position, and thread the
looper eye so that the thread lies in the long groove on the
lower looper.
(14) Take the thread over the upper looper. Raise the presser
foot, place the thread under it and then lower the presser
foot.
12
