Threading

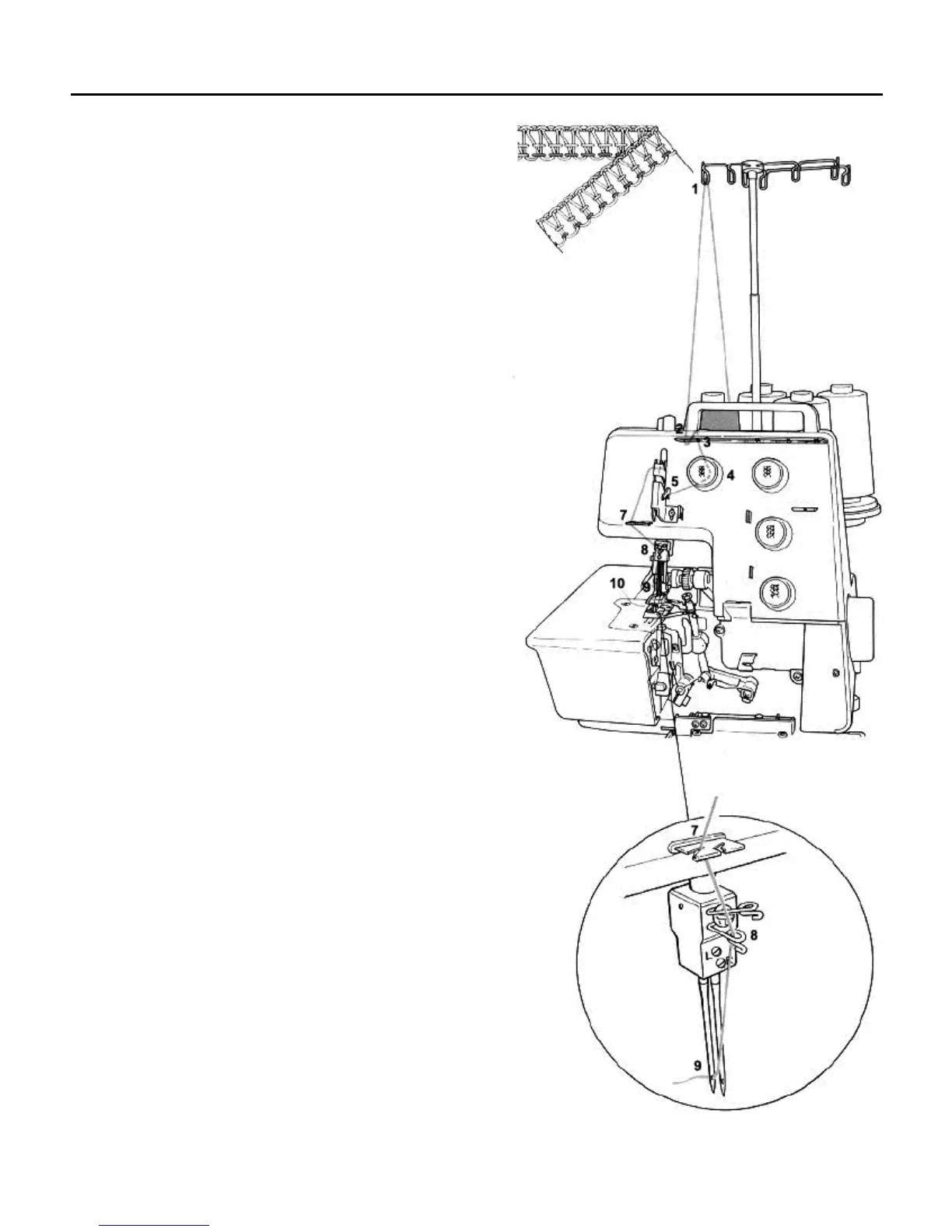

4. Left-hand needle, yellow markings
Place the spool on the spool holder pin underneath the
yellow marking on the thread guide.
(1) Bring the thread up from the spool and take it through the
yellow guide.
(2,3) Make S-loop around thread guide bar.
(4) Thread tension dial.
(5,6,7) Thread guides
(8) Thread guide on needle clamp
(9) Turn the handwheel towards you until the needles are
fully raised. Thread the left-hand needle.
(10) Raise the presser foot, place the thread underneath it.
Lower presser foot.
When threading is complete, lower the upper knife and close
the looper cover and cloth plate.
Note: If the lower looper has to be re-threaded, cut both
needle threads off at the needle and removes surplus thread
from below. Thread the looper and then re-thread the
needles.
14
