Bertolini 403 - TECHNICAL DATA; CONTROLS; ENGINE STOP LEVER; CLUTCH CONTROL LEVER

34
TECHNICAL DATA
Motor Cultivator type 1 + 1 2 + 2
Petrol engine XX
Diesel engine /X
Recoil starter X X
Motorstop X X
Dry disc clutch X X
Motor Cultivator version gearbox 1 MA + 1 RM 2 MA + 2 RM
Mower version gearbox 1 MA + 1 RM 2 MA + 2 RM
Adjustable handlebars:
6 vertical positions, 3 horizontal positions REVERSIBLE 180°
Wheels with fixed disc tyres X X
Metal wheels X X
Weight with CA24 engine and Mower cm. cm. 50 = 74 Kg cm. 60 = 77 Kg
Gewicht met CA24 motor en 90 cm. maaibalk 70 Kg 72 Kg
X= AVAILABLE / = NOT AVAILABLE
FITTING THE WHEELS
After removing the machine from its
packing, mount the wheels taking care
that the drive key is fitted correctly in the
wheel axle seat.
The arrow shown on the tyre wheel must
be turned towards the engine for the

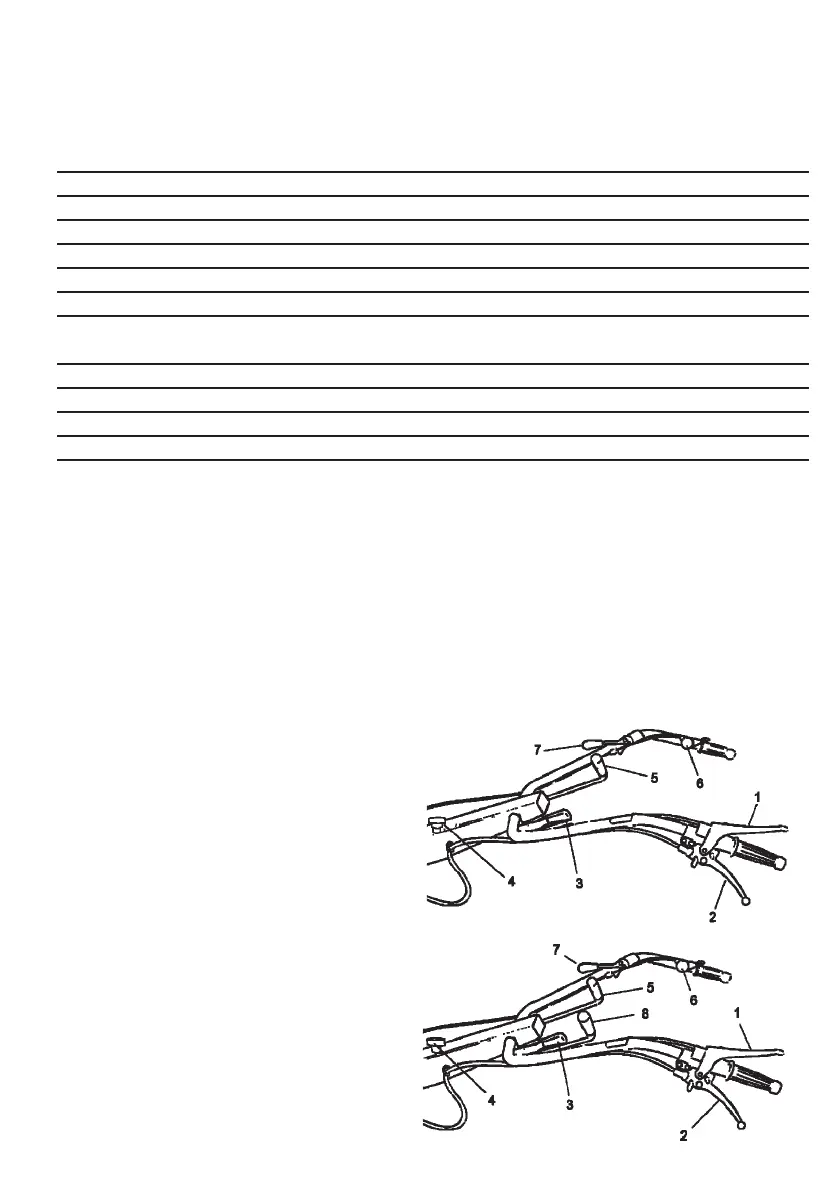

CONTROLS (Fig. 9A - 9B )
1.Engine stop lever
2.Clutch control lever
3.Handlebar vertical lock lever
4.Steering column horizontal lock lever
5.Forward and reverse gear control lever
6.Throttle control lever
7.P.T.O. control lever
8.Gear control lever (per 2+2)
Fig 9A
Fig 9B
