FRONTAL MOWER BAR APPLICATION
Connection to motor cultivator
The mower bar is attached to the motor
cultivator by means of the Quickfit con-
nection.

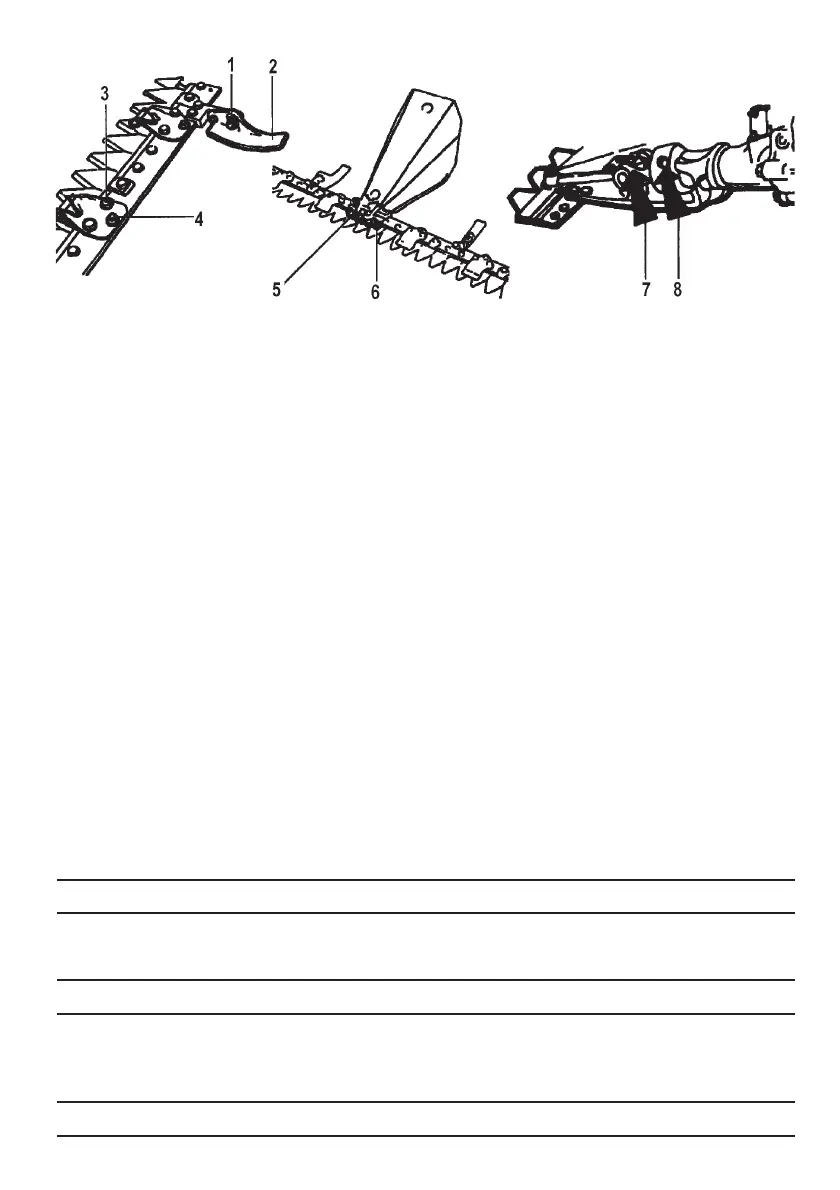

Mower height adjustment
When working on bad terrain, it is ne-
cessary to adjust the mower’s cut hei-
ght in the following way:
- Loosen nut 1.
- Bring the skid pad back to wanted po-
sition
- Lock the nut again
- Carry out adjustment on both skid pads
Blade holder adjustment
- Loosen fixing screws 5.
- Turn the adjustment screws 4.
- Tighten the fixing screws again
N.B.: Excessive friction between the bla-
de holder and the blade must be avoi-
ded in order to guarantee good functio-
ning.
Mower blade replacement
- Loosen screws 5.
- Remove blade catch 6
- Slip off the blade
To re-mount the blade carry out the
same operations but in reverse order.
SERVICING THE BAR WITH CONNEC-
TING ROD-CRANK MECHANISM.:
Each time the mower is used apply gre-
ase to points 7 and 8.
AIRBORNE NOISE Maximum level of weighted equivalent continuous sound pressure
MOTORCULTIVATOR TYPE 1 + 1 2 + 2
MOTORCULTIVATOR 77,7 dB (A) 80,8 dB (A)
MOWER 83 dB (A) 84,9 dB (A)
MOTORCULTIVATOR TYPE 1 + 1 2 + 2
ENGINE TYPE HONDA G X 160/TECUMSEH INTERMOTOR LGA 225
TEST R.P.M. 3050
HANDLEBAR VIBRATION Measurement with weighting according to ISO 5349
MOTORCULTIVATOR TYPE 1+1 2+2
MOTORCULTIVATOR 4,5 m/s_ 4,5 m/s_
MOWER 13,4 m/s_ 13,4 m/s_
Fig.21A
