Big Joe M22 - Lubrication Diagram; Lubrication Chart

BL-M22EP-0119 - 01-11-2019 3-3

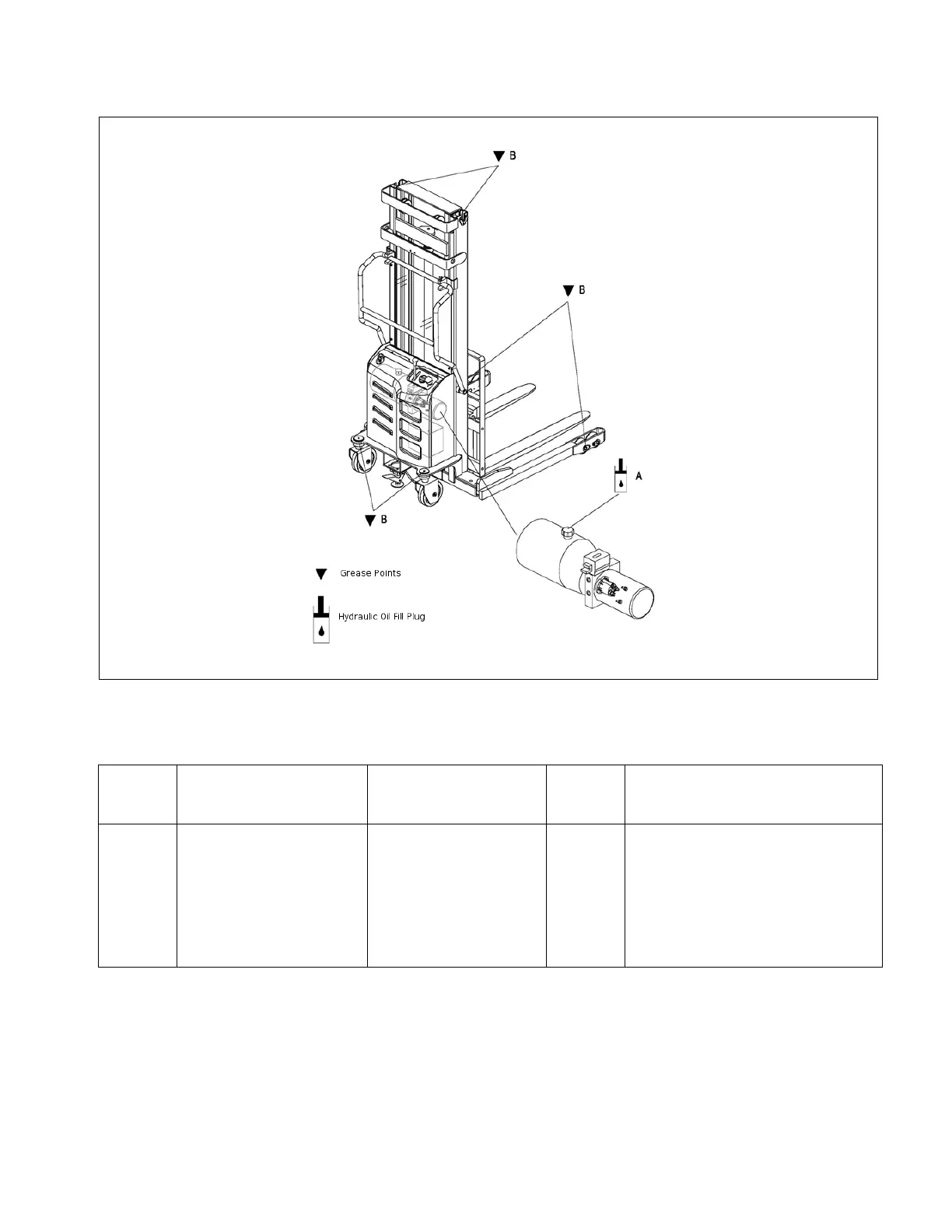

Figure 3-1 Lubrication Diagram
Table 3-3 Lubrication Chart
Table 3-4
R8357
FIG 3-2
INDEX
NO.
LOCATION METHOD OF
APPLICATION
TYPE
(Table
3-3)
APPLICATION
OF
LUBRICANT
1 Lift Carriage Brush No. 1 Light coating where forks slide
2 Mast Brush No. 1 Full length of channel where rollers
operate.
3 Lift Chain Brush or Spray No. 3 See Paragraph 3-6.
4 Hydraulic Reservoir
Capacity-1 quarts
Can No. 2 With lift carriage fully lowered, fill
reservoir with hydraulic oil to 1
inch below opening
