2-4. INSTRUMENTS AND CONTROLS.
2-4.1. Instrument Panel
The instrument panel contains the lift/lower control
lever, battery discharge indicator (BDI) and the emer-
gency stop switch.
2-4.2. Foot Actuated Floor Lock
The foot actuated floor lock is used to hold the truck
stationary.
2-4.3. Operator Handle
The operator handle located on the mast is used to
propel and steer the lift truck.

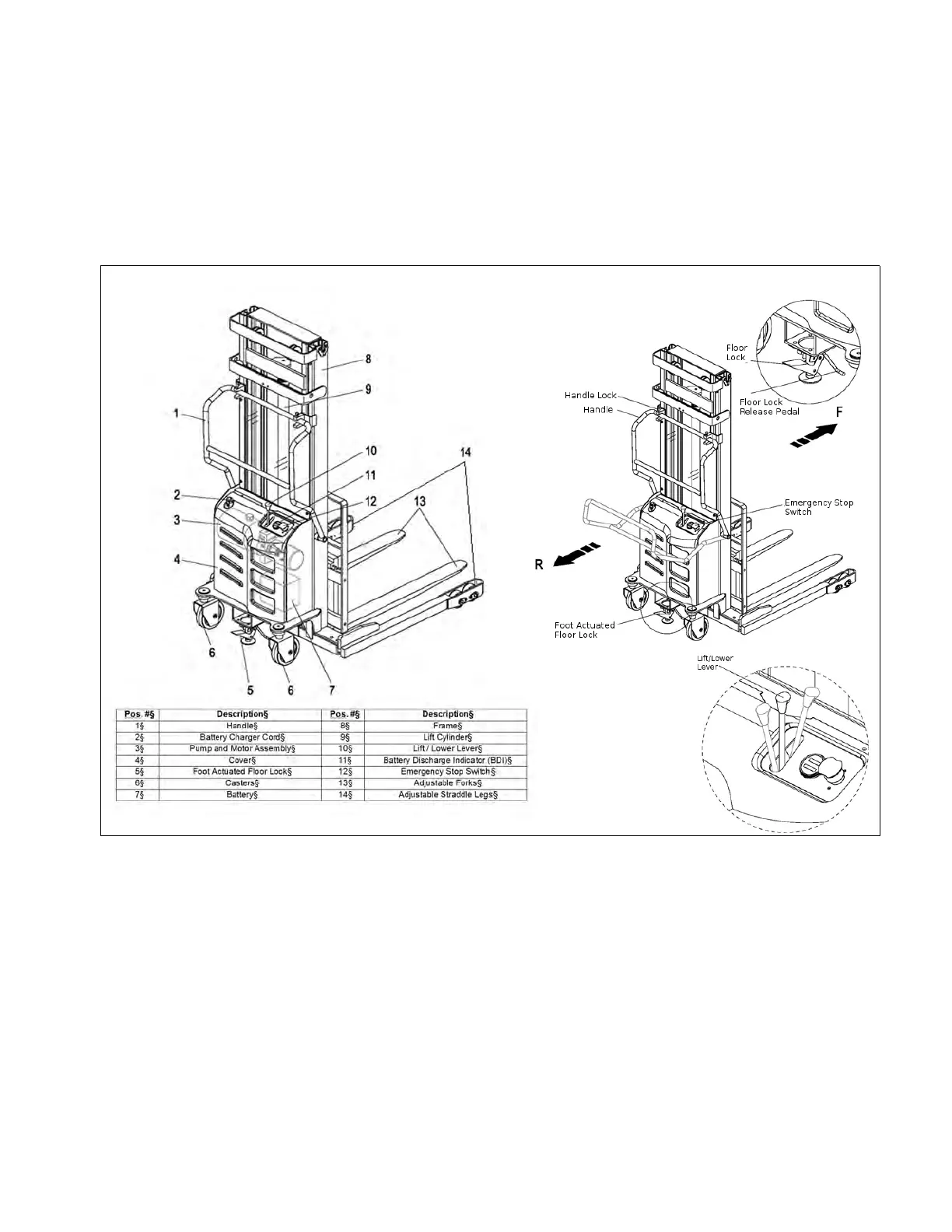

Figure 2-3. M22 Lift Truck
2-5. TRANSPORT.
2-5.1. Moving, Positioning and Stopping
1. Check that the load is in the down position before
traveling.
2. Release the floor lock by pressing the Floor Lock
Release Pedal.
3. Apply pressure to the operator handle to move
the truck forward. Lower the operator handle so
that you are further away from the truck and move
the truck in reverse.
4. To stop the lift truck, hand pressure against the
operator handle is usually adequate.
5. After the lift truck has stopped, always engage the
floor lock before lifting or lowering and when park-
ing.
