BigRep ONE 6 Operation and Control
77

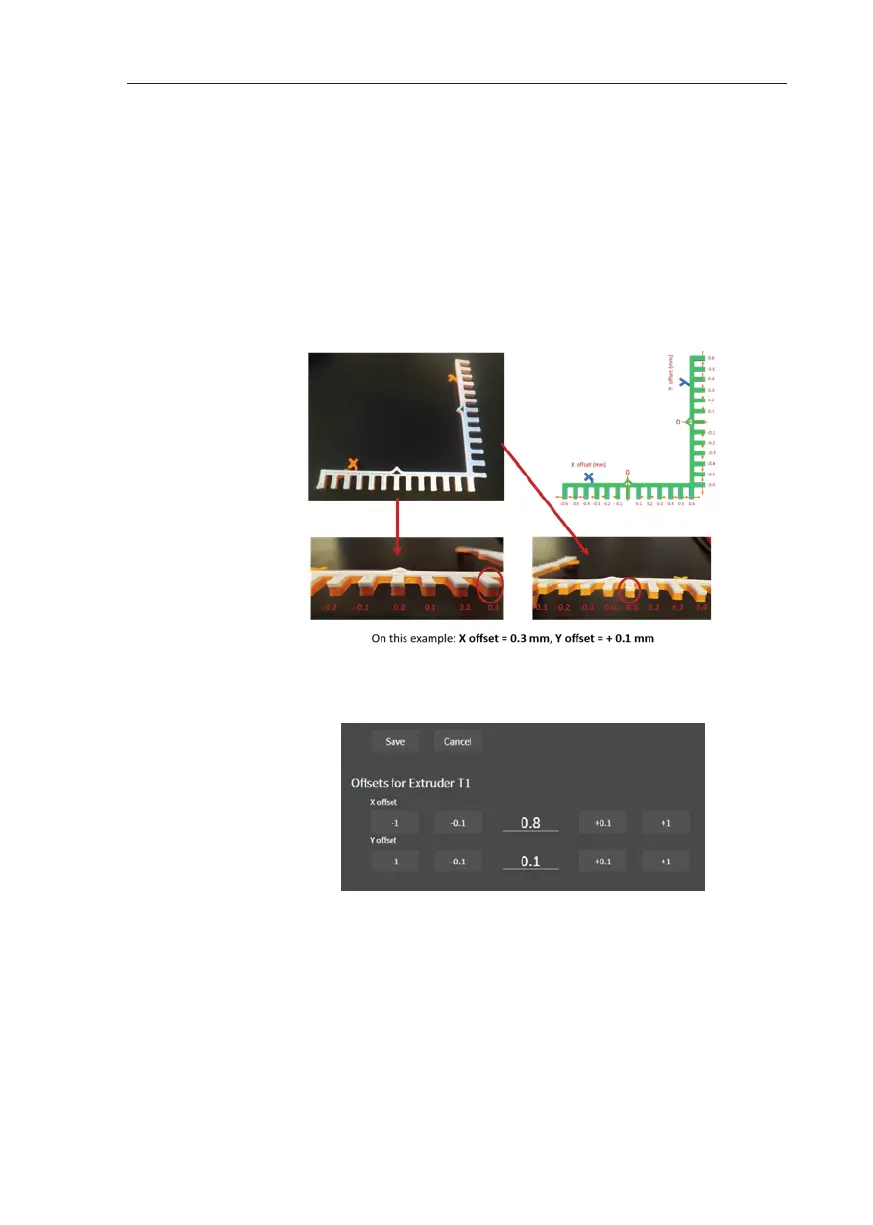

› Step 2: Calculate the osets with a resolution of 0.1 mm
– Print the g-code XY_Calibration_Step2_0.1mm which has a
resolution of 0.1mm
– When the print is finished, WAIT UNTIL THE BED IS COLD, and release
the part o the bed.
– Identify the osets. The shapes printed with extruders 1 and 2 should
match just in one point. Identify the point in which they match and
write down the oset using the template below.
– Go to the Advanced Menu, update the osets (add the new values to
the previous ones) and save.
Base Flowrate Multiplier Test
A simple test will help you check the base flowrate of your extruders.
› Heat up both extruders to the printing temperature of the material you
would like to use
› When the extruders reach the temperature, insert filament on both ex-
truders until it reaches the end of the nozzle (make sure that a bit of mate-
rial is extruded)
