6 Operation and Control BigRep ONE
78

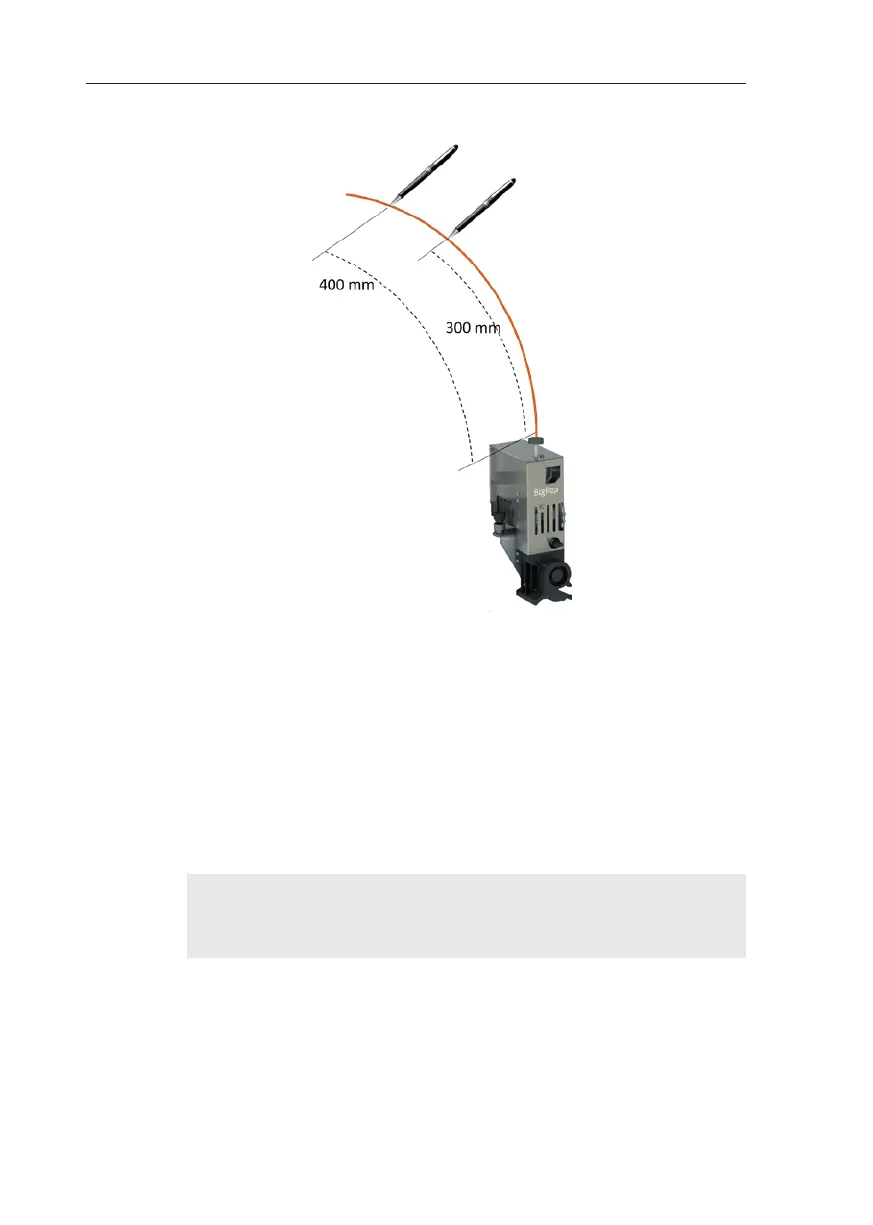

› Measure 300 mm and 400 mm from the upper end of the Teflon tube on
top of the extruder and mark both lengths with a pen
› Go to the Terminal Menu and type in:
T0 G91 G1 E300 F100 G90
› Click on Send. The extruder will extrude 300 mm.
› If the extrusion ends when the 300 mark reaches the Teflon tube, the ex-
truders flowrate is correct.
› If not, measure the dierence between the expected extrusion length and
the real length and save the correction on the Advance Menu.
& Chap. 5. Interface
› Repeat the test for T1, typing in:
T1 G91 G1 E300 F100 G90
If, for example, the extruder extrudes 260 mm instead of 300 mm:
300/260 = 1,15 --> The base flowrate should be increased 15% on the
advanced settings
