SKR CR6 V1.0 mannul SHENZHEN BIGTREE TECHNOLOGY CO., LTD.
7 / 8

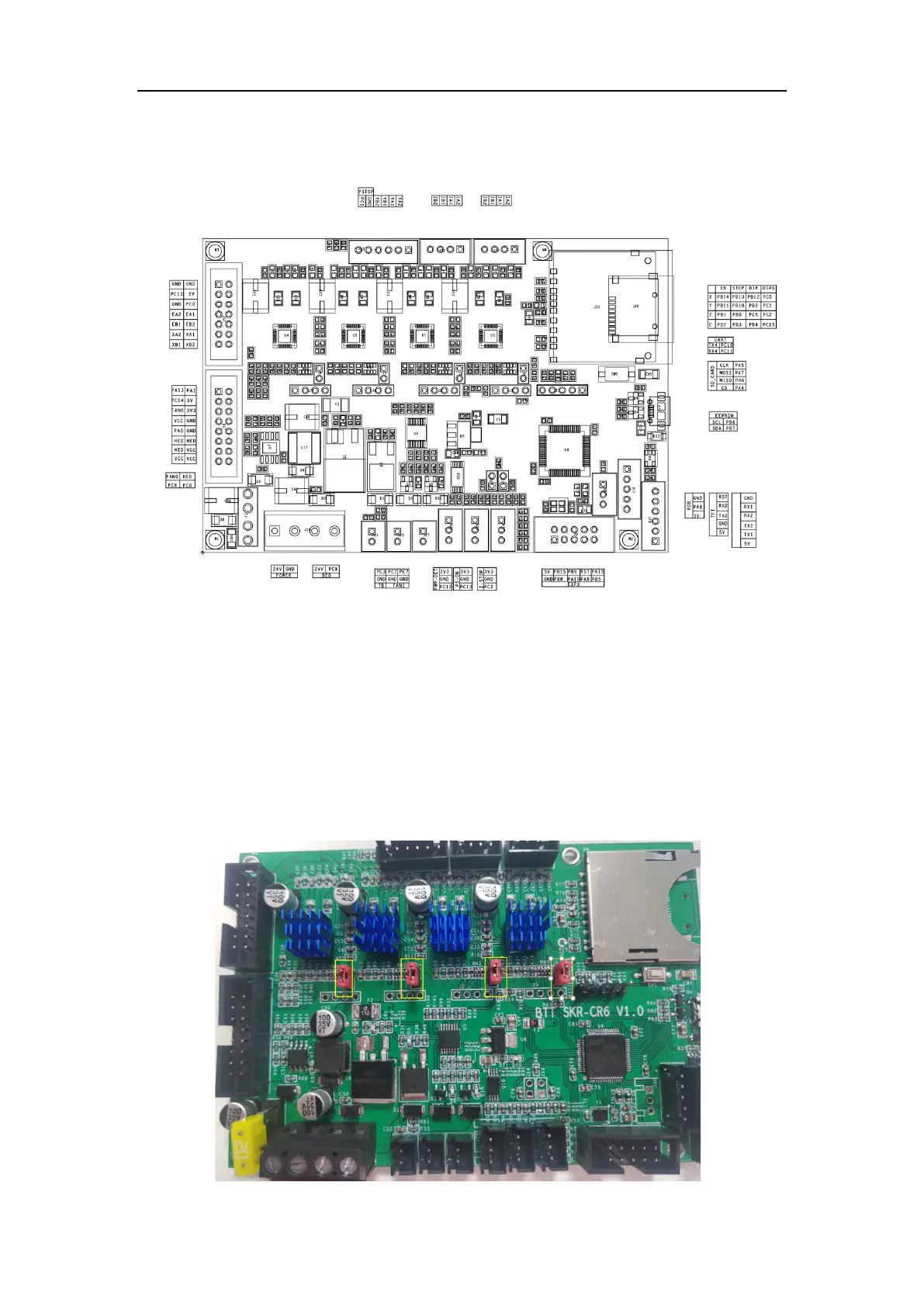

3. Motherboard Pin Diagram
For details, see Pin file information.
7.Motherboard jumper description
If you need the locked-rotor detection function, you need to short the following 4
positions with a jumper cap:
