6

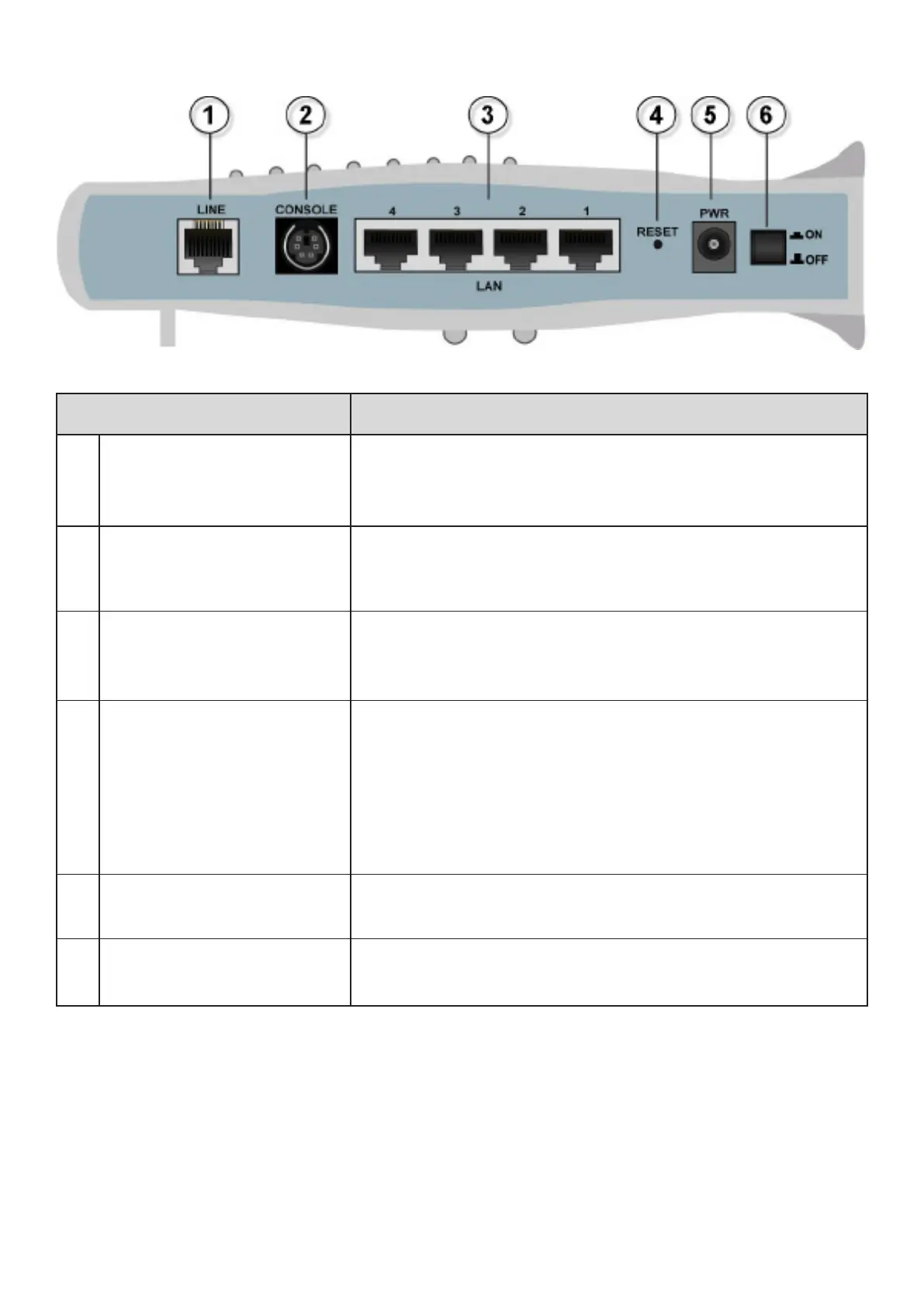

Rear Ports
Port Meaning
1
LINE
(RJ-11 connector)
Connect the supplied RJ-11 (“telephone”) cable to this port
when connecting to the SHDSL line.
2 CONSOLE
Connect a PS2/RS-232 cable to this port when connecting to
a PC’s RS-232 port (9-pin serial port).
3
LAN
1X - 4X
(RJ-45 connector)
Connect an UTP Ethernet cable (Cat-5 or Cat-5e) to one of
the four LAN ports when connecting to a PC or an ofce/
home network of 10Mbps or 100Mbps.
4 RESET
Press this button for 1-3 seconds at least to reset device to
restore the device to factory default settings.
Note: Be sure that the device is being turned on when
press Reset button.
(If you cannot login to the router or forget your Username/
Password, press this button for more than 6 seconds).
5 PWR Connect it with the supplied power adapter.
6 Power Switch Power ON/OFF switch.
