LAN - Local Area Network
A Local Area Network (LAN) is a shared communication system to which many computers are
attached together and is limited to the immediate area, usually within the same building or storey of
a building.
These are the items within the LAN section: Bridge Interface, Ethernet, IP Alias, Ethernet Client
Filter, Port Setting and DHCP Server.
Bridge Interface

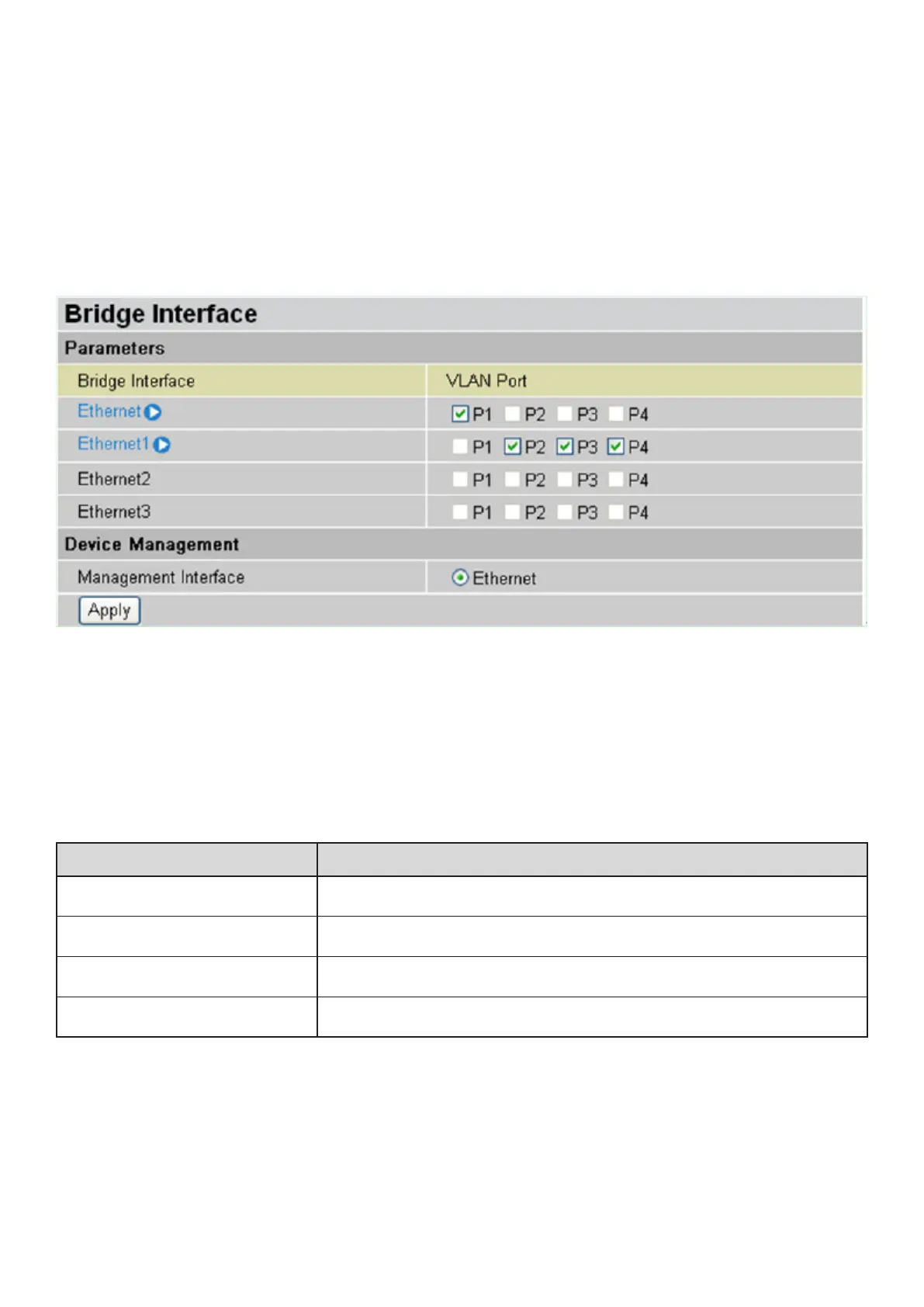

You can setup member ports for each VLAN group under Bridge Interface section. For example
shown as above, 2 VLAN groups need to be created.
Ethernet: P1 (Port 1)
Ethernet1: P2, P3 and P4 (Port 2, 3, 4). Uncheck P2, P3, P4 from Ethernet VLAN port rst.
Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in
this order.
Bridge Interface VLAN Port (Always starts with)
Ethernet P1 / P2 / P3 / P4
Ethernet1 P2 / P3 / P4
Ethernet2 P3 / P4
Ethernet3 P4
Edit Ethernet Interface Parameter
Click on a specic Ethernet you that you wish to edit its interface parameter under the Bridged
Interface section.
You can also edit the Ethernet Interface parameter such as its Acceptable Frame Type; Filter Type
or PVID for Untagged Frames. When the editing is complete, click Apply to save the changes and
then click Return to go back to the Bridged Interface page.
