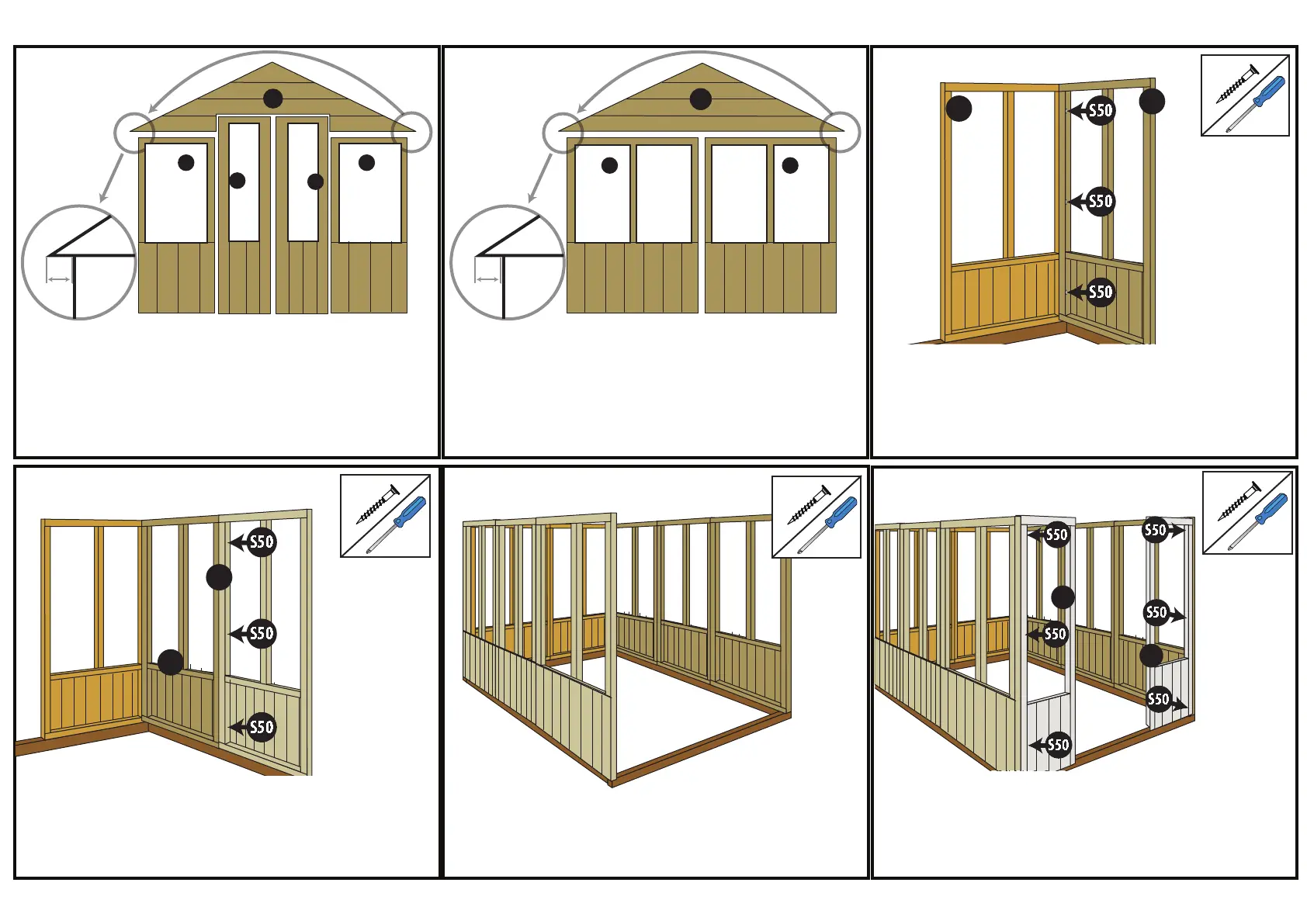

Billyoh APEX - Assembly Steps; Gable and Panel Assembly

2) PLAIN GABLE:
1) Layout PLAIN GABLE TOP (PG).
2) Find the WINDOW PANELS (WP) that t to complete the PLAIN GABLE (PGL & PGR) .
3) Place these parts to one side together.
NOTE: 1) The GABLE TOP extend over the WINDOW PANELS equal lengths.
A
PG
WPWP
1) DOOR GABLE:
1) Layout DDOOR GABLE Top (DG).
2) Layout the DOORS (D) in place.
3) Find the 1’6 (439.5mm) WINDOW PANELS (WP) that t to complete the DOOR GABLE (DG).
4) Place these parts to one side together.
NOTE: The DOOR GABLE (DG) extend over the WINDOW PANELS (WP) equally in length.
A
WPWP
D
D
A
A
A
A
VIEW FROM OUTSIDE
1’6” or 439.5mm
1’6” or 439.5mm
VIEW FROM OUTSIDE
DG
3’ or 879mm 3’ or 879mm
WP
WP
S50
S50
S50
50mm
Screws
Philips
Screwdriver
1) Pilot drill your screw holes (through the frame on the inside of the panel) in to the rear
WINDOW PANEL (WP) this will help to reduce wood splitting. This panel is part of your
PLAIN GABLE (GP)
2) Fix the rear WINDOW PANEL (WP) to your side WINDOW PANEL at the rear of the building
with 50mm screws (S50) through the frame on the inside of the panel.
NOTE: SCREW IN AT A SLIGHT ANGLE
NOTE: Do not attach the panels to the base at this point as it will make it very dicult to square up your
building later.
1) Pilot drill screw holes in to the frame on the inside of your rst side panel.
2) Fix your next side panel to your previous side panel with 50mm screws (S50) through
the frame on the inside of the panel.
NOTE: Do not attach the panels to the oor at this point as it will make it very dicult to square up your
building later.
WP
WP
S50
S50
S50
50mm
Screws
Philips
Screwdriver
1) Continue xing the panels together in the same manner as before: pilot drill holes and x
together with 50mm screws (S50), until all side panels are erected.
NOTE: Do not attach the panels to the oor at this point as it will make it very dicult to square up your
building later.
S50
S50
S50
S50
S50
WP
WP
1) Pilot drill screw holes in to the inside of the frame of the DOOR GABLE (DG) WINDOW
PANELS (WP).
2) Fix these two DOOR GABLE (DG) WINDOW PANELS (WP), between the side panels, with
50mm screws (S50) through the frame on the inside of the panel.
NOTE: Do not attach the panels to the oor at this point as it will make it very dicult to square up your
building later.
6) ERECTING FRONT GABLE (1):
5) ASSEMBLING THE PANELS (3):
4) ASSEMBLING THE PANELS (2):
3) ASSEMBLING THE PANELS (1):
50mm
Screws
Philips
Screwdriver
S50
50mm
Screws
Philips
Screwdriver
