Billyoh APEX - Glazing; Fixing Roof Panels; Glazing the Doors; Fixing the Inner Turnbutton

S45
S45

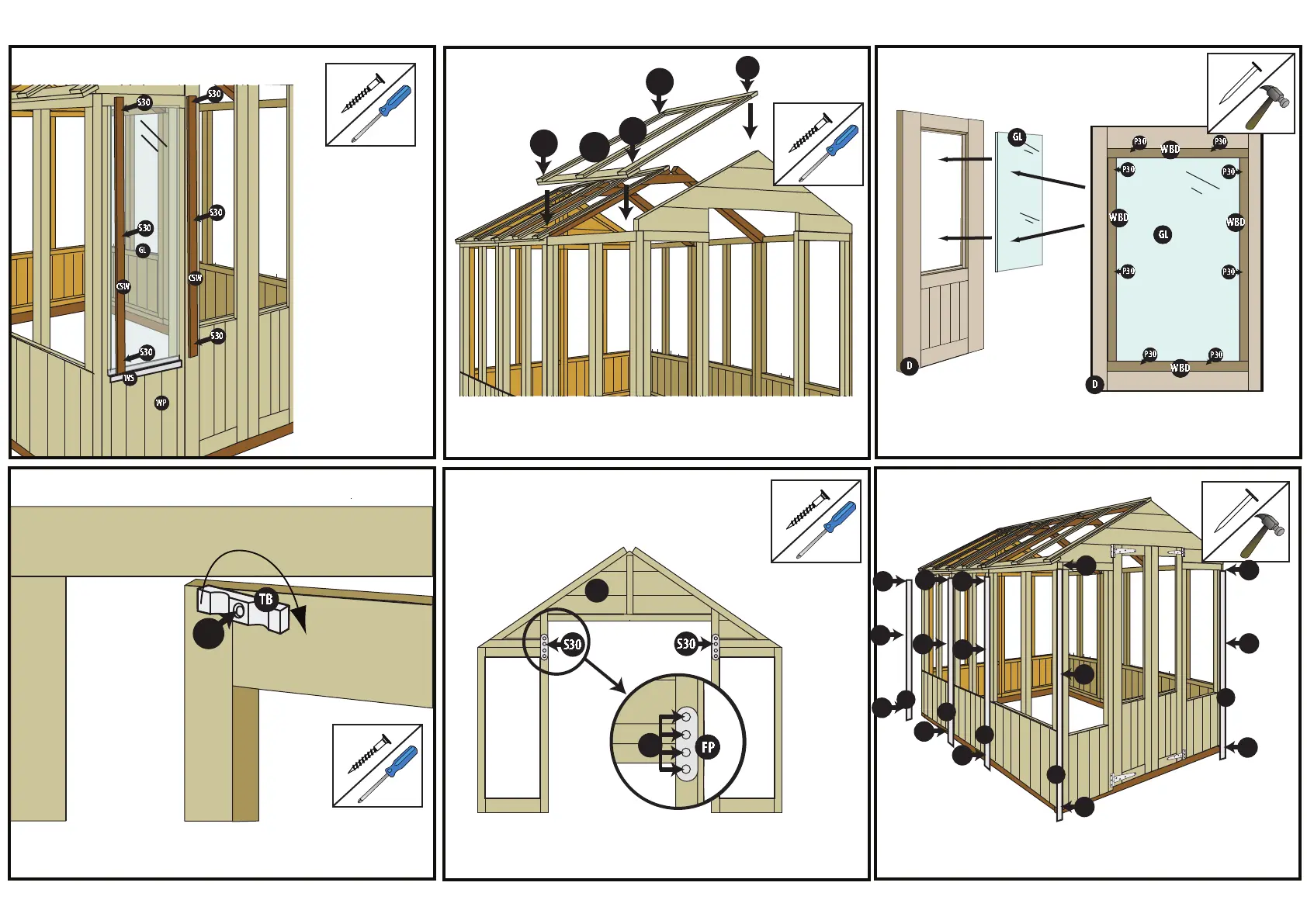

Fix a TURN BUTTON (TB) to the inside of the top of the SLAVE DOOR with a 25mm screw
(S25). Make sure that the TURNBUTTON (TB) does not impede the door opening when
adjusted.
INSIDE OF
SLAVE DOOR
INSIDE OF
MASTER DOOR
S25
TB
INSIDE OF
DOOR PANEL
22) FIXING THE INNER TURNBUTTON:
25mm
Screws
Philips
Screwdriver
WS
WP
GL
19) GLAZING (2): (Styrene or Polycarb)
1) Hold the GLAZING (GL)
panes in place and x a
WINDOW CLOAKING STRIP
(CSW) over the ends of
the GLAZING (GL).
2) Use 30mm screws (S30)
to x the WINDOW
CLOAKING STRIP (CSW) to
the WINDOW PANEL (WP).
3) When two GLAZING (GL)
panes are in place x a
WINDOW CLOAKING STRIP
(CSW) over the gap between
the GLAZING (GL) and one
more at the end of the panel.
4) When the two centre
GLAZING (GL) panes are in
place cover the gap between
them both with another
WINDOW CLOAKING
STRIP (CSW)
30mm
Screws
Philips
Screwdriver
S30
S30
S30
S30
S30
S30
CSW
CSW
Place the ROOF FRAMES (RFR) on to the top of the four sides and x them down with
50mm screws (S50). The opening roof vent has 3 glazing sections and xed roof has
2 glazing sections. At this stage you can decide where these go.
S50
RFR
S50
S50
S50
50mm
Screws
Philips
Screwdriver
20) FIXING ROOF PANELS:
PG
Note: Do not use excessive force as the GLAZING (GL) is brittle and may crack.
1) Place the door GLAZING (GL) into the window recess from the OUTSIDE of the door
and x it to the door by using WINDOW BEADING (WBD) and 30mm panel pins (P30).
300mm
300mm
21) GLAZING THE DOORS: (Styrene or Polycarb)
P30
P30
P30
P30
P30
P30
P30
P30
WBD
WBD
WBD
WBD
GL
D
D
D
GL
50mm
Screws
30mm
Pins
Hammer
S45
S45
30mm
Screws
Philips
Screwdriver
DG
INSIDE VIEW
S30
S30
S30
Use 30mm screws to x a FIXING PLATE (FP) to each of the uprights on the DOOR GABLE
where the gable topS joins the lower panels.
23) SECURING THE DOOR GABLE:
FP
S45
24) FIXING THE COVER STRIPS:
Fix CLOAK STRIP PANEL (CSP) where the corners of the building meet and where each of
the WINDOW PANELS (WP) join with 30mm nails (N30). This may need cutting to size.
Tip: Use a silicon sealant on all joining panels to make water tight.
Tip: Blunt the nail tips to help prevent wood splitting.
50mm
Screws
30mm
Nails
Hammer
CSP
CSP
CSP
CSP
CSP
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
N30
