Binder KBF 115 (E5.2) - Type Plate

KBF / KBF P (E5.2) 02/2012 page 13/103

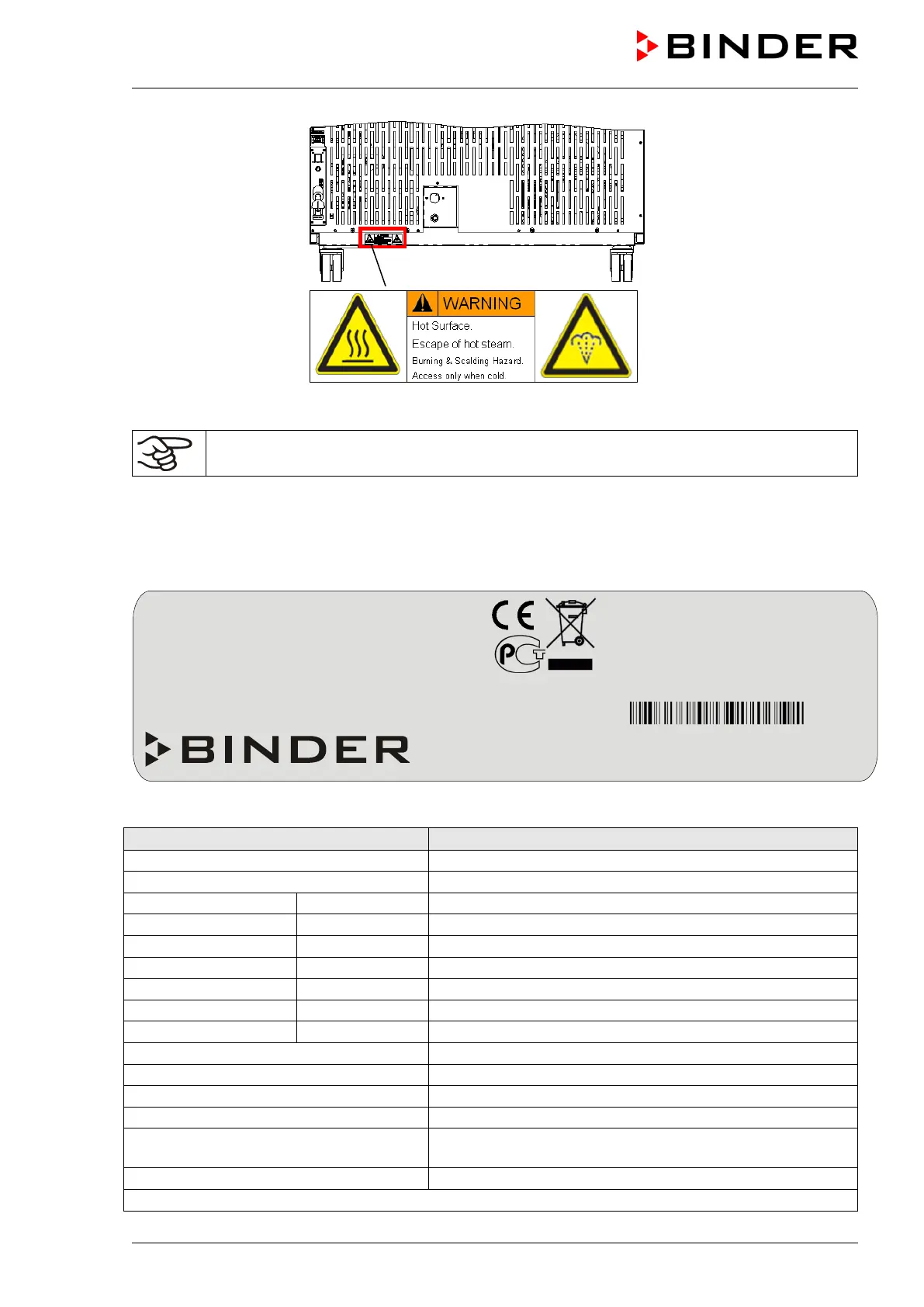

Figure 3: Position of labels on the unit rear
Keep safety labels complete and legible.
Replace safety labels that are no longer legible. Contact BINDER Service for these replacements.
1.4 Type plate
Position of type plate: left unit side (seen from front), at the bottom right-hand.
Figure 4: Type plate (example of KBF 240 regular unit)
Indications on the type plate
Information
BINDER
Manufacturer: BINDER GmbH
KBF 240
Model KBF 240
Serial No.
00-00000
Serial No. 00-00000
Nominal temperature
70 °C / 158 °F
Nominal temperature
Enclosure protection
IP 20
IP type of protection 20 acc. to EN 60529
Temp. safety device
DIN 12880
Temperature safety device acc. to standard DIN 12880
Class
3.1
Temperature safety device, class 3.1
Art. No.
9020-0150
Art. No. 9020-0150
Project No.
---
(Special application acc. to project no.)
2,10 kW
Nominal power 2.10 kW
200-240 V 1 N ~
Nominal voltage 200-240 V (+/-10%), single-phase unit
9,5 A
Nominal current 9.5 Amp
50/60 Hz
Power frequency 50/60 Hz
Max. operating pressure 15 bar
Max operating pressure 15 bar / 218 PSI in the refrigerating
system
R 134a – 0,17 kg
Refrigerant type R 134 A, filling weight 0.17 kg / 0.37 lbs
Contains fluorinated greenhouse gases covered by the Kyoto Protocol
Nominal temperature
70 °C
2,10 kW
Max. operating pressure 15 bar
158 °F
200-240 V 1 N ~
R 134a – 0,17 kg
Enclosure protection
Temp. safety device
IP 20
DIN 12880
9,5 A
50/60 Hz
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
Class
3.1
Art. No.
9020-0150
US PATS 4585923 / 5222612 / 5309981
Project No. 5405194 / 5601143 / 5773287 / 6079403
D 78532 Tuttlingen / Germany
Tel. + 49 (0) 7462/ 2005-0
Internet: www.binder-
ld
KBF 240 Serial No. 00-00000
Made in Germany
