KBF / KBF P (E5.2) 02/2012 page 25/103
4. Installation and connections
4.1 Spacers for rear wall distance
Please fix both spacers with the supplied screws at the unit rear. This serves to ensure the prescribed
minimum distance to the rear wall of 100 mm / 3.94 in.

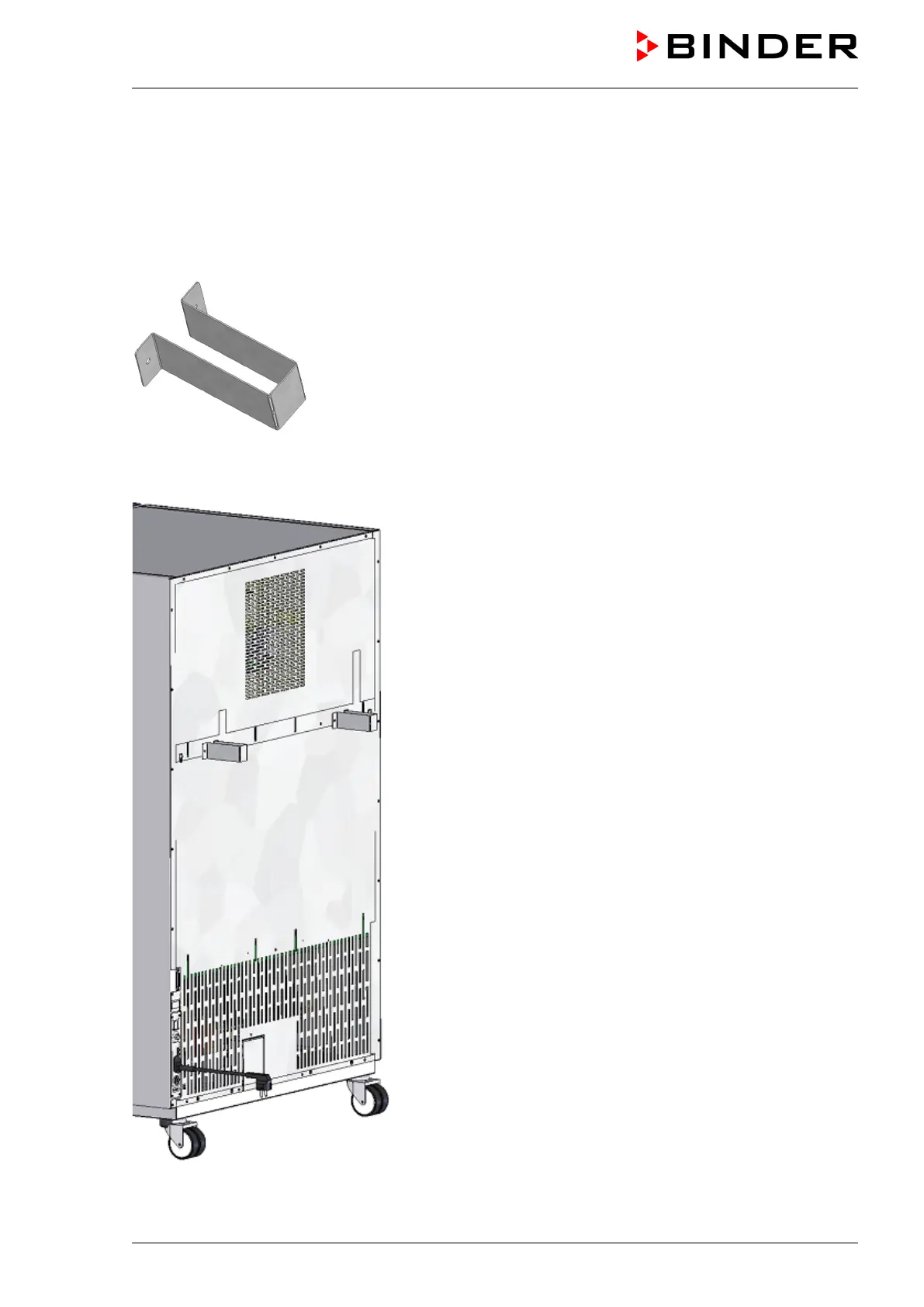

Figure 9: Spacer for rear wall distance
Figure 10: Rear KBF / KBF P
with mounted spacers
