2.3 Lateral control panel
(1)
(4a)
(4b)
(5)
(7)
(9)
(3)
(5a)
(8)
(1)
(4a)
(4b)
(5)
(7)
(9)
(3)
(5a)
(8)
(11)
MK 56 MK 115 / 240 / 720

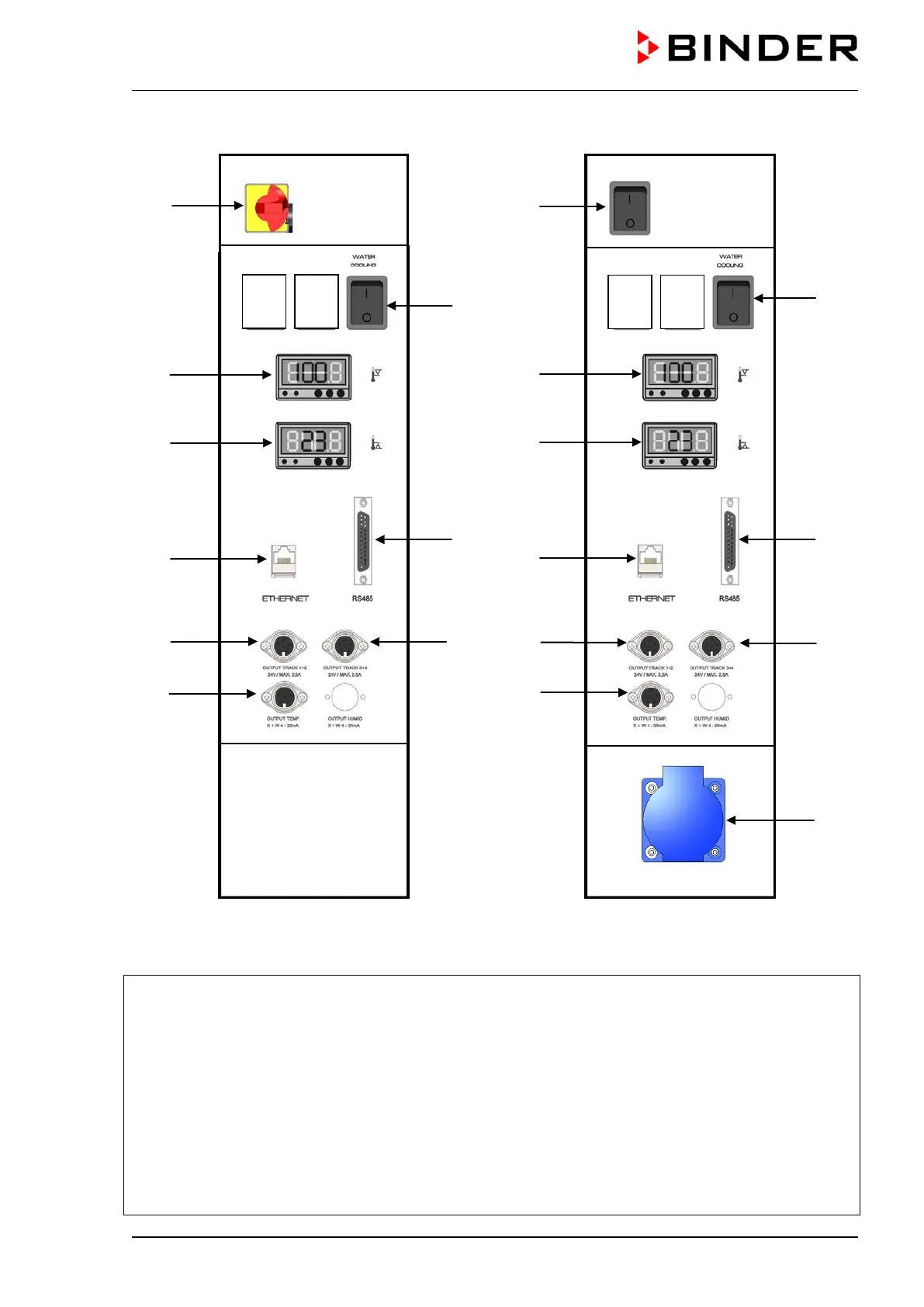

Figure 5: Lateral control panel at the right side of the refrigerating machine, with options
(1) Main power switch On/Off
(2) not used
(3) Switch for water cooling (option for MK 56, for
other chambers available via BINDER Individual
Customized Solutions)
(4) Temperature safety device class 2 for over and
under temperature (option):
Entry displays for upper (4a) and lower (4b)
temperature limit
(5) Ethernet interface for computer communication
(5a) RS485 interface for computer communi-
cation (option)
(6) not used
(7) 2 zero-voltage switching outputs via op-
eration lines (MKT, option with MK))
(8) 2 zero-voltage switching outputs via op-
eration lines (MKT, option with MK)
(9) Analog output for temperature (option)
(10) not used
(11)
Socket 230 V AC, max. 500 W (MK/MKT
115, 240, 720)
