VAP 1 / VAP 2 06/2020 Page 17/52
2.1 Device overview

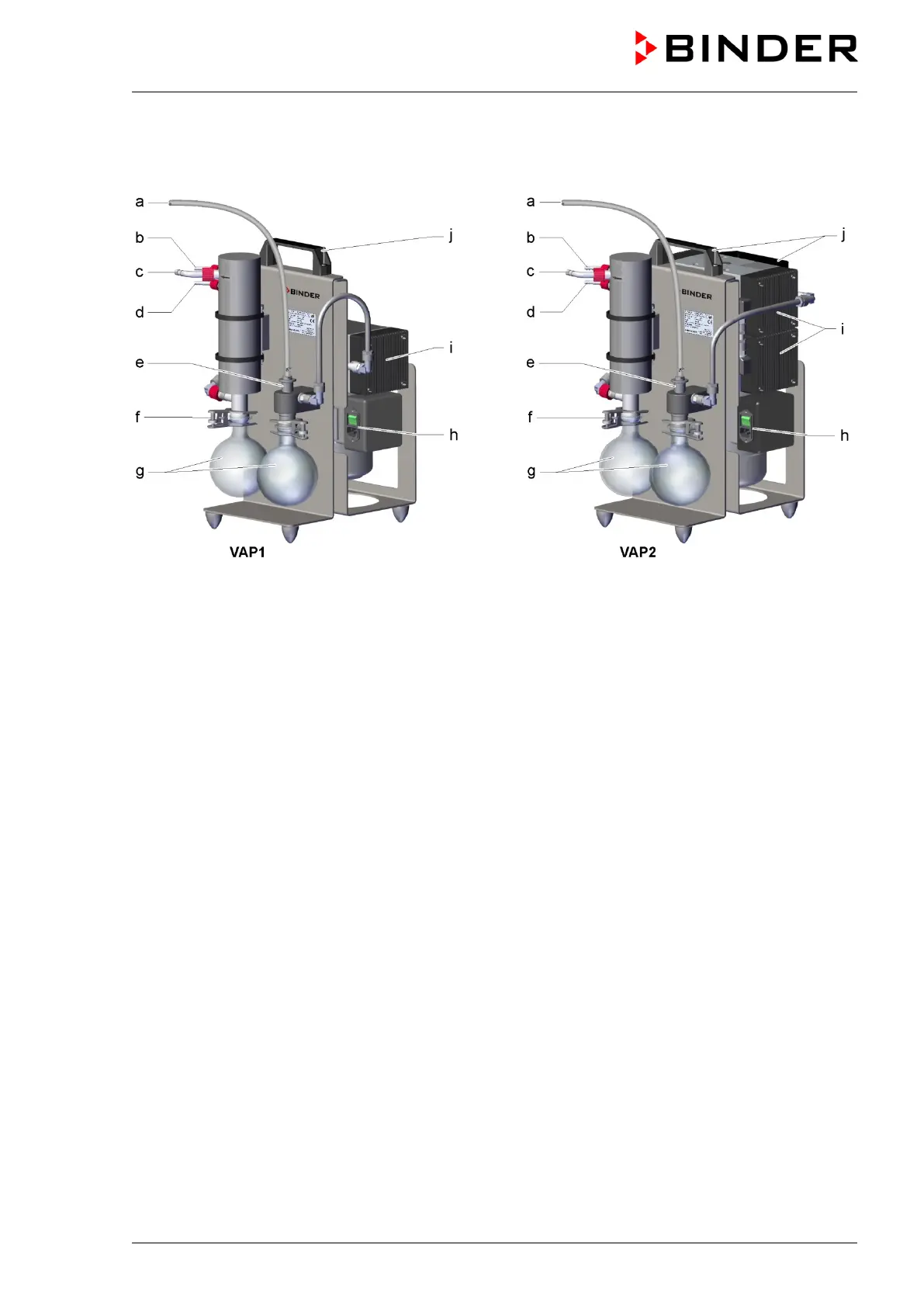

Figure 4: Vacuum pump VAP 1 / VAP 2
(a) Tube to the VD vacuum drying oven
(b) Water connection for cooling IN or OUT
(c) Pressure connection
(d) Water connection for cooling IN or OUT
(e) Aspiration connection
(f) Fork clamp
(g) Condensate catchpot
(h) On/Off switch (main power switch) with power connection
(i) Pump unit
( j) Handle
