VAP 1 / VAP 2 06/2020 Page 19/52
Note on second-hand devices (Ex-Demo-Units):
Second-hand devices are devices that were used for a short time for tests or exhibitions. They are
thoroughly tested before resale. BINDER ensures that the device is technically sound and will work
flawlessly.
Second-hand devices are marked with a sticker. Please remove the sticker before commissioning the
device.

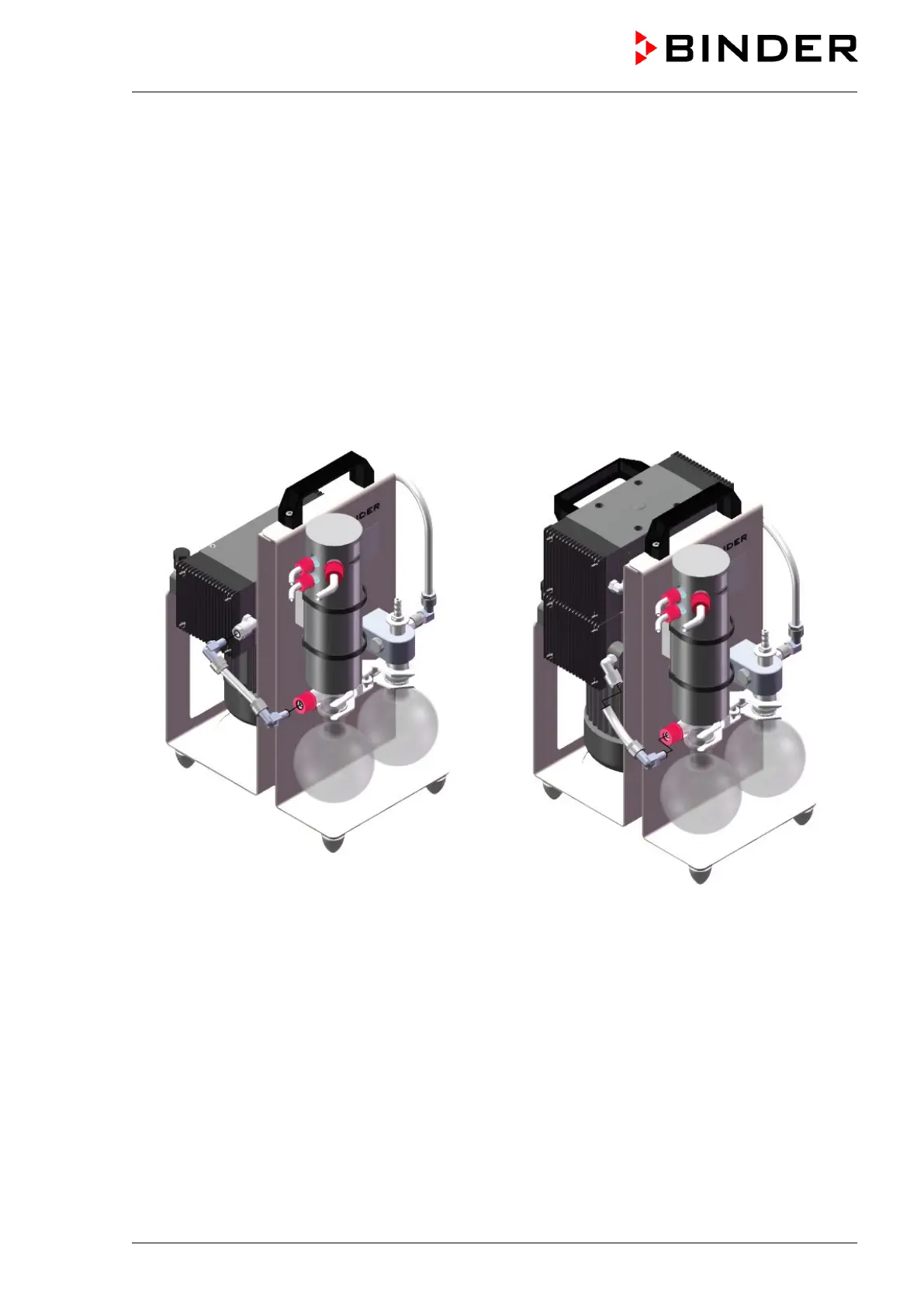

3.3 Assembly
Emission condenser
Fix the emission condenser with 2 fastening straps on the front bracket on the pump: Push the ends of
the straps together up to the maximum locking point so that the emission condenser is securely attached
Insert the pneumatic connection (PTFE tube with 2 angle adjustment screws) into the screw connection of
the pump as far as possible.
Figure 6: Assembling the pneumatic connection
Condensate catchpots
Put one of the condensate catchpots at the end of the emission condenser and fix it with a fork clamp
(conical ground clamp). Use the knurled screw to tighten the fork clamp until the end stop.
Put the other condensate catchpot to the connection adapter of the suction connection and fix it with a
fork clamp (conical ground clamp). Use the knurled screw to tighten the fork clamp until the end stop.
Hose nozzle (if desired)
Screw the hose nozzle DN 8 on the G 1/4‘‘thread of the suction connection DN 16 KF.
