VAP 1 / VAP 2 06/2020 Page 21/52
Ambient conditions
• Permissible ambient temperature range for operation: +18 °C / 64.4 °F to +30 °C / 86 °F
• Permissible ambient humidity: 70 % r.h. max., non-condensing.
• Installation height: max. 2000 m / 6561.7 ft. above sea level.
Distances
• Wall distances: rear 100 mm / 3.94 in, sides 50 mm / 1.97 in.
• For cooling the pump, keep a free distance of at least 20 mm / 0.8 in m neighboring parts or the walls
of the pump module.
Other requirements
• To completely separate the device from the power supply, you must disconnect the power plug. Install
the device in a way that the power plug is easily accessible and can be easily pulled in case of danger
• Avoid any conductive dust in the ambiance according to the chamber layout complying with pollution
degree 2 (IEC 61010-1).
4. Installation and connections
Remove the protective caps on the suction and pressure connections. Keep them for later use (e.g.
storage, return).
4.1 Vacuum connection
To establish the connection to the VD vacuum drying oven, BINDER recommends the VD connection kit
for VAP1-VAP2 (option, Art. no. 8012-1995).

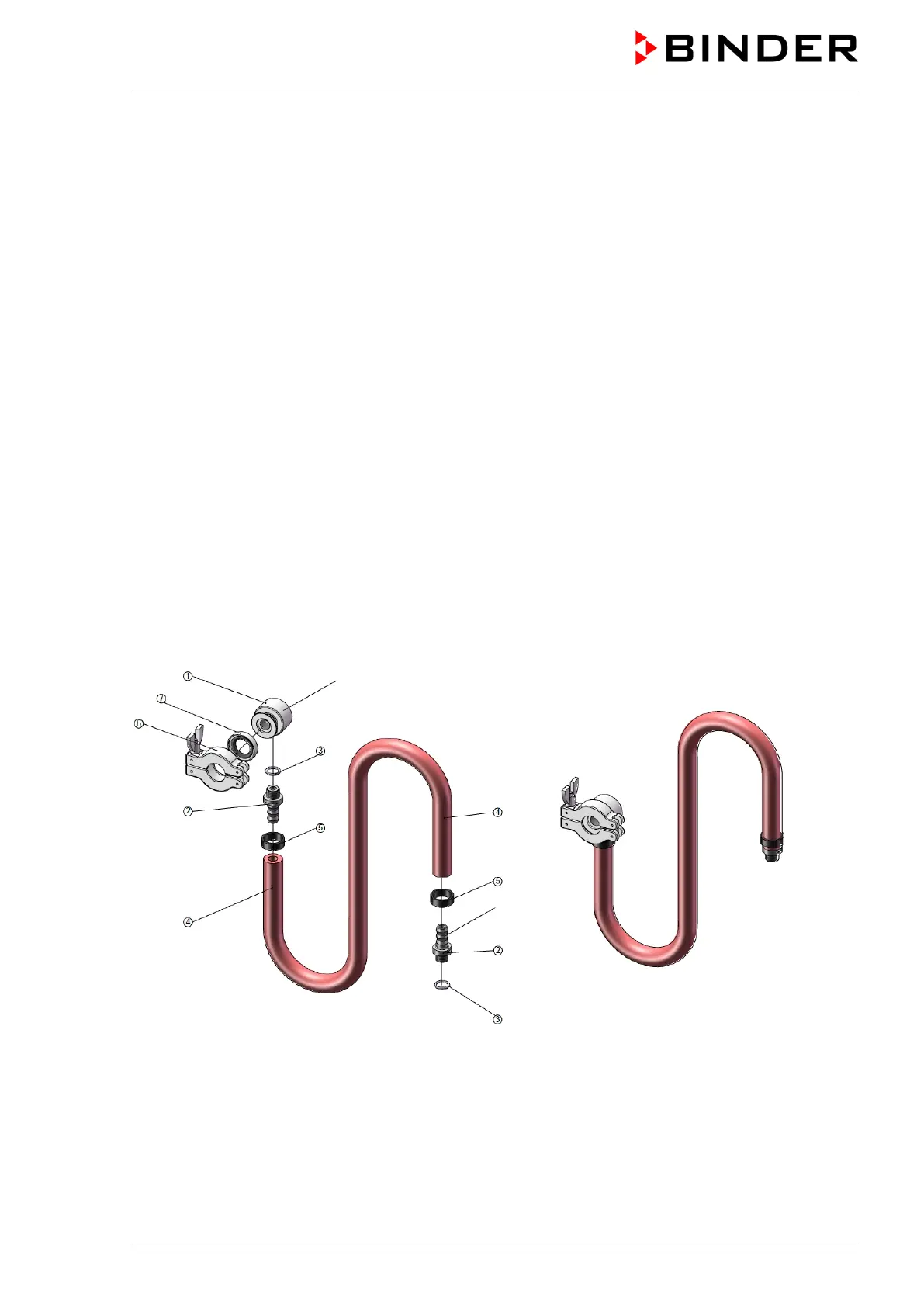

Figure 7: Connection kit
Connecting small flange with angle DN 16 KF G
1/4‘‘ inner thread
Hose nozzle DN 10
2 x O ring
Vacuum hose 20/10
2 x clamping ring DN 10/16
External centering ring DN 10/16
A Connection to VD
