VD (E3.1) 03/2020 page 29/173
The connection is established via PIN 6 and PIN 7.
A 1.2 m cable with fitting plugs is enclosed.

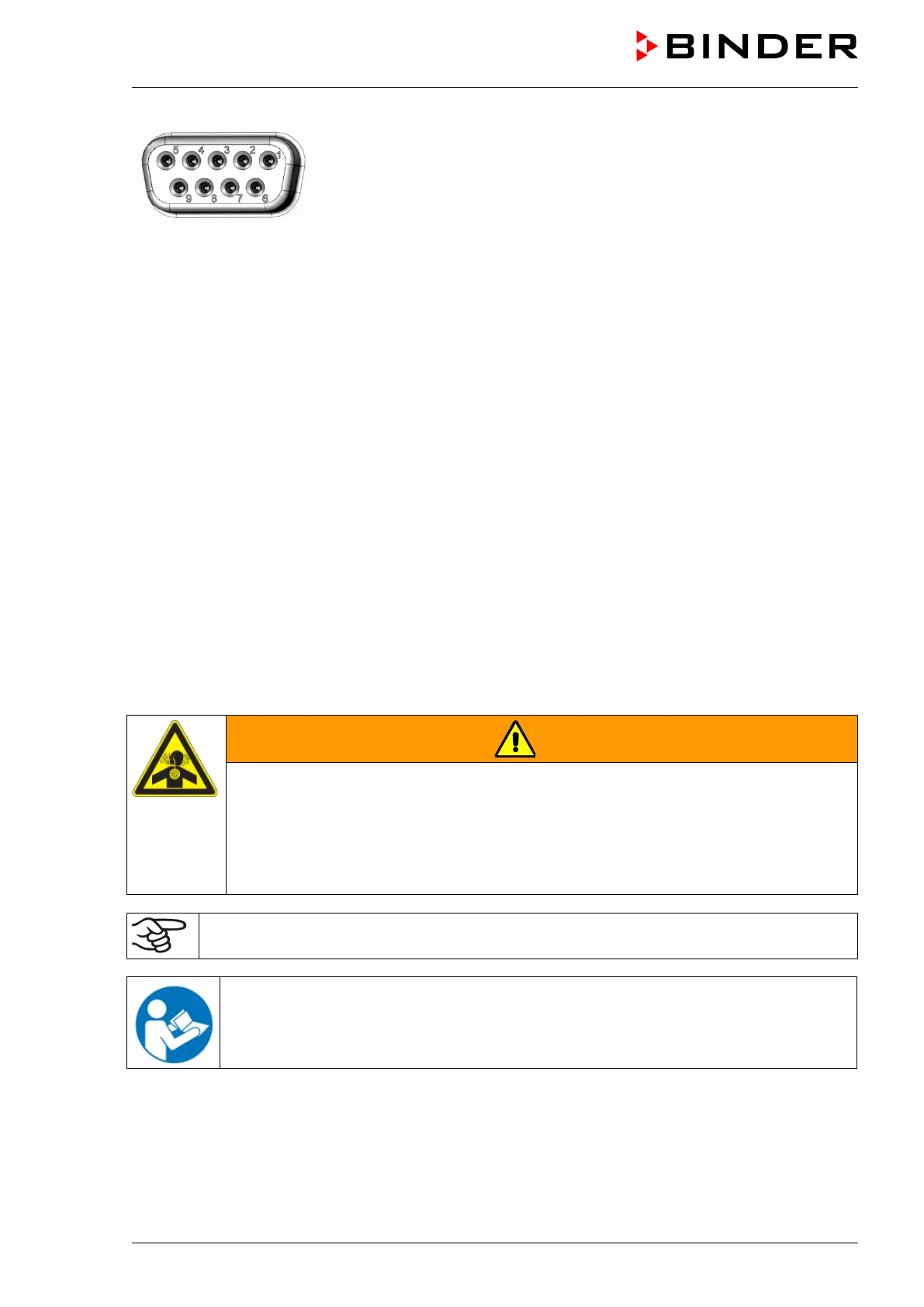

Figure 13: Pin configuration of the SUB-D socket “Pump module” (8) to switch on/off the pump module
socket
Installation of the supplied vacuum pump
• The vacuum drying oven is mounted onto the pump module as described in the mounting instructions
Art. No. 7001-0137.
• The suction line to the pump module is installed as described in the mounting instructions Art. No.
7001-0137.
• When the pump is removed from the original packaging, place it in the pump module.
• Push the pre-installed suction line onto the opening of the vacuum pump (hose olive above the
suction-side condensate piston).
• Insert the shockproof plug of the vacuum pump into the permanently installed socket (17) in the pump
module.
• Push a suitable hose for removing the extracted vapors from the pump module onto the pressure-side
connection of the vacuum pump (hose olive at the back of the emission condenser at the top).
• Lead the hose end into an exhaust air unit.
• Connect SUB-D socket (14) at the pump module to SUB-D socket (8) in the VD rear control panel via
the supplied 1.2 m cable.
Extracted vapors and the inert gas used if necessary can have a health-endangering and / or corrosive
effect on the chamber and the pump.
WARNING
Danger of injury by release of extracted vapors.
Corrosion on the chamber and the pump. Damage to health.
Remove the extracted vapors from the pump module via a suitable hose into e.g., a
fume extractor facility.
Connect the hose to the vacuum pump outlet (hose olive at the back of the emission
condenser at the top).
You can connect a laboratory cooling system to the emission condenser of the vacuum pumps
VAP 1 / VAP 2.
For operating the vacuum pumps VAP 1 / VAP 2, please refer to the enclosed pump
manufacturer's operating manual.
